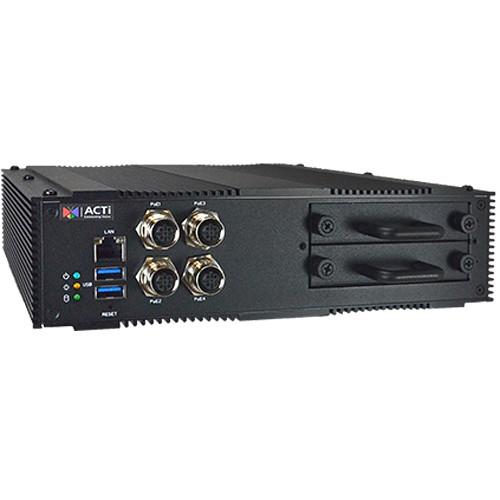

Product description The MNR-111P 4-Channel 2-Bay Transportation NVR from ACTi is specially designed for mobile vehicle surveillance. The NVR helps centralize the storage of up to four channels of video. When the vehicle approaches its depot, recorded videos can automatically be uploaded to the station's management system server over Wi-Fi. The MNR-111P exports video in raw or AVI formats using H.265, H.264, and MJPEG compression. - Manages up to four cameras or video encoders
- Includes two RJ45 non-PoE ports and four M12 PoE ports
- Ruggedized design with 2-bay removal tray
UPC: 888034010635 In the Box ACTi MNR-111P 4-Channel 2-Bay Standalone Transportation NVR with Four M12 PoE Ports (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi MNR-111P 4-Channel 2-Bay Standalone Transportation NVR with Four M12 PoE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi MNR-111P Specs | | | Maximum Number of Devices | 4 | | CPU | Hi3536 | | Dual Stream | Records dual streams, live view from one of them | | Maximum Resolution | 12 MP | | Video Compression | H.265, H.264, and MJPEG | | Audio Compression | G.711 (U-Law, A-Law) and PCM (support Record / Live View / Playback) | | Maximum Number of Clients | 1 x local
2 x remote
1 x mobile client | | Fisheye Dewarp Mode | Modes: Original, Dewarping, Panorama, Double Panorama, Panorama Focus, and Quad
Mounting: Wall, Ground, Ceiling, and Corner
Setting: Angle of Installation, Tilt, Rotation, and Calibration | | Licenses Included | 4 | | | | Display Layout Mode | Custom dynamic layout by grid merging | | Resolution | Local: 2 MP (1920 x 1080)
Remote: Depends on the resolution of the client PC monitor
Live View: VGA at 60 fps, 720P at 60 fps, 1.3M at 60 fps, 1080P at 60 fps, 3M at 60 fps, 4M at 60 fps, 8M at 45 fps, 12M at 30 fps | | Integration | Metadata overlap on video (Position / Dwell time / Font and Color / Motion event alarm), event, and thumbnail overlay display | | Synchronized Playback | Quick switch between playback and live view of each channel
Playback recording in one channel while others are still on live streaming | | Device Management | Camera Setup/Search/Add (ACTi, ONVIF), Associate AC, Network DIO Device with Camera, Local Storage Management | | Layout Tour | Automatic switch between different display layouts | | Digital Zoom | Zoom in/out digitally by mouse scroll wheel or by zoom control buttons | | 2-Way Audio | Yes | | | | Playback Control | Play forward and backward with speeds x2, x4, x8, x16, x1/2, x1/4, x1/8, and Pause | | Video Search | By event, recording thumbnail, and bookmark | | Synchronized Playback | Up to 4 channels | | Playback Rate | Local and Remote: 60 fps | | Video Clip Length | Local: 1-30 min
Remote: 1-1440 min | | Video Export | RAW, AVI | | | | Source | Video: Dual stream of camera
Audio: Audio in from camera or local audio device | | Maximum Camera Resolution | 4000 x 3000 | | Scheduled Recording | Record video with user defined schedule (regular and specific schedule)
Auto recycling by video ageing and user settings (reserved days: 1-999) | | Event Recording | Record video when event is triggered | | Manual Recording | Instant recording upon mouse click | | Event Speed-Up Recording | Record full frames when event happens, otherwise record one frame | | Record Frame Rate | Maximum 240 fps total | | Maximum Recording Throughput | 300 Mb/s | | | | Network Protocols and Services | IPv4/v6, TCP, UDP, DHCP (Server/Client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, LDAP (client) | | Ethernet Port | 2 x RJ45 non-PoE ports (1000Base-T)
4 x M12 PoE ports (10/100Base-T) | | | | HDD Bay | SATA, maximum two disks | | Max HDD Size | 2.5" | | Recording Capacity | 2 x 1 TB | | Supported Storage | Video Recording: SATA disk, iSCSI | | | | Control | Continuous pan, tilt, and zoom with speed control, focus mode setting (auto/manual) | | Zoom | Local: Zoom in/out optically or digitally by control buttons
Remote: Zoom in/out optically or digitally by mouse scroll wheel or control buttons | | Preset Points and Tours | Add, go to, delete, and replace | | Operation | Joystick, virtual joystick, and mouse | | Protocol Support | ACTi or ONVIF | | | | Event Trigger | Local:
System Event: Storage access error, No recording device found, S.M.A.R.T test failed
Camera event: Motion/Sound detection, Video loss/recovery, Event from ACTi analytics camera, External device through digital input
Remote:
Show event status on the Events panel | | Event Response | Local:
Play alert beep, Activate external device through digital output, E-mail notification with snapshots and messages, Start and stop recording, Push notification, Go to PTZ preset point
Remote:
Pop-up and enlarge event-caused channel | | Handling | Event Handling Scheduler: Regular and specific scheduler | | | | Permission Control | Unlimited number of users | | Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1 | | USB | 4 x USB 3.0 | | | | Unified Solution | Fully compatible with ACTi cameras, encoders, and intelligent video surveillance software | | ONVIF | Profile S and G compliant | | Web Browser | IE 11 | | Integration | Network DIO: Advantech Adam 60xx I/O Modbus TCP Module
Access Control: HID VertX 1000
Wi-Fi: Advantech EWM-W161H01E | | | | Serial Port | 2 x RS-232 | | Wireless | 2 x mini-PCIe slot for optional wireless modules such as Wi-Fi (IEEE 802.11b/g/n), 4G, and GPS | | Digital Input/Output | 2/2 | | External Storage Interface | iSCSI | | Access | USB keyboard and mouse | | Display Interface Options | 1 x HDMI
1 x VGA | | | | PoE | Output: Maximum 10.08 W per port
Power Budget: Maximum 40 W | | Power Source | 9 to 36 VDC | | Remote Access | Web Client, Mobile Client | | Approvals | CE, FCC, EN50155 | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 10.7 x 2.8 x 9.4" / 27.1 x 7.2 x 23.9 cm | | Weight | 7.17 lb / 325 g |
