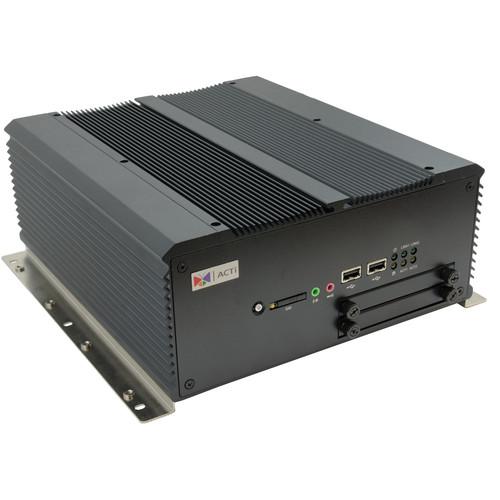

Product description The MNR-330P 16-Channel 1-Bay Transportation NVR from ACTi lets you manage up to 16 cameras or video encoders. It supports recording on up to 16 channels and integrates with POS systems, access control devices, and network I/O devices. It also supports one local and up to five remote clients. With the MNR-330P, you can export videos in RAW or AVI formats. For compression, the NVR utilizes H.265, H.264, MPEG-4, and MJPEG formats. -
- Up to 9 channels of synchronized playback on local and up to 16 channels of remote playback
- Supports event trigger, response, and notification
- Can be used with mobile client, web client, or workstation
- Location-based management with e-Map
- 16 free camera licenses included
- Non-ACTi camera support via separately available licensed Camera Device Pack
- Four built-in PoE ports
In the Box ACTi MNR-330P 16-Channel 1-Bay Transportation NVR with 8GB RAM GPS Antenna 2 x Terminal Block Disk Screws 16 x ACTi Video Licenses Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi MNR-330P 16-Channel 1-Bay Transportation NVR with 8GB RAM in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi MNR-330P Specs | | | Maximum Number of Clients | 1 local, 5 remote | | Maximum Number of Cameras | 16 | | POS Device | 16 maximum | | Device Connectivity | 16 maximum | | License | License for 16 cameras included | | Compression | H.265, H.264, MPEG-4, MJPEG | | Local Display | 1920 x 1200 maximum | | Analytics | Shock detection with built-in G-sensor | | | | Display Layout Mode | 1, 4, 5, 6, 8, 9, 10, 12, 16 | | View Manager | An interface to define display layouts and the pre-set cameras within layout in the public or private view | | View Patrol | Automatic switch between different views or devices | | View Panel | Contains the list of pre-defined views for quick launch | | Digital Zoom | Zoom in/out digitally by mouse scroll wheel or by zoom control buttons | | Camera Tree | Drag and drop video source from camera tree into display layout; display camera status on the tree | | Manual Recording | Manual instant recording upon mouse click / Instant snapshot upon mouse click or hot key | | Event Panel | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full or Point-of-sale (POS), Access control, and Network I/O status | | Two-Way Audio | Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time | | Multi-Streaming | Live view of stream 1, stream 2, or stream 3 of miulti-stream devices | | Instant Playback | Instant playback in live view window | | Control Access | Display and connect to pre-configured embedded website | | | | Layout | Area maps with camera icons, small live view windows; hyperlinked | | Type | Google Maps; Static Map (JPG image) | | Setup | e-Map image upload; Google maps settings and preset management; camera positioning; vision angle and pointed direction of camera; view positioning; source positioning; extended devices for point-of-sale (POS), Access control and Network I/O | | PTZ Mode | Mouse PTZ mode to control e-Map video streams | | | | Control | Pan, tilt, and zoom controls; speed control; both buttons and mouse controls | | Preset Points and Tours | Create preset points; create auto tours between preset points | | Number of Preset Points | 32 | | Joystick | USB-based joystick supported | | Default Protocol | Auto-detect camera's PTZ protocol
Available Protocols: ACTi, Pelco P, Pelco D, Dynacolor, Visca | | | | Maximum Recording Throughput | 192 Mbps | | Scheduled Recording | Record video with user-defined schedule | | Event Recording | Record video when the alarm event is triggered, including the pre-event buffered video clip | | Speed | Speed Up: Different recording frame rate settings for non-event and triggered event | | Manual Recording | Instant recording upon mouse click | | Recording | Pre-Event:
User-defined time period to record before event occurs, and the maximum buffer is 60 seconds (default 5 seconds)
Post-Event:
User-defined time period to record after event occurs, and the maximum buffer is 3600 seconds (default 30 seconds) | | Multi-Streaming | Recording of stream 1, stream 2, or stream 3 of multi-stream devices | | Recording Frame Rate | Maximum 960 fps total
Maximum 30 fps per camera | | | | Interface | Serial ATA | | HDD Bay | 1 | | RAID Level | Software RAID 0, 1 | | External Storage | Supports USB storage | | | | Recording Search Method Type | Search video recordings by time, events (motion, DI, Video Status, Network Status, Manual Recordings, extended device status, event confirm status with invalid or valid), channel, bookmark, notification and listed as clickable time-based thumbnails for full-size view and snapshot download | | Smart Search | Smart search of recorded video by motion detection and tamper | | Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame; pause; stop | | Synchronized Playback | Up to 9 channels for local display; up to 16 channels for remote client | | Snapshot | Manual instant snapshot from playback upon mouse click | | Digital Zoom | Zoom in/out digitally by PiP (picture-in-picture) | | Cropping | Crop a short video clip from long recording file and save it as an independent file | | Video Export | Export video clips in EXE, AVI, or RAW format; text overlay and Point-of-sale (POS) transaction data supported | | | | Event Trigger | NVR:
Disk full
Disk not found
Disk is available
Schedule service start/stop, Video Push start/stop, CPU limit exceeded
Video Device:
Video motion detection
Passive IR sensor
External device through digital input
Sound detection
Intelligent event detection
Video Push start/stop
Video loss and Recovery
Network loss
Recovery
Extended Device:
Point-of-sale (POS) status
Network I/O status
Access control allowed/denied
Car park status | | Event Response | Pop-up window with live video and event confirmation activation
Switch to hotspot window
Switch to customize view
Command a PTZ device to go to a preset point
Play alert sound
Activate external device through digital output
Execute system command to activate other programs
Upload video or snapshot to FTP server
Email notification with snapshots
Push notification | | Manual Event | Manually activate external devices through digital output via live view monitor | | Handling | Event: Define the schedule of event manager | | | | Permission Control | Unlimited number of users, active directory, customizable permissions for user groups, account lockout, playback password protected, password validity period | | Operating System | Win 7 Standard Embedded | | Language | Multi-language support
Language Import/Export: Possibility to import or export language packs for convenient local language management | | User Interface | Define the layout of user interface for live view and playback | | Setup | Configure basic settings of NVR | | GPS | Manual position setting | | | | PC Client Program | User interface program (Workstation) with live view, PTZ, playback, e-Map, video push, event management, setup | | PC Web Browser | Microsoft Internet Explorer with live view, PTZ, playback, e-Map, video push, event management, setup | | Mobile Client Program | Mobile device application (Active Mobile Client) supports live view, PTZ control, video push, event- or time-based search and playback
Supported Devices: iOS and Android devices | | | | Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall, and intelligent video surveillance software | | Open Platform | Support ONVIF-compliant devices | | Type | ISV CMS: Software Development Kit (SDK) available
Third-Party: Point-of-sale (POS), access control, network I/O, car park | | Licensing | ACTi Video Device License: LNVR3003
Third-party Video Device Integration License: LCDP1003
POS Device Integration License: LPOS3000
Access Control and Network I/O Device Integration License: LEXD3000 | | | | CPU | Intel processor | | RAM | 8 GB | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Operating Humidity | 10 to 95% RH (non-condensing) | | Power Source | 12 VDC, 9 to 36 VDC | | Approvals | CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), e-Mark (e13), MIL-STD-810F, UL (for optional power adapter), CCC, BSMI | | USB | 4 (3 x USB 2.0, 1 x USB 3.0) | | RJ45 Connector | 2 x Gigabit Ethernet ports (1000Base-T), RJ45 connector | | PoE | Built-in 4 ports | | Audio Ports | 1 x Mic-in
1 x Line-out
1 x Line-Out | | Ethernet | 2 x Gigabit Ethernet | | Serial Ports | 2 x DB9 connectors for RS-232/422/485 signal | | GPIO | 6 x DI
2 x DO | | Power Module | 1 x Ignition module | | Dimensions | 10.41 x 2.72 x 5.23" (26.45 x 6.92 x 13.3 cm) | | Weight | Not specified by the manufacturer |
