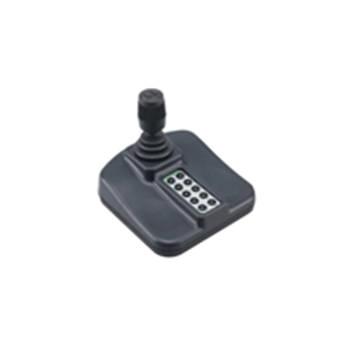

User Manual for ACTi PJSK-0100 3-Axis USB Joystick for Select NVRs Click to enlarge the picture
Contents of the user manual for the ACTi PJSK-0100 3-Axis USB Joystick for
- Product category: Keyboards & Controllers ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Keyboards & Controllers
|
User manual for the ACTi PJSK-0100 3-Axis USB Joystick for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi PJSK-0100 3-Axis USB Joystick offers PTZ control, and features 10 tactile pushbuttons. The USB 1.1 interface is compliant with ENR Series Standalone NVRs, GNR-300, INR-410, INR-420, and MNR-310. - 3-axis joystick for PTZ control
- USB 1.1 HID compliant controller
- Programmable pushbutton switches
- Compatible with ACTi's video management system
In the Box ACTi PJSK-0100 3-Axis USB Joystick for Select NVRs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi PJSK-0100 3-Axis USB Joystick for Select NVRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi PJSK-0100 Specs | | | Joystick | Performance: Hall-effect three-axis joystick; X/Y/Z for positioning control | | Travel | Travel: 36˚ for X and Y axis; 60˚ f or Z axis | | Horizontal Centering Range | Single spring, omni-directional | | Push Button | 10 tactile pushbuttons on housing; Two tactile pushbuttons on joystick; 3,000,000 cycles | | Connectors | USB Type A Male
Cable Length: 6.6' (2 m) | | Supported Protocols | USB HID 1.1 controller; Direct X
Joystick: 3 HID axes
Push Buttons: 12 HID buttons
Standard DirectX HID drivers | | | | Unified Solution | Fully compatible with ACTi's video management system | | | | Material | Shaft: Stainless Steel
Boot: Neoprene
Handle: Glass filled nylon | | Housing | High impact ABS desktop housing | | Power | Via USB interface (5 VDC)
Consumption 32 mA | | Operating Temperature | -13 to 185˚F (-25 to 85˚C) | | Approvals | EN 55024:1998, EN 55022, CE; FCC Part 15 Subpart B Class B; RoHs compliant | | Supported OS | Windows 7, Vista, Windows XP, Windows 2000, Window 8, OSX, Linux | | Application | Indoor use only | | Dimensions (H x W x D) | 5.0 x 6.6 x 6.2" (12.8 x 16.9 x 156.5 cm) | | Weight | 15.5 oz (440 g) |
