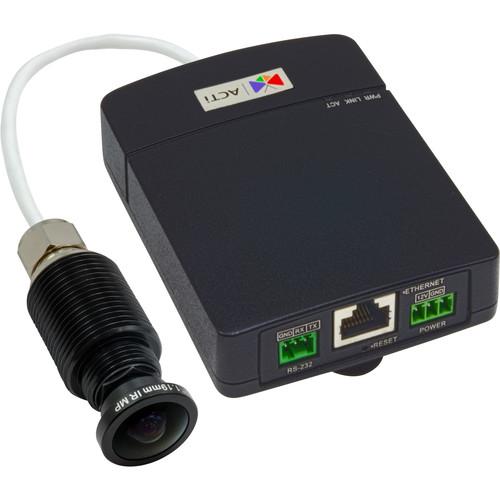

Product description The Q111 5MP Indoor Fisheye Covert Camera from ACTi is suitable for discreet surveillance of your premises. Thanks, to the progressive scan CMOS sensor and 2.0mm fixed fisheye lens, the camera captures clear images at a maximum resolution of 2592 x 1944. It features WDR (Wide Dynamic Range), VMD (Video Motion Detection) and 2D+3DNR (Digital Noise Reduction). UPC: 888034007611 In the Box ACTi Q111 5MP Indoor Fisheye Covert Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q111 5MP Indoor Fisheye Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q111 Specs | Maximum Resolution | 5 MP | | Image Sensor | Progressive scan CMOS | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at F2.0 | | Lens | Fixed focal, f1.9 mm / F2.0, Fixed iris, Fixed focus | | Lens Mount | RJ12 connector up to 39' (12 m) from main unit | | Horizontal Viewing Angle | 189.67° (overview area), 115.7° (high detail area) | | View Mode | Fisheye view | | Compression | H.264 (Baseline/ Main/ High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Horizontal Resolution | 1350 TVL | | Multi-Streaming | Dual streams | | Video Motion Detection | 3 Regions | | Privacy Masking | 4 Configurable regions | | Wide Dynamic Range | Basic WDR (74 dB) | | Digital Noise Reduction (DNR) | 2D+3D DNR | | S/N Ratio | 52 dB | | Audio | 2-way (Mic-in, Line-in, Line-out) | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Network Connectors | RJ-45 | | Digital Input/Output | 1/1 | | Serial Port | RS-232 | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Power Source | 12 VDC; PoE Class 2 | | Environmental Casing | Vibration proof (EN50155) | | Mount Type | Flush, Tiltable Flush Mount, Corner Mount | | Software | Based Analytics: Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection | | GPS | Manual setting | | Client PC Operating System | Windows XP/Vista//7/8, Windows Server 2003/2008 | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | ONVIF | Yes (Profile S, Profile G available on new firmware v6.09) | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Certifications | CE, FCC, EN50155 | | Dimensions | 3 x 4 x 1.2" (8 x 10 x 3.0 cm) | | Weight | 1.4 lb (0.6 kg) |
