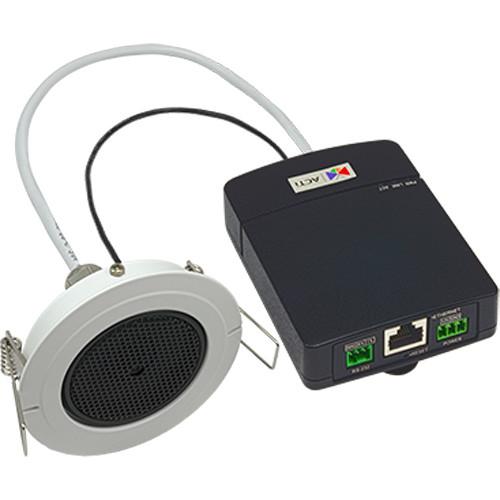

Product description The ACTi Q112-K1 5MP Covert Pinhole Network Camera Kit includes a Q112 pinhole camera, PMAX-1017 mount, and PMIC-0201 microphone. The camera includes a 3.7mm fixed lens and captures up to 1920 x 1080 resolution images at 30 fps.The camera has a 1/3.2" sensor and a horizontal viewing angle of 70.2°. It features basic WDR (74 dB) and DNR enhances image quality and provides clear and crisp images in backlit and dark environments.The main unit houses connections for the camera, network, power, digital input/output, and RS-232 data port. It supports two-way audio and features a microSDHC/SDXC memory card slot (card not included) for local storage of recordings. This network camera system is suitable for discreet indoor video surveillance.The included PMIC-0201 Microphone is a passive microphone with omnidirectional pattern. For connection, the mic comes with a 6.5' cable length and line-in, terminal block.The white PMAX-1017 Mount is a tiltable flush mount for use with the included Q112 Camera. Made out of aluminum, this mount supports tilting from -20° to 20°. - Tiltable Flush Mount for Pinhole Covert Camera (-20 to 20° Tilted Angle)
- Key Features
-
- Flush mount for pinhole covert cameras
- Tiltable
- Made of aluminum
UPC: 888034007444 - Q112 5MP Covert Network Pinhole Camera System The Q112 5MP Covert Network Pinhole Camera System from ACTi contains a main processing unit and a pinhole camera that connect to each other via an RJ12 cable up to 39' long. The camera unit's 3.7mm fixed lens captures up to 2592 x 1944 resolution video at up to 15 fps. WDR up to 74dB and DNR enhance image quality to provide clear images in varying lighting conditions. The 3.7mm pinhole lens has a 70.2° field of view to monitor tight, covert spaces.
The main unit houses connections for the camera, network, power, digital input/output, and an RS-232 data port. It supports two-way audio and has a microSD memory card slot (available separately) for local storage. This network camera system is suitable for discreet indoor surveillance. - Designed for covert surveillance
- 5MP progressive scan CMOS sensor captures up to 2592 x 1944 at up to 15 fps
- Separate camera and base unit for custom positioning up to 39' apart
- 70.2° horizontal field of view let you focus on a specific area
- Two-way audio communication
- PoE technology eases installation
UPC: 888034007697 - Passive Omnidirectional Microphone
In the Box Bundle Items Tiltable Flush Mount for Pinhole Covert Camera (-20 to 20° Tilted Angle) wsetxddctbrvabwq Passive Omnidirectional Microphone Q112 5MP Covert Network Pinhole Camera System Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q112-K1 5MP Covert Pinhole Network Camera Kit with Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tiltable Flush Mount for Pinhole Covert Camera (-20 to 20° Tilted Angle)
| | | Product Type | Flush mount kit | | Product Material | Aluminum | | Width | 3.5 in | | Depth | 3.5 in | | Height | 1.1 in | | Weight | 5.08 oz | | Color | White | | | | Features | Tilt adjustment, for pinhole covert cameras | | | | Service & Support | Limited warranty - 1 year | | | | Designed for | ACTi Q112 5MP Indoor Pinhole Covert, Q14 | - Q112 5MP Covert Network Pinhole Camera System
| | | Image Sensor | 5 MP 1/3.2" progressive scan CMOS sensor | | Minimum Illumination | Color: 0.1 lux at f/2.5 (30 IRE, 2400K) | | Horizontal Resolution | 1350 TVL | | S/N Ratio | 52 dB | | | | Lens | 3.7mm, f/2.5
Fixed iris, fixed focus | | Lens Mount | RJ12 connector up to 39' (12 m) from main unit | | Field of View | Horizontal: 70.2°
Vertical: 51.4° | | | | Compression | H.264 (baseline, main, high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Dual streams | | Wide Dynamic Range | 74 dB (basic) | | Bit Rate | 28 kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Video Motion Detection | 3 regions | | Privacy Masking | 4 configurable regions | | Video Analytics | Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection | | | | Capability | Two-way (mic-in, line-in, line-out) | | Compression | 8 kHz, 16-bit encoding, mono, PCM, G.711 | | | | Network Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | RJ45 | | Network Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, IEEE 802.1X network access control | | | | Event Trigger | Video motion detection (3 regions), external device through digital input, sound detection | | Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video or snapshot to FTP server, upload video to NVR server, activate external device through digital output | | | | Digital Input/Output | 1/1, terminal block | | Serial Port | RS-232 | | Local Storage | microSDHC/SDXC memory card slot | | | | GPS | Manual setting | | ONVIF | Profile S and G | | Compliance | GB28181 | | PC Web Browser | IE 9 or later, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | Firmware Upgrade | Auto | | | | Power Source | PoE IEEE 802.3af Class 2
12 VDC | | Power Consumption | PoE: 4.32 W
12 VDC: 3.6 W | | Mount Type | Bracket, flush, tiltable flush mount, corner mount (all available separately) | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part 15 Subpart B Class B), EN50155, UL (for optional PoE injector and power adapter) | | Environmental Casing | EN50155 (vibration resistant) | | Dimensions | Main Unit: 3 x 4 x 1.2" (7.5 x 10 x 3 cm)
Lens: 1 x 2.2" (2.6 x 5.6 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 7.9 x 7.8 x 3.5" | - Passive Omnidirectional Microphone
