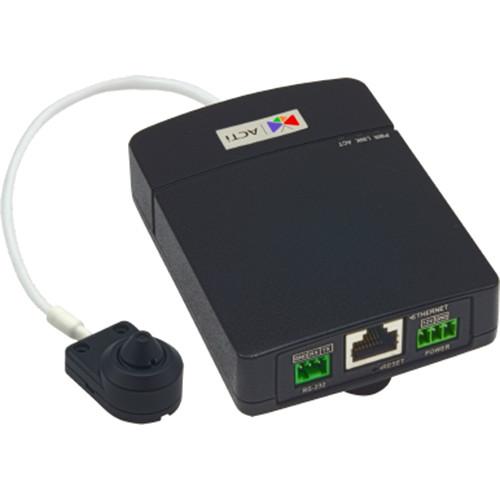

Product description The ACTi Q113 2MP Indoor L-Shape Covert Pinhole PoE Network Camera System includes a pinhole camera and main unit. The camera utilizes a 1/2.8" progressive scan CMOS image sensor and 3.7mm fixed lens to capture images up to 1920 x 1080 at 30 fps. It offers Superior Low Light Sensitivity basic WDR of 75 dB for capturing clear images in low-light environments. The camera features a 39' cable for connection to the main unit, which can be placed out of public view. The main unit houses connections for the camera, network, power, digital input/output, and RS232 data port. It supports two-way audio and features a microSDHC / SDXC memory card slot (card not included) for local storage of recordings. This network camera system is suitable for discreet indoor video surveillance. The camera unit can be ceiling or wall mounted using flush, surface, or tilted mounts (included) or the height strip mount (available separately). The main unit can be directly mounted on the included mounting rail or on a DIN rail (available separately) for flexible installations. - 1/2.8" progressive scan CMOS image sensor
- 3.7 mm, f/2.5 fixed lens with horizontal viewing angle of 84.5°
- Records up to 1920 x 1080 images at 30 fps
- Superior Low Light Sensitivity and Basic WDR (75 dB)
- microSDHC / SDXC memory card slot (card not included)
- EN50155 compliant vibration-proof casing
UPC: 888034007598 In the Box ACTi Q113 2MP Indoor L-Shape Covert Pinhole PoE Network Camera System Mounting Rail Power Terminal Block Digital In/Out Terminal Block Audio In/Out Terminal Block RS-232 Terminal Block Surface Mount Flush Mount Tilted Mount Mounting Hardware 2 x Drill Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q113 2MP Indoor L-Shape Covert Pinhole PoE Network Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q113 Specs | | | Device Type | Indoor L-shape pinhole covert camera | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/2.5 (30 IRE, 2400°K) | | Electronic Shutter | 1/5 to 1/32,000 sec (manual & auto mode) | | Horizontal Resolution | 1100 TVL | | S/N Ratio | 52 dB | | | | Focal Length | 3.7 mm | | Aperture | f/2.5 | | Iris | Fixed | | Focus | Fixed | | Horizontal Viewing Angle | 84.5° | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR: 75 dB
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto Gain Control
2D+3D Digital Noise Reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding; G.711 | | Audio In | Mic-in and line-in, terminal block | | Audio Out | Line-out, terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x RJ45 (10/100 Base-T) connector | | Security | IP address filtering
HTTPs encryption
Password protected user levels
Anonymous login
IEEE802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video or snapshot to FTP
Activate external device through digital output | | | | Digital Input | 1 x Terminal block | | Digital Output | 1 x Terminal block | | Serial Port | 1 x RS-232 | | Local Storage | microSDHC / SDXC memory card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | ONVIF compliant
Software Development Kit (SDK) available | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af)
12 VDC (adapter not included) | | Power Consumption | PoE: 4.32 W
12 VDC: 3.6 W | | Mount Type | Flush, surface, and tilted mount (included)
Height strip mount (available separately) | | Temperature | Starting: -4 to 122°F (-20 to 50°C)
Operating: -22 to 140°F (-30 to 60°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024)
FCC (Part15 Subpart B Class B)
UL (for optional PoE injector and power adapter | | Environmental Casing | Vibration proof (EN50155) | | Dimensions (L x W x H) | 3.95 x 2.95 x 1.00" (100.33 x 75.00 x 25.50 mm) | | Weight | 1.120 lb (0.508 kg) |
