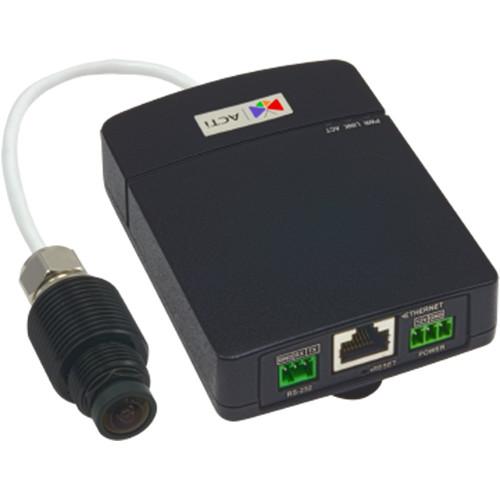

User Manual for ACTi Q12 2MP Indoor Covert Network Camera System Click to enlarge the picture
Contents of the user manual for the ACTi Q12 2MP Indoor Covert Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Q12 2MP Indoor Covert Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi Q12 2MP Basic WDR Indoor Covert Network Camera System includes a camera and main unit. The camera utilizes a 1/2.8" progressive scan CMOS image sensor and 2.55mm fixed lens to capture images up to 1920 x 1080 at 30 fps. It offers Superior Low Light Sensitivity and basic WDR of 75 dB for capturing clear images in low-light environments. The camera features a 39' cable for connection to the main unit, which can be placed out of public view. The main unit houses connections for the camera, network, power, digital input/output, and RS232 data port. It supports two-way audio and features a microSDHC / SDXC memory card slot (card not included) for local storage of recordings. The camera unit can be ceiling, wall, or corner mounted using a flush mount (included), surface, tilted, or height strip mounts (available separately). The main unit can be directly mounted on the included mounting rail or on a DIN rail (available separately) for flexible installations. - 2MP 1/2.8" progressive scan CMOS image sensor
- Captures up to 1920 x 1080 images at 30 fps
- Superior Low Light Sensitivity and basic WDR (75 dB)
- microSDHC / SDXC memory card slot
- EN50155 compliant vibration-proof casing
UPC: 888034007581 In the Box ACTi Q12 2MP Indoor Covert Network Camera System Mounting Rail Power Terminal Block Digital In/Out Terminal Block Audio In/Out Terminal Block RS-232 Terminal Block Flush Mount Flush Mount & Mounting Rail Screws Camera Set Screw Drill Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q12 2MP Indoor Covert Network Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q12 Specs | | | Device Type | Indoor covert camera | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/2.5 (30 IRE, 2400°K) | | Electronic Shutter | 1/5 to 1/32,000 sec (manual & auto mode) | | Horizontal Resolution | 1350 TVL | | S/N Ratio | 52 dB | | | | Focal Length | 2.55 mm | | Aperture | f/2.2 | | Iris | Fixed | | Focus | Fixed | | Horizontal Viewing Angle | Overview Area: 110.3°
High-Detail Area: 67.3° | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR: 75 dB
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto Gain Control
2D+3D Digital Noise Reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding; G.711 | | Audio In | Mic-in and line-in, terminal block | | Audio Out | Line-out, terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x RJ45 (10/100 Base-T) connector | | Security | IP address filtering
HTTPs encryption
Password protected user levels
Anonymous login
IEEE802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video or snapshot to FTP
Activate external device through digital output | | | | Digital Input | 1 x Terminal block | | Digital Output | 1 x Terminal block | | Serial Port | 1 x RS-232 | | Local Storage | microSDHC / SDXC memory card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | ONVIF compliant
Software Development Kit (SDK) available | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af)
12 VDC (adapter not included) | | Power Consumption | PoE: 4.32 W
12 VDC: 3.6 W | | Mount Type | Flush, surface, tilted mount, corner, height strip | | Temperature | Starting: -4 to 122°F (-20 to 50°C)
Operating: -22 to 140°F (-30 to 60°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024)
FCC (Part15 Subpart B Class B)
UL (for optional PoE injector and power adapter) | | Environmental Casing | Vibration proof (EN50155) | | Dimensions (L x W x H) | 3.95 x 2.95 x 1.00" (100.33 x 75.00 x 25.50 mm) | | Weight | 1.370 lb (0.621 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.8 x 7.8 x 3.6" |
