User Manual for ACTi Q19 5MP Indoor Covert Network Camera System with Basic WDR Click to enlarge the picture
Contents of the user manual for the ACTi Q19 5MP Indoor Covert Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Q19 5MP Indoor Covert Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|

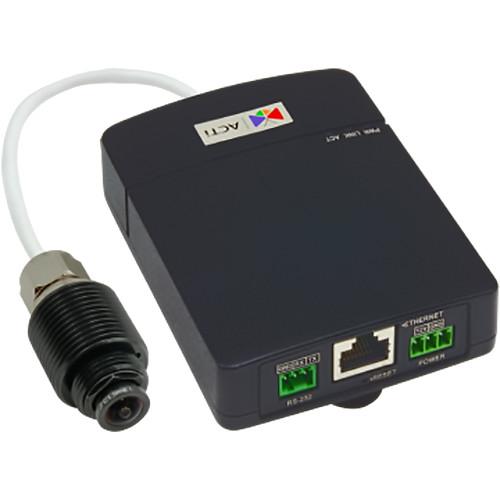

Product description The ACTi Q19 5MP Indoor Covert Network Camera System includes a camera with 2.93mm fixed lens and a main unit. The camera captures images up to 1920 x 1080 resolution at 30 fps. It offers basic WDR of 74 dB for capturing clear images in low-light environments. The camera features a 39' cable for connection to the main unit, which can be placed out of public view. The main unit houses connections for the camera, network, power, digital input/output, and RS-232 data port. It supports two-way audio and features a microSDHC/SDXC memory card slot (card not included) for local storage of recordings. This network camera system is suitable for discreet indoor video surveillance. UPC: 888034007734 In the Box ACTi Q19 5MP Indoor Covert Network Camera System with Basic WDR Limited 3-Year Warranty Brochure PDF 803.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q19 5MP Indoor Covert Network Camera System with Basic WDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q19 Specs | Image Sensor | 1/3.2" progressive scan CMOS | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/2.0 | | Lens | 2.93mm, f/2.0
Fixed iris, fixed focus | | Lens Mount | RJ12 connector up to 39' (12 m) from main unit | | Horizontal Viewing Angle | 82.3° | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944, 2048 x 1536, 320 x 240
30 fps at 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480 | | Horizontal Resolution | 1350 TVL | | Multi-Streaming | Dual streams | | Wide Dynamic Range | 74 dB (Basic) | | S/N Ratio | 52 dB | | Video Motion Detection | 3 regions | | Privacy Masking | 4 configurable regions | | Audio | 2-way (Mic-in, Line-in, Line-out) | | Network / Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | RJ45 | | Digital Input/Output | 1/1 | | Serial Port | RS-232 | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Analytics | Software Based Analytics:
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Heat Map Requires PC-based IVS Server, or ALPR Server. | | Firmware Upgrade | Auto | | GPS | Manual setting | | Client PC Operating System | Windows 8, 7, XP, Vista
Windows Server 2003, 2008 | | PC Web Browser | IE 8 to 11, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | ONVIF Conformance | Yes (Profile S, Profile G available on firmware v6.09) | | Power | PoE Class 2
12 VDC | | Mount Type | Flush, corner, and tilted mount | | Temperature | Starting: -4 to 122°F (-20 to 50°C)
Operating: -22 to 140°F (-30 to 60°C) | | Approvals | CE, FCC, EN50155, UL | | Environmental Casing | Vibration proof (EN50155) | | Dimensions | Body: 3 x 4 x 1" (7.5 x 10.1 x 2.6 cm)
Lens: ø1 x 2.5" (ø2.5 x 6.4 cm) | | Weight | 1.22 lb (0.589 kg) |
