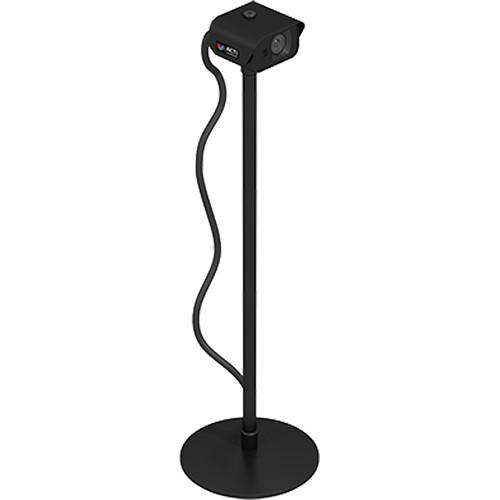

User Manual for ACTi Q22 2MP Outdoor Interview Network Micro Box Camera Click to enlarge the picture
Contents of the user manual for the ACTi Q22 2MP Outdoor Interview Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Q22 2MP Outdoor Interview Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Designed for outdoor interviews, the Q22 2MP Outdoor Network Micro Box Camera from ACTi is IP68-, IK10-, and EN50155-rated for protection against dust, water, impact, and vibration for use in a variety of environments. To ensure high-quality recording, this camera features a 2MP 1/2.8" progressive scan CMOS sensor to capture clear 1080p video at up to 30 fps. It has a built-in microphone to record nearby sound and a speaker output. The wide-angle 2.55mm lens has a 110.3° horizontal field of view to monitor and view large outdoor areas.
Recorded video is compressed using H.264 and MJPEG codecs and can be stored onto a memory card (available separately) via the built-in microSD slot. Installation is made easy with PoE technology, which combines network connection and power into a single Ethernet cable. ONVIF compliance makes this camera compatible with a wide range of surveillance products. - 2MP 1/2.8" progressive scan CMOS sensor captures high-quality 1920 x 1080 resolution video at up to 30 fps
- Superior Low Light Sensitivity technology
- 2.55mm fixed lens has a wide 110.3° horizontal field of view
- H.264 and MJPEG dual streaming compression ensure high-quality recording and playback
- Two-way audio with a built-in microphone
- IP68-, IK10-, and EN50155-rated for protection against dust, water, impact, and vibration
- Standard bracket and desktop mount included
UPC: 888034008601 In the Box ACTi Q22 2MP Outdoor Interview Network Micro Box Camera Mounting Rail Standard Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q22 2MP Outdoor Interview Network Micro Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q22 Specs | Image Sensor | 2 MP 1/2.8" progressive scan CMOS sensor | | Effective Pixels | 1944 x 1224 | | Minimum Illumination | 0.1 lux at f/2.2 (50 IRE, color) | | Resolution | 1100 TVL
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | S/N Ratio | 52 dB | | Focal Length | 2.55mm | | Aperture | f/2.2 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | RJ12 connector up to 9.8' from main unit | | Horizontal Angle of View | Overview Area: 110.3°
High Detail Area: 67.3° | | Compression | H.264 (baseline, main, high profile) and MJPEG | | Multi-Streaming | Simultaneous dual streams | | Bit Rate | 28 kbps to 6 Mbps (per stream)
Bit Rate Mode: Constant, variable | | White Balance | Automatic, hold, and manual | | Image Enhancement | Brightness, contrast, sharpness (auto), auto gain control, 2D+3D digital noise reduction, and flickerless modes | | Wide Dynamic Range | Basic WDR (75 dB) | | Digital Noise Reduction | 2D and 3D | | Privacy Masking | 4 zones | | Audio | Two-way with built-in microphone
Mic in, line out | | Audio Compression | 8 kHz, Mono, PCM, 16-bit encoding, G.711 | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, and IEEE802.1X network access control | | Ethernet Port | 1 x RJ45 for Ethernet (10/100 Base-T) | | Alarm Trigger | Video motion detection (3 regions), external device through digital input, and sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video to local storage, upload video or snapshot to FTP, and activate external device through digital output | | Digital In/Out | 1/1 | | Serial Port | 1 x RS-232 | | microSD Card Slot | Supports microSDHC and microSDXC (available separately) | | Power Source | 12 VDC, PoE Class 2 (IEEE802.3af) | | Power Consumption | PoE: 4.32 W
Via Adapter: 3.6 W | | Enclosure | IP68 (lens module and cable), IK10, and EN50155 | | Approvals | CE, FCC, UL | | ONVIF | Profile S and G | | Web Browser Support | IE 8.0 or newer, Firefox with VLC, Chrome with VLC, and Safari with QuickTime | | Unified Solution | Fully compatible with ACTi software | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 10 to 85% RH | | Dimensions | 3.95 x 2.95 x 1" (100 x 75 x 25.5 mm) | | Weight | Camera: 1 lb (0.5 kg)
Main Unit: 0.4 lb (0.2 kg) |
