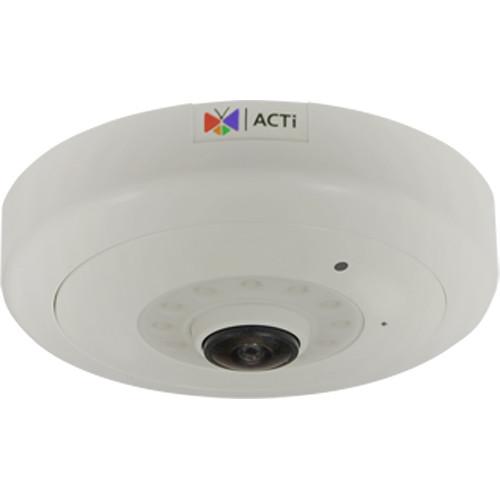

User Manual for ACTi Q51 6MP Hemispheric Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi Q51 6MP Hemispheric Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Q51 6MP Hemispheric Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 6MP Hemispheric Dome Camera from ACTi features a 1/1.8" progressive scan CMOS sensor and a 1.3mm fixed focal lens. Utilizing these, the camera can capture images at a resolution of up to 6MP. It supports H.264 and MJPEG compression formats with simultaneous triple-streaming.The camera offers a wide dynamic range of 130 dB to capture images under varied lighting conditions. It comes with a built-in microSDHC card slot (card not included) for on-board storage. With an IR working distance of 65', the camera can capture images in darkness. -
- 6MP camera with 1080p
- Superior Low Light Sensitivity technology
- 1.3mm fixed lens at f/2.2
- Extreme WDR at 130 dB
- Built-in people- and VMS-based analytics
UPC: 888034008632 In the Box ACTi Q51 6MP Hemispheric Dome Camera with Night Vision Terminal Block (For Power) Terminal Block (For DI/DO) Screw Kit Drill Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q51 6MP Hemispheric Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q51 Specs | Type | Hemispheric Dome | | Maximum Resolution | 6 MP | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/1.8" | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/2.8 (30 IRE, 2400K)
B&W: 0 lux at f/2.8 (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR LED | Adaptive IR LED | | IR Working Distance | 65.6' (20 m) | | Horizontal Resolution | 1800 TVL | | S/N Ratio | 56 dB | | Focal Length | Fixed focal, 1.3mm | | Aperture | f/2.6 | | Iris | Fixed focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 187° | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | Fisheye View:
20 fps at 3072 x 2048
30 fps at 2048 x 2048
20 fps at 1280 x 960
30 fps at 1024 x 768
30 fps at 800 x 800
30 fps at 800 x 600
30 fps at 640 x 480
Dewarped View:
30 fps at 1920 x 1080
30 fps at 1920 x 480
30 fps at 1280 x 720
30 fps at 1280 x 320
30 fps at 640 x 480
30 fps at 640 x 160
ePTZ View:
30 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams | | Wide Dynamic Range | Extreme WDR (130 dB) | | Image Enhancement | Defogging | | Digital Noise Reduction | 2D- and 3D-DNR | | Privacy Masking | 8 configurable regions | | Analytics | Heat map, dwell time, object based motion detection, tamper, shock detection, line crossing, enter area, missing object, unattended object, and smoke detection | | Image Orientation | Image flip and mirror | | Audio | Built-in microphone
Mic-in, Line-in, and Line-out | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x RJ45 | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Power Source | PoE class 3 (IEEE802.3af)
12 VDC | | Mount Type | Surface, wall, ceiling bracket, flush, corner, pole, or gang box | | Power Consumption | PoE: 12.95 W | | GPS | Positioning manual setting | | Web Browser | IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | Approvals | CE, FCC, and UL (for optional PoE injector) | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Weight | 1.65 lb (.751 kg) | | Dimensions | 5.9 x 1.8" (150 x 45mm |
