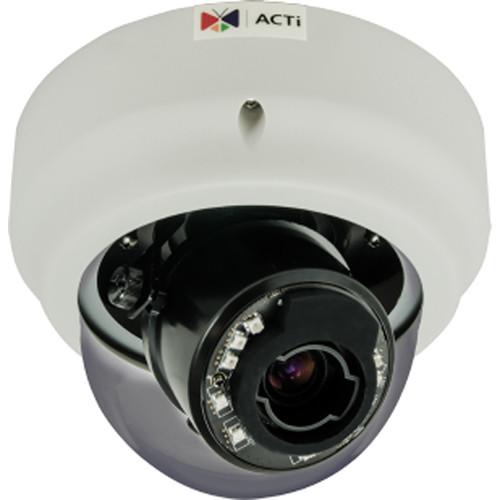

User Manual for ACTi Q61 2MP Zoom Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi Q61 2MP Zoom Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Q61 2MP Zoom Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Q61 2MP Zoom Dome Camera from ACTi captures images at a resolution of up to 1920 x 1080 at 60 fps. The camera comes equipped with a 3 to 9mm varifocal lens with 3x optical zoom function. Featuring Day/Night functionality with removable IR filter operation, the camera switches between color and B&W as per changes in the ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night. The built-in adaptive IR LED can illuminate objects up to 13'. Superior low light sensitivity and extreme wide dynamic range (145 dB) enhance image quality, and provide clear and crisp images in low-light environments. The camera comes with a vandal resistant IK10-rated housing. It also comes with a built-in SDXC card slot (card not included) for on-board storage. - People Counting
- As a manager of a retail store or shopping center, you want to know how many people, and at what time, enter and exit the venue. The people counting feature provides you this information as comprehensive graphs so you can make decisions regarding item stocking or schedule management.
- Object Counting
- This feature ensures that there is no addition or deletion in the object count for a given selected area.
- Object-Based Motion Detection
- Object-based motion detection allows you to specify what type of motion will trigger predefined events. Depending on the configuration, the object can be anything, from a small item falling from a conveyor belt in a production line to a person moving in a restricted area.
- Tamper Detection
- This feature detects unwanted manipulation of the camera, like attempts to break it or refocus and obstruct its view.
- Face Detection
- Face detection recognizes people in predefined areas and triggers an alert. In many situations, typically in factories or automated warehouses, many moving objects appear in a scene, but it's only the presence of people that should be noted. This face detection feature will recognize people and alert controlling personnel to stop the machinery.
- Line Crossing
- An event is triggered every time a person accidentally or intentionally crosses a virtual line. This feature can protect properties (burglars trespassing on private premises) or save human lives (passengers falling from a platform onto a railway track).
- Enter/Exit Area
- This feature makes sure that any unauthorized person won't enter a prohibited area. You can select regions that will be monitored for entrance or exit of people and objects and every such event will trigger a predefined action, for example an alarm.
- Missing Object
- Transported items can be stolen during transit. You can avoid such situations by monitoring the vehicle interior and detecting any objects that disappear between scheduled offload locations.
- Unattended Object
- Unattended objects, such as shopping trolleys left in a parking lot, can be obstacles for pedestrians and cars. An abandoned handbag can also pose a severe security threat in a crowded area. You can use ACTi video analytics to detect unattended items and deal with them properly.
- Crowd Detection
- The crowd detection function allows you to service customers. You will be automatically notified when the number of customers waiting in a line exceeds a set limit so you can open another checkout counter.
- Heat Map
- Rework product placement, refine promotions, and optimize checkout services by using heat map. The map provides visual information about customer density and flow in the store.
Note:Some functions may require PC-based or standalone Intelligent Video Surveillance (IVS) or Automatic License Plate Recognition (ALPR) Server. In the Box ACTi Q61 2MP Zoom Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q61 2MP Zoom Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q61 Specs | Maximum Resolution | 2 MP | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Day/Night Operation | Yes via mechanical IR cut filter | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.3 (30 IRE, 2400K)
B&W: 0 lux at f/1.3 (IR LED on) | | IR LED | Adaptive IR LED | | IR Working Distance | 13' (4 m) | | Horizontal Resolution | 1100 TVL | | S/N Ratio | 56 dB | | Focal Length | 3 to 9mm | | Aperture | f/1.3 to 2.2 | | Zoom Ratio | 3x optical | | Application | Zoom Application: Camera installation, auto zoom by event, manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 113.7° to 38° | | Viewing Angle Adjustment | Pan: -175 to 175°
Tilt: 5 to 175°
Rotation: -175 to 175° | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams | | Wide Dynamic Range | Extreme WDR (145 dB) | | Image Enhancement | Digital image stabilizer, defogging | | Digital Noise Reduction | 2D- and 3D-DNR | | Privacy Masking | 20 configurable 3D privacy masks | | Video Analytics | Built-in Analytics: People Counting, Object Counting, Face Detection, Face Counting, Object Based Motion Detection, Tamper
VMS-Based: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Missing Object, Unattended Object, Crowd Detection, Heat Map, (require PC-based or standalone IVS or ALPR Server) | | Image Orientation | Flip / Mirror / Rotation | | Audio | 2-way, line-in, line-out | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x RJ45 connector | | Digital Input/Output | 2/2 | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | GPS | Manual setting | | ONVIF Conformance | Yes, Profile S, Profile G | | Web Browser | IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | Firmware Upgrade | Auto | | Power Source | DC 12V, PoE Class 3 (IEEE802.3af) | | Power Consumption | 12 W (PoE), 11 W (DC) | | Approvals | CE, FCC, IK09, UL (for optional PoE injector and power adapter) | | Vandal Resistance | IK09-rated | | Mount Type | Surface, pendant, flush, gang box
Converter for NPT standard mount | | Heater | Built-in | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 5.7 x 4.2" (144.8 x 106.7 mm) | | Weight | 1.58 lb (0.72 kg) |
