ACTi Q921 3MP Network Mini Dome

Search your instruction manual in PDF to download

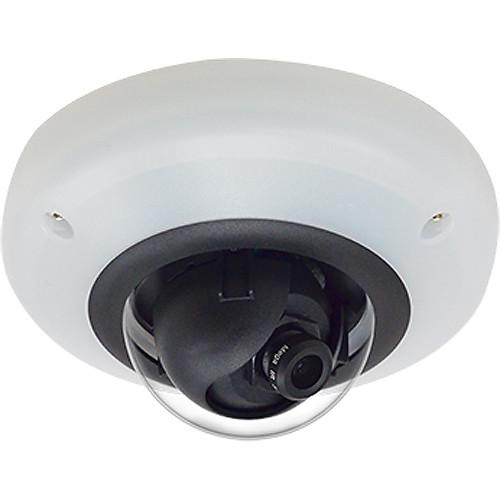

User Manual for ACTi Q921 3MP Network Mini Dome Camera

Click to enlarge the picture
ACTi Q921 3MP Network Mini Dome Camera Contents of the user manual for the ACTi Q921 3MP Network Mini Dome
  • Product category: Wired IP Cameras ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Wired IP Cameras

User manual for the ACTi Q921 3MP Network Mini Dome contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

The Q921 Network Mini Dome Camera from ACTi is a 1/2.8" progressive scan CMOS sensor camera that can record indoor video at a resolution of up to 2048 x 1536 at 30 fps. It features a 6mm fixed lens with a f/2.0 aperture and a 54° horizontal viewing angle. This camera has an RJ45 Ethernet port and is designed to be used in parking areas. It is ONVIF-compliant and features IK08 vandal resistance.
  • Board mount lens
  • Built-in RGB LED indicator
  • 145 dB extreme wide dynamic range
  • SLLS
  • Electronic day/night
  • Surface, pole mount, pendant, and gang box mountable
  • Supports H.265, H.264 (baseline/main/high profile), and MJPEG compressions
  • 2D + 3D digital noise reduction
  • Adjustable white balance, brightness, contrast, saturation, and sharpness
  • Automatic gain control, flickerless, digital image stabilizer, and defogging image enhancement
  • Privacy mask for four configurable regions
  • Text overlay
  • Object loitering detection and parking spot availability detection built-in analytics
  • Flip and mirror image orientation
In the Box ACTi Q921 3MP Network Mini Dome Camera
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi Q921 3MP Network Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ACTi Q921 Specs

    Sensor 3 MP 1/2.8" CMOS
    Focal Length 6mm
    Maximum Aperture f/2
    Lens Field of View Horizontal: 54°
    Day/Night Yes
    Minimum Illumination Color: 0.1 Lux
    Shutter Speed 1/64,000 to 1/5 Seconds
    Streaming Resolution 2048 x 1536 at 30 fps (12 Mb/s )
    1920 x 1080 at 60 fps (12 Mb/s )
    Supported Video Compression H.264, H.265, MJPEG
    Multi-View Streaming Yes, 3 Streams
    Automatic Gain Control Yes
    Security Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
    Supported Protocols ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
    Event Trigger None
    Recording Media None
    Pan/Tilt None
    I/O Connections 1 x RJ45
    1 x 9-Pin Serial (RS-485)
    1 x Power
    Certifications FCC (Part 15 Class A), as per Manufacturer
    Internal Storage None
    Power Source DC
    Operating Temperature 14 to 122°F / -10 to 50°C
    Operating Humidity 10 to 85%
    IK Rating IK08
    Dimensions
