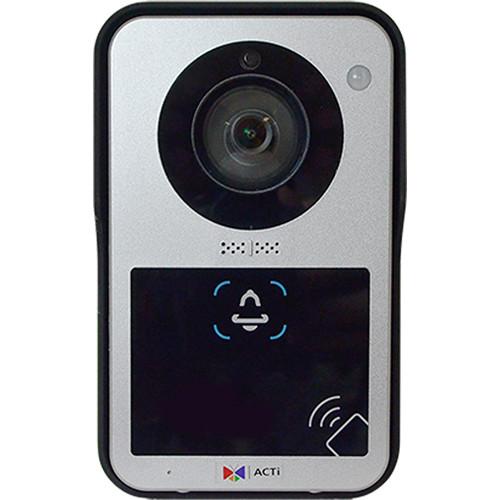

User Manual for ACTi Q951 6MP Outdoor Video Door Station with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi Q951 6MP Outdoor Video Door
- Product category: Door Stations ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Door Stations
|
User manual for the ACTi Q951 6MP Outdoor Video Door contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Monitor an entrance or access point with the Q951 6MP Outdoor Video Door Station with Night Vision from ACTi. Featuring a 6MP 1/1.8" progressive scan CMOS sensor, a mechanical IR cut filter, and IR LEDs, this door station captures 1920 x 1080 resolution video at up to 30 fps during the day and at night. The station's 4mm lens captures a 104.5°-wide view of the scene outside your door.
The Q951 grants access to authorized people via an integrated RFID card reader and allows for two-way voice communication with callers. Enclosed in an IP66- and IK09-rated housing, the door station is protected from dust, water, and impact, making it suitable for use outdoors and in high-risk areas. The integrated microSD slot allows for local storage of footage and snapshots on a separately available microSD card. - Video door station with doorbell button
- 6MP camera captures 1920 x 1080 resolution video at up to 30 fps
- Mechanical IR cut filter and IR LEDs for up to 16' of nighttime visibility
- Fixed focal 4mm lens with 104.5° horizontal viewing angle to capture wide area in front of the door
- Built-in PIR sensor to detect motion
- Wide dynamic range up to 130 dB and 2D/3D-DNR for increased image clarity and accuracy
- Two-way audio communication via the built-in microphone and speaker
- microSD card slot for local storage
- RJ45 Ethernet connection with PoE
- IP66-rated for outdoor use
- IK09-rated for vandal resistance
UPC: 888034010611 In the Box ACTi Q951 6MP Outdoor Video Door Station with Night Vision RFID Card Drill Template Hex Screwdriver Mounting Hardware 2 x 2-Pin Terminal Blocks 5-Pin Terminal Block 6-Pin Terminal Block Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q951 6MP Outdoor Video Door Station with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q951 Specs | | | Maximum Resolution | 6 MP | | Image Sensor | 1/1.8" progressive scan CMOS sensor | | Effective Pixels | 3096 x 2080 (6.44 MP) | | Minimum Illumination | Color: 0.1 lux at f/2.0 with 30 IRE, 2400K
B&W: 0 lux at f/2.0 with IR LED on | | Day/Night | Mechanical IR cut filter | | IR LED Range | Up to 16.4' (5 m) | | IR Sensitivity Range | 700 to 1100 nm | | Horizontal Resolution | 1800 TVL | | S/N Ratio | 56 dB | | | | Focal Length | 4 mm fixed | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Field of View | Horizontal: 104.5° | | | | Compression | H.264 (baseline, main, high profile), MJPEG | | Resolutions Supported | 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kbps to 12 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | Up to 130 dB | | Image Enhancement | White balance, brightness, contrast, sharpness, automatic gain control, flickerless, defogging | | Digital Noise Reduction | 2D- and 3D-DNR | | Privacy Masking | 4 configurable regions | | Analytics | Shock detection | | | | Type | Two-way with built-in microphone and speaker | | Connectors | 1 x line-in
1 x line-out | | Audio Compression | 8 kHz, 16-bit encoding, mono, PCM, G.711 | | | | Network Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x 10/100Base-T RJ45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user level, anonymous login, IEEE 802.1X network access control | | | | Event Trigger | PIR sensor, push button activation, RFID detection, sound detection, external device through digital input | | Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, play audio file, save video to local storage, upload video or snapshot to FTP server, activate external device through digital output, change LED indicators | | | | Unified Solution | Fully compatible with ACTi software | | GPS | Position: Manual setting | | ONVIF Conformance | Profiles S and G | | Firmware Upgrade | Auto | | | | Serial Port | 1 x RS-485
1 x RS-422 | | Standards | NFC type 1, ISO/IEC 14443A, NFC type 2, ISO/IEC 14443A, NFC type 3, ISO/IEC 18092 NFC type 4, ISO/IEC 14443 (type A/B), NFC type 5, ISO/IEC 15693 | | Memory Card Support | microSDHC and micro SDXC cards (available separately) | | Digital Input/Output | 1/1, terminal blocks | | | | Power Source and Consumption | PoE class 3 (IEEE 802.3af) / 4.2 W
12 VDC / 3.8 W | | IP Rating | IP66 | | IK Rating | IK09 | | Approvals | CE, FCC, IP66, IK09, NEMA 4X | | Mount Type | Surface, gang box | | Starting Temperature | -40 to 122°F (-40 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Dimensions | 7.0 x 4.3 x 1.9" (17.8 x 11.0 x 4.8 cm) | | Weight | 1.52 lb (689 g) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
