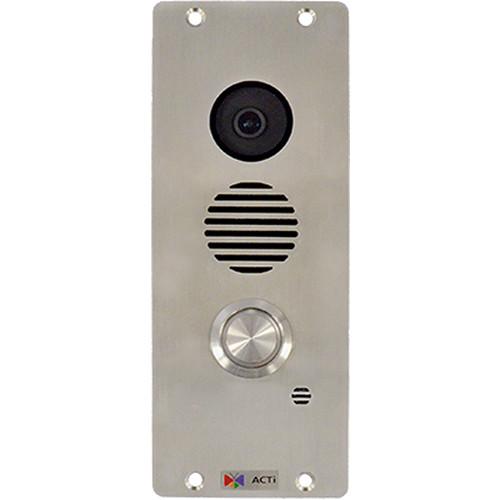

User Manual for ACTi Q970 2MP Outdoor Intercom Camera with 3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi Q970 2MP Outdoor Intercom Camera
- Product category: Door Stations ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Door Stations
|
User manual for the ACTi Q970 2MP Outdoor Intercom Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Q970 2MP Outdoor Intercom Camera from ACTi features a 3.6mm fixed lens and a f/1.85 aperture. With a 1/2.9" progressive scan CMOS sensor, the camera captures images at a maximum resolution of 1920 x 1080 at 30 fps. The front-plate-mounted camera can be integrated into an intercom system to add a microphone and speaker. It uses H.264 and MJPEG compression to maximize storage and bandwidth efficiency, and a memory card slot supports microSD cards for on-site recording and storage. Image enhancements include basic WDR, white balance, brightness, contrast, sharpness, AGC, and flickerless. The system is rated IP66 for outdoor use and IK10 for vandal resistance. In the Box ACTi Q970 2MP Outdoor Intercom Camera with 3.6mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Q970 2MP Outdoor Intercom Camera with 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q970 Specs | Device Type | Intercom | Sensor | 2 MP 1/2.9" progressive scan CMOS | Effective Pixels | 1984 x 1105 (2.19 MP) | Horizontal Resolution | 1100 TVL | S/N Ratio | 52 dB | | Focal Length / Aperture | 3.6mm fixed lens, f/1.85 | Iris | Fixed iris & fixed focus | Lens Mount | Board mount | Field of View | Horizontal: 87.5° Vertical: 48.1° | | Compression | H.264 (Baseline/Main/High-Profile), MJPEG | Resolution | 1920 x 1080 at 30 fps 1280 x 720 at 30 fps 800 x 600 at 30 fps 640 x 480 at 30 fps | Streaming | Simultaneous dual streams based on two configurations | Bit Rate | 28 kb/s to 6 Mb/s (per stream) Mode: Constant, variable | Wide Dynamic Range | Basic WDR (75 dB) | Image Enhancement | White balance, brightness, contrast, sharpness, AGC, and flickerless | Privacy Masking | Four configurable regions | Text Overlay | Yes | | Compression | 8 kHz, 16-bit encoding, mono, G.711 | Audio Streaming | 2-way, built-in microphone and speaker, mic input & line input | | Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | Security | IP Address Filtering, HTTPS Encryption, Password Protected User Levels, Anonymous Login, IEEE 802.1X Network Access Control | Ethernet Port | 1 x RJ45 | | Event Trigger | Touch button, external device through digital input, sound detection | Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, play the audio file, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | Ports | 1 x RS-485, serial 1 x terminal block, audio input 2 x terminal block, digital input 2 x terminal block, digital output | | Power | 12 VDC / PoE Class3 (IEEE 802.3af) | Power Consumption | PoE: 12.95 W | Approvals | CE, FCC | Casing | IP66 weatherproof front plate IK10 vandal-resistant metal casing | Operating Temperature | -40 to 131°F / -40 to 55°C | Storage Temperature | -40 to 131°F / -40 to 55°C | Mount Type | Flush | Dimensions | 3.2 x 8.4 x 1.9" / 8.2 x 21.2 x 4.7 cm | Weight | 1.6 lb / 728 g |
