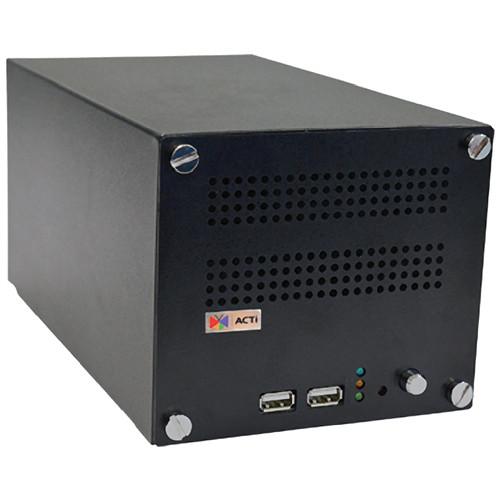

User Manual for ACTi Standalone Network Video Recorder ENR-1000 Click to enlarge the picture
Contents of the user manual for the ACTi Standalone Network Video Recorder ENR-1000
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi Standalone Network Video Recorder ENR-1000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi Standalone Network Video Recorder ENR-1000 is a good solution for security personnel who need safe and reliable storage for their digital content, and network access to their camera systems. It features four channels to manage up to four cameras at once, and includes remote monitoring, scheduled and event-triggered recording and a 2 disk hard drive bay to add your own storage medium (cameras and disks not included, sold separately).
The installation of this unit couldn't be easier. You plug it in, install a hard drive, and attach either a LAN cable from your existing DHCP server or use the other LAN port to connect to a PoE switch box (optional sold separately). You then install up to four IP cameras to that PoE switch, and a monitor (optional, sold separately) to the HDMI port, and you're ready to view H.264 compressed video in 1920 x 1080 resolution. The integrated DHCP on LAN Port 1 will assign IP addresses to each of the network cameras so that you can view the captured video remotely. It even includes dual USB ports so you can add a keyboard, mouse or extra storage to the NVR ENR 1000 (keyboard, mouse and storage drives are optional and sold separately).
You can record your video using a predefined user schedule, or you can use event recording - video capture that is triggered when an alarm event occurs. You can also instantly record with a mouse click, and view that video at 30fps per camera (up to 120fps total). The recorded video is searchable on a 24 hour time bar and has forward and playback speeds of 1/2x, 1x, and 32x. This unit also allows video cropping of certain segments (1-30 minutes long) to export as a video clip in AVI/RAW formats via USB storage.
For convenience, you can configure the display to show 1-4 different camera views, and automatically switch between full screen views by double-clicking on the window you want to enlarge. There are 32 go/set preset points along with full PTZ controls.
The ACTi Standalone Network Video Recorder ENR-1000 supplies a good base from which to expand your security system. If you want to construct a security module from scratch, start with this standalone network video recorder. - Features
- • Manage up to 4 IP cameras or video encoders
• Support H.264 formats up to 2-Megapixel resolution
• Live view with 1, 4 window layouts
• PTZ and speed control, preset points and tours, mouse PTZ
• HDD Bay for 2 SATA disks (total up to 6 TB)
• Maximum total recording frame rate 120 fps
• Scheduled, event triggered and manual recording
• Time and event based search
• Playback with 1/2x-1x-32x speeds with AVI video export function
• 4-channel synchronized playback
• Event management with motion detection and DI/DO
• Built-in DHCP server support
• HDMI Local display
• Compact Design UPC: 888034000582 In the Box ACTi Standalone Network Video Recorder ENR-1000 Power Adapter 3 x Connectors (UK, Europe, US) 8 x Hard Disk Screws Quick Installation Guide 2 - Year Limited Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Standalone Network Video Recorder ENR-1000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-1000 Specs | | | Maximum Number of Clients | 2 | | Maximum Number of Cameras | 4 | | Compression | H.264 | | Maximum Display Resolution | 1920 x 1080 | | | | Display Layout Mode | 1, 4 | | Layout Tour | Automatic switch between different display layouts | | Event logging | Display status for network/record/motion upon every video region | | | | Control | Pan, tilt and zoom controls; speed control | | Preset Points and Tours | Go/set preset points | | Number of Preset Points | 32 | | Default Protocol | URL command | | | | Scheduled Recording | Record video with user defined schedule | | Event Recording | Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
Event Speed-up Recording: Record I frame only in normal status, and record full frames when the alarm event is triggered | | Manual Recording | Instant recording upon mouse click | | Recording Frame Rate | Max 120 fps total; Max 30 fps per camera | | Maximum Recording Throughput | 16 Mbps | | | | Interface | Serial ATA | | HDD Bay | Maximum 2 disks (disks not included) | | | | Video Search | Time Based Video Search: Search video recordings by time, channel or bookmark
Event Based Video Search: Search event triggered video recordings | | Playback Control | Forward and backward playback with speeds 1/2x-1x-32x; pause; stop | | Synchronized Playback | 4 channels | | Snapshot | Create snapshot from playback for export | | Cropping/Enlarging | Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins) | | Video Export | Export video clips in AVI/RAW format via USB storage | | | | Event Trigger | Video motion detection; External device through digital input; Video loss and recovery; Network loss and recovery | | Event Response | Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Event logging; Go to PTZ preset point; Pop-up instant playback | | | | Firmware Upgrade | FW Upgrade via USB mass storage | | Backup / Restore | Configuration backup/restore via USB mass storage | | Permission Control | Multi-group/users, live view/playback/setup/remote level permission | | Data Backup | USB mass storage | | Operating System | Embedded Linux | | System Status Monitor | Real time status reports on remote browser | | Language | English | | | | PC Web Browser | Microsoft Internet Explorer 8.0 or 9.0 | | Ports | 2x USB 2.0
2x Ethernet (1000 Base-T) with RJ-45 connector. Built-in DHCP server support on Ethernet Port 1
1x HDMI | | | | Approvals | CE, FCC
Adapter: CE, FCC, UL, PSE, EFFICIENCY LEVEL V | | Power Source | DC 12V/ 50W | | Environmental Requirements | Temperature (Operating): 0~ 40°C / 32 ~ 104°F
Humidity (Operating): 10% ~ 85% RH | | Dimensions (W x H x D) | 5.3 x 4.8 x 9.5" / 135 x 121 x 241 mm | | Weight | 2.93 lb / 1.33kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 15.3 x 8.0 x 7.5" |
