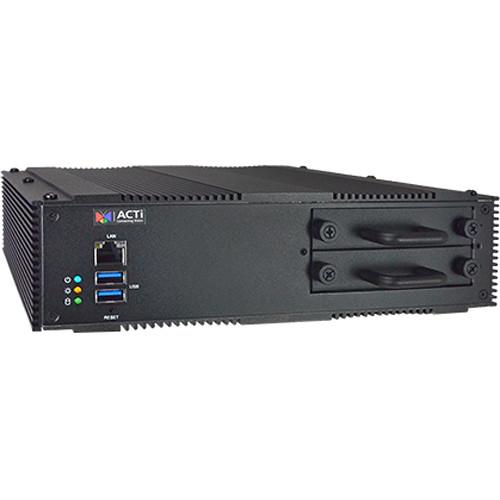

ACTi Transportation Standalone 4-Channel 12MP NVR

Search your instruction manual in PDF to download

User Manual for ACTi Transportation Standalone 4-Channel 12MP NVR

Click to enlarge the picture
ACTi Transportation Standalone 4-Channel 12MP NVR Contents of the user manual for the ACTi Transportation Standalone 4-Channel 12MP NVR
  • Product category: Network Video Recorders (NVRs) ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Network Video Recorders (NVRs)

User manual for the ACTi Transportation Standalone 4-Channel 12MP NVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

Manage and record from up to four cameras with the Transportation Standalone NVR from ACTi at resolutions of up to 12MP at 240 fps. Equipped with two 2.5" Serial ATA ports, each of which can accommodate an HDD up to 1TB, this NVR supports up to 2TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, USB storage devices. H.265, H.264, and MJPEG compression help optimize network bandwidth while ensuring high-quality recording and playback.

The NVR enables simultaneous recording and playback of up to four channels at up to 1920 x 1080 resolution via its HDMI and VGA ports. Web client and mobile client can be remotely accessed. A maximum combined transfer speed of 300 Mb/s is supported and there are two RJ45 1000 Base-T Ethernet interfaces. This camera features an audio input and output, two RS-232 serial ports, and two mini-PCIe slots for optional wireless modules.
  • Rugged design with 2-bay removal tray
  • Export video with raw and AVI formats
  • Event trigger, response, and notification
  • ONVIF-Compliant, Profile S and G
In the Box ACTi Transportation Standalone 4-Channel 12MP NVR (No HDD)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi Transportation Standalone 4-Channel 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ACTi MNR-110 Specs

    Maximum Resolution Supports all ACTi cameras in all resolutions
    Maximum Number of Devices Video: 4
    Access Control and Network Input/Output: 4
    CPU Hi3536
    Dual Stream Record dual streams, live view from one of them
    Maximum Resolution 12 MP
    Video Compression H.265, H.264, MJPEG
    Audio Compression G.711 (U-Law, A-Law), PCM (record / live view / playback)
    Maximum Number of Clients Local: 1
    Remote: 2
    Mobile Client: 1
    Fisheye Dewarp Mode Original, dewarping, panorama, double panorama, panorama focus, quad
    Wall, ground, ceiling, corner
    Angle of installation, tilt, rotation, and calibration
    License Details No license required
    License Included: 4
    Display Layout Mode Custom dynamic layout by grid merging
    Maximum Display Resolution Local: 1920 x 1080
    Remote: Depends on the resolution of the client PC monitor
    Integration Mode Metadata overlap on video (position / dwell time / font and color / motion event alarm), e-Map, event and thumbnail overlay display
    Synchronized Playback Quick switch between playback and live view of each channel
    Playback recording in one channel while others are still on live streaming
    Device Management Camera setup / search / add (ACTi, ONVIF), associate AC, network DIO device with camera, firmware management, local storage management
    Layout Tour Automatic switch between different display layouts
    Digital Zoom Zoom in/out digitally by mouse scroll wheel or by zoom control buttons
    Two-way Audio Yes
    Live View Resolution Maximum: 4 channels at 60 fps in 640 x 480, 1280 x 720, 1280 x 1024, 1920 x 1080 2048 x 1536, 2560 x 1440
    4 channels at 45 fps in 3264 x 2448
    4 channels at 30 fps in 4000 x 3000
    Playback Control Play forward and backward with speeds x2, x4, x8, x16, x1/2, x1/4, x1/8, and pause
    Video Search By event, recording thumbnail, and bookmark
    Synchronized Playback Up to 4 channels
    Maximum Frame Rate Playback: 4 channels at 60 fps (local and remote)
    Video Clip Length Local: 1 to 30 minutes
    Remote: 1 to 1440 minutes
    Video Export Raw, AVI
    Source Video: Dual stream of camera
    Audio: Audio in from camera or local audio device
    Maximum Camera Resolution 4000 x 3000
    Scheduled Recording Record video with user defined schedule (regular and specific schedule), auto recycling by video ageing and user settings (reserved days: 1-999)
    Event Recording Record video when event is triggered
    Manual Recording Instant recording upon mouse click
    Event Speed-Up Recording Record full frames when event happens, otherwise record 1 frame
    Recording Frame Rate 240 fps total (Maximum)
    Maximum Recording Throughput 300 Mb/s
    Network Protocols and Services IPv4/v6, TCP, UDP, DHCP (server/client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, LDAP (client)
    Ethernet Port Non-PoE: 2 x Ethernet (1000 Base-T) RJ45 ports
    HDD 2 x SATA 2.5" bays (maximum)
    Maximum Recording Capacity: 2 x 1 TB
    Supported Storage Video Recording: SATA disk, ISCSI Export: USB, iSCSI, Samba, NFS
    Control Continuous pan, tilt and zoom with speed control, focus mode setting (auto/manual)
    Zoom Local: Zoom in/out optically or digitally by control buttons
    Remote: Zoom in/out optically or digitally by mouse scroll wheel or control buttons
    Preset Points and Tours Add, go to, delete, replace
    Number of Preset Points Unlimited (depends on the number of camera's preset points)
    Operation Joystick, virtual joystick, mouse
    Supported Protocols ACTi or ONVIF
    Event Trigger Local:
    System Event: Storage access error, no recording device found, system boot up, S.M.A.R.T test failed
    Camera Event: Motion/sound detection, video loss/recovery, event from ACTi analytics camera, external device through digital input
    Remote: Show event status on the events panel
    Event Response Local: Play alert beep, activate external device through digital output, email notification with snapshots and messages, start and stop recording, push notification, enlarge video loss, go to PTZ preset point
    Remote: Pop-up and enlarge event-caused channel
    Handling Event Scheduler: Regular (weekly calendar in 24 hours, 20 minutes per unit) and specific scheduler
    Permission Control Unlimited number of users, active directory, customizable permissions for user groups, account lockout, automatic logout after idle
    Client PC Operating System Windows 10, Windows 8.1, Windows 7 SP1
    Mobile Client Program Yes
    USB 4 x USB 3.0 ports
    Language Multi-language
    Unified Solution Compatible with ACTi cameras, encoders, central management system, TV wall server, and intelligent video surveillance software
    ONVIF Conformance Yes, Profile S and G
    Web Browser IE 11
    Firmware Upgrade Auto
    Integration Device:
    Network DIO: Advantech Adam 60xx I/O Modbus TCP module
    Access Control: HID VertX 1000
    Wireless Module:
    Wi-Fi: Advantech EWM-W161H01E
    LTE: Advantech EWM-C117FL01E/EWM-C117FL02E
    GPS + 3.5G: Advantech EWM-C109F6G1E
    Serial Port 2 x RS-232
    Wireless 2 x mini-PCIe slot for optional wireless modules such as Wi-Fi (IEEE 802.11b/g/n), 4G, GPS
    Digital Input/Output 2 x digital ports, input
    2 x digital ports, output
    External Storage Interface iSCSI
    Access Local: USB keyboard and mouse
    Display Interface Options Local: 1 x HDMI port
    1 x VGA port
    Power Source 9-36 VDC
    Remote Access Web client, mobile client
    Approvals CE, FCC, EN50155
    Operating Temperature -4 to 140°F / -20 to 60°C
    Dimensions 10.7 x 2.8 x 9.4" / 270.6 x 72.3 x 239 mm
    Weight 6.61 lb / 3 kg
