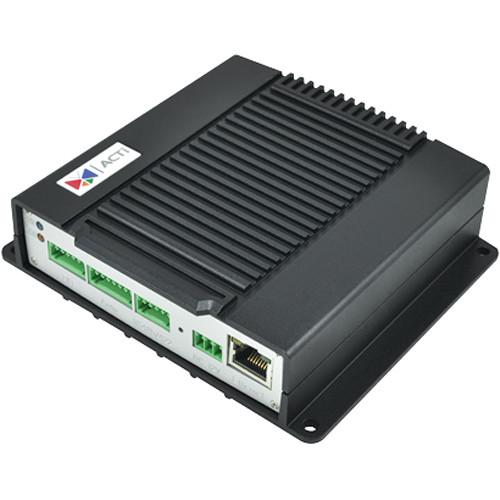

User Manual for ACTi V23 4-Channel 960H D1 H.264 Video Encoder Click to enlarge the picture
Contents of the user manual for the ACTi V23 4-Channel 960H D1 H.264
- Product category: Video Encoders & Decoders ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Video Encoders & Decoders
|
User manual for the ACTi V23 4-Channel 960H D1 H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description - Key Features
-
- 25/30 fps at full D1 resolution
- Selectable H.264 HP, MJPEG compressions
- Two-way audio
- Video motion detection
- Digital input and digital output
- Serial ports for PTZ control
- Analog video output
UPC: 888034004900 Brochure PDF 942.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi V23 4-Channel 960H D1 H.264 Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi V23 Specs | | | Device Type | Video server | | Video Channels | 4 | | Audio Channels | 4 | | TV System | NTSC/PAL | | Image Resolution | 720x480 (NTSC), 720x576 (PAL), 960x576 (PAL), 960x480 (NTSC) | | Compression Format | MJPEG, G.711, H.264 | | Package Content | Video server | | Compliant Standards | EN55024, EN55022 Class B, FCC Part 15 B | | Warranty | 3 years | | | | Frame Rate | 25 fps (PAL), 30 fps (NTSC) | | Features | Motion detection, Pan/Tilt/Zoom support, dual stream support, microSDHC memory card slot, ONVIF compliant | | | | DDNS Support | Yes | | Network Interfaces | Ethernet 10Base-T/100Base-TX | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, PPPoE, IGMP | | Features | Power over Ethernet (PoE), ONVIF support | | | | Video Input Ports | BNC x 4 | | Video Input Signal Level | 1.0Vp-p 75 Ohm | | Audio Input Ports | Terminal block | | Audio Output Ports | Terminal block | | Network Port | 10/100Base-T | | Other Ports | Serial RS-422/485 x 1 | | | | Power Consumption | 3.84 Watt | | | | Width | 5.4 in | | Depth | 4.8 in | | Height | 1.4 in | | Weight | 16.29 oz | | | | Min Operating Temperature | 14
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
