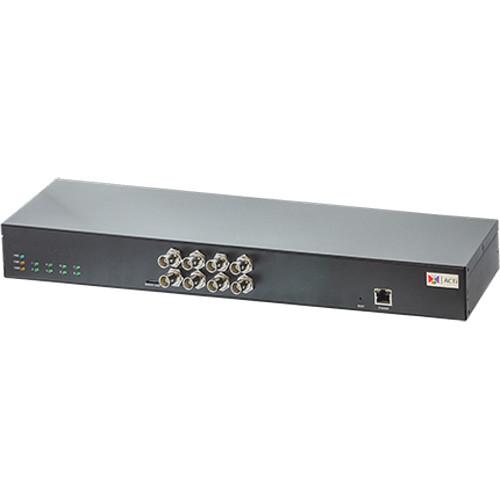

User Manual for ACTi V31 8-Channel Video Encoder Click to enlarge the picture
Contents of the user manual for the ACTi V31 8-Channel Video Encoder
- Product category: Video Encoders & Decoders ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Video Encoders & Decoders
|
User manual for the ACTi V31 8-Channel Video Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Bring your analog camera setup into the digital IP-based age with this V31 8-Channel Video Encoder from ACTi. Equipped with 8 BNC inputs and the ability to compress footage using either the H.264 or MJPEG formats, this 1U 19" rack-mountable encoder is an exceptionally useful tool for integration of your analog cameras. The encoder will even support high 960H 960 x 480 resolutions at up to 30 fps, as well as full D1, both options in NTSC or PAL standards. Simultaneous dual streams can be set up as needed and the system has RS-485/422 ports for completed PTZ camera control.
For intelligent features, the V31 has video motion detection, as well as a multitude of other options that can set off alarms, making sure you have good watch over your locations. Two-way audio communication is also possible and the encoder has an RJ-45 Ethernet port for networking. Additionally, it has a microSDHC card slot for local storage, is ONVIF compliant, and has a standard 100-240 VAC power input. UPC: 888034005976 In the Box ACTi V31 8-Channel Video Encoder Limited 3-Year Warranty Guides & Manuals uwfzwvyfsvyqxsadxaeeuvrr Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi V31 8-Channel Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ACTi V31 8-Channel Video Encoder can be downloaded in PDF format at the link stated below.
Technical parametersACTi V31 Specs | Type | Video Encoder | Number of Channels | 8 | | Protocol | Pelco-D, Pelco-P, Dynacolor | Control | Remotely manual control; 32 preset points | | Compression | H.264 HP, MJPEG | Maximum Frame Rate vs. Resolution | 30 fps at 960 x 480 (NTSC) 25 fps at 960 x 576 (PAL) 30 fps at 720 x 480 (Full D1, NTSC) 25 fps at 720 x 576 (Full D1, PAL) | Multi-Streaming | Simultaneous dual streams based on two configurations | Bit Rate | 28 Kbps to 6 Mbps (per stream) | Bit Rate Mode | Constant, variable | Image Enhancement | Brightness, saturation, contrast, hue, sharpness | Privacy Masking | 4 regions | Text Overlay | User-defined text on video | Image Orientation | Image flip, image mirror | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | Audio In | 8 x Terminal block | Audio Out | 1 x Terminal block | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | Ethernet Port | 1 x Gigabit Ethernet (10/100/1000 Base-T), RJ-45 connector | Security | IP address filtering, HTTPS encryption, password protected user levels, IEEE 802.1X network access control, anonymous login | | Alarm Trigger | Video motion detection (3 regions), external device through digital input, scheduler in minutes, system reboot and booting successfully, video loss, video recovery, storage removed, failed to write storage | Alarm Response | Notify control center, go to PTZ preset point or preset tour, change video settings, command other devices, e-mail notification with snapshots, save video to local storage, upload video or snapshot to FTP server, activate external device through digital output, change motion-detection profile | | Analog Video Input | 8 x CVBS, 1.0 Vpp with 75 ohms BNC connector | Digital Input/Output | 8 x Terminal block | Serial Port | 2 x RS-485/RS-422, terminal block | Local Storage | microSDHC memory card slot (card not included) | | Power Source | 100-240 VAC, 50/60 Hz | Power Consumption | 9.36 W | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for built-in power adapter) | | Unified Solution | Fully compatible with ACTi software | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | Operating Conditions | Temperature 14 to 122°F / -10 to 50°C Humidity: 10 to 85% | Dimensions | 17.5 x 1.8 x 5.6" / 44.4 x 4.5 x 14.2 cm | Weight | 3.9 lb / 1.75 kg |
