ACTi V32 16-Channel Video Encoder

Search your instruction manual in PDF to download

User Manual for ACTi V32 16-Channel Video Encoder

Click to enlarge the picture
ACTi V32 16-Channel Video Encoder Contents of the user manual for the ACTi V32 16-Channel Video Encoder
  • Product category: Video Encoders & Decoders ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Video Encoders & Decoders

User manual for the ACTi V32 16-Channel Video Encoder contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!

Product description

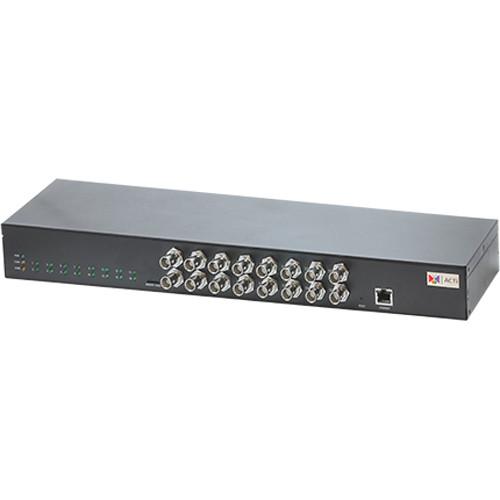

Bring your analog camera setup into the digital IP-based age with this V32 16-Channel Video Encoder from ACTi. Equipped with 16 BNC inputs and the ability to compress footage using either the H.264 or MJPEG formats, this 1U 19" rack-mountable encoder is an exceptionally useful tool for integration of your analog cameras. The encoder will even support high 960H 960 x 480 resolutions at up to 30 fps, as well as full D1, both options in NTSC or PAL standards. Simultaneous dual streams can be set up as needed and the system has RS-485/422 ports for completed PTZ camera control.

For intelligent features, the V32 has video motion detection, as well as a multitude of other options that can set off alarms, making sure you have good watch over your locations. Two-way audio communication is also possible and the encoder has an RJ-45 Ethernet port for networking. Additionally, it has a microSDXC card slot for local storage, is ONVIF compliant, and has a standard 100-240 VAC power input. UPC: 888034005983 In the Box ACTi V32 16-Channel Video Encoder
  • Limited 3-Year Warranty
  • Brochure PDF 1mbsrfestrtvybetfce Table of Contents

    Upload User Manual

    Have you got an user manual for the ACTi V32 16-Channel Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    ACTi V32 Specs

    Type Video Encoder
    Number of Channels 16
    Protocol Pelco-D, Pelco-P, Dynacolor
    Control Remotely manual control; 32 preset points
    Compression H.264 HP, MJPEG
    Maximum Frame Rate vs. Resolution 30 fps at 960 x 480 (NTSC)
    25 fps at 960 x 576 (PAL)
    30 fps at 720 x 480 (Full D1, NTSC)
    25 fps at 720 x 576 (Full D1, PAL)
    Multi-Streaming Simultaneous dual streams based on two configurations
    Bit Rate 28 Kbps to 6 Mbps (per stream)
    Bit Rate Mode Constant, variable
    Image Enhancement Brightness, saturation, contrast, hue, sharpness
    Privacy Masking 4 regions
    Text Overlay User-defined text on video
    Image Orientation Image flip, image mirror
    Compression 8 kHz, mono, PCM, 16-bit encoding, G.711
    Audio In 16 x Terminal block
    Audio Out 1 x Terminal block
    Ethernet Port 1 x Gigabit Ethernet (10/100/1000 Base-T), RJ-45 connector
    Security IP address filtering, HTTPS encryption, password protected user levels, IEEE 802.1X network access control, anonymous login
    Alarm Trigger Video motion detection (3 regions), external device through digital input, scheduler in minutes, system reboot and booting successfully, video loss, video recovery, storage removed, failed to write storage
    Alarm Response Notify control center, go to PTZ preset point or preset tour, change video settings, command other devices, e-mail notification with snapshots, save video to local storage, upload video or snapshot to FTP server, activate external device through digital output, change motion-detection profile
    Analog Video Input 16 x CVBS, 1.0 Vpp with 75 ohms BNC connector
    Digital Input/Output 16 x Terminal block
    Serial Port 2 x RS-485/RS-422, terminal block
    Local Storage microSDXC memory card slot (card not included)
    Power Source 100-240 VAC, 50/60 Hz
    Power Consumption 9.36 W
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for built-in power adapter)
    Unified Solution Fully compatible with ACTi software
    ISV Integration Software Development Kit (SDK) available; ONVIF compliant
    Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
    Operating Conditions Temperature 14 to 122°F / -10 to 50°C
    Humidity: 10 to 85%
    Dimensions 17.5 x 1.8 x 5.6" / 44.4 x 4.5 x 14.2 cm
    Weight 4.2 lb / 1.9 kg
    Package Weight 6.55 lb
    Box Dimensions (LxWxH) 19.6 x 10.0 x 4.2"
