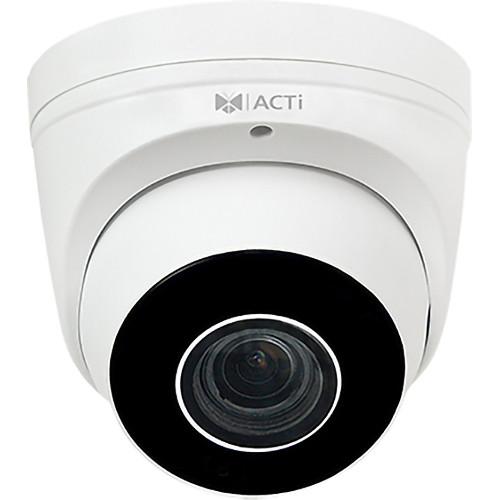

User Manual for ACTi Z82 4MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi Z82 4MP Outdoor Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Z82 4MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Z82 Outdoor Network Dome Camera from ACTi is a 1/3" progressive-scan CMOS sensor camera that supports a resolution of up to 2592 x 1520 at 20 fps. 30 adaptive IR LEDs provide up to 98' of night vision. This camera has a 2.7-12mm lens with a 4.4x zoom and an aperture of f/1.4. It features a horizontal viewing angle between 91 to 27° as well as a built-in microphone for audio. The microSDHC memory card slot supports a capacity of up to 128GB. This camera can be powered using PoE or a 12 VDC adapter (sold separately). It is ONVIF-compliant and features IP67 weatherproof protection. This camera is fully compatible with ACTi software, and an SDK is available. - 120 dB extreme wide dynamic range, white balance, brightness, saturation, contrast, sharpness (auto), automatic gain control, 2D and 3D digital noise reduction, and defogging image enhancement
- Privacy mask for eight configurable regions
- Image flip, mirror, and rotation
In the Box ACTi Z82 4MP Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Z82 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Z82 Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.7 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.4x | | Lens Field of View | Horizontal: 91 to 27° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.02 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/6 Seconds | | | | Streaming Resolution | 2592 x 1520 at 20 fps
2560 x 1440 at 25 fps
2048 x 1520 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, L2TP, NTP, PPPoE, RTCP, RTP, RTSP, SIP (SIPS), SMTP, TCP, UDP, UPnP | | | | Analytics | Built-in | | Event Trigger | Yes | | Event Action | Notification, Alarm | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360°
Remote Tilt: 75° | | I/O Connections | 1 x Power
1 x RJ45 | | IR Range | 98.43' / 30 m | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 8.16 W
PoE: 8.16 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 95% | | IP Rating | IP67 | | Dimensions |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
