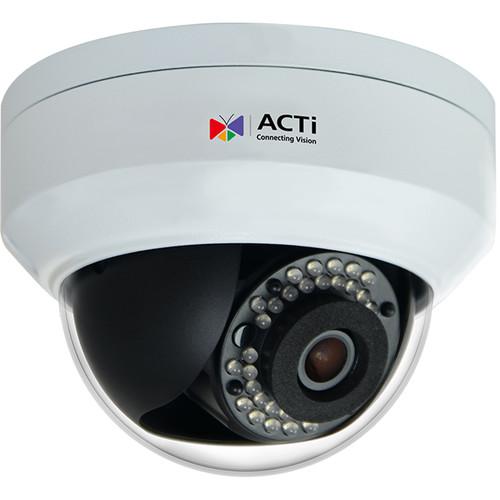

User Manual for ACTi Z91 4MP Outdoor Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi Z91 4MP Outdoor Network Mini
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Z91 4MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Z91 4MP Outdoor Network Mini Dome Camera from ACTi features a 1/3" progressive scan CMOS sensor and a 2.8mm fixed lens for capturing videos at a maximum resolution of 2592 x 1520. This day/night camera provides 24-hour surveillance thanks to a removable IR-cut filter and two built-in adaptive IR LEDs with a range of up to 98.4'. The Superior Low Light Sensitivity and extreme Wide Dynamic Range (120 dB) enhance the image quality, and provide clear and crisp images in low-light environments. The camera is enclosed in an IP67- and IK10-rated housing. - 1/3" progressive scan CMOS sensor offers a maximum resolution of 4MP
- Fixed 2.8mm f/2.0 wide-angle lens
- Day/night functionality with mechanical IR-cut filter
- SLLS (Superior Low Light Sensitivity) and adaptive IR LED
- Extreme Wide Dynamic Range (120 dB)
- Frame rates of up to 30 fps at 2048 x 1520 resolution
- Supports ONVIF integration
- IP67- and IK10-rated housing
UPC: 888034010000 In the Box ACTi Z91 4MP Outdoor Network Mini Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Z91 4MP Outdoor Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Z91 Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Effective Pixels (H x V) | 2688 x 1520 (4.09 MP) | | Day/Night | Yes, via mechanical IR cut filter | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.02 lux (f/2.0, AGC on)
B&W: 0 lux (IR LED on) | | IR LED | Adaptive IR LED | | IR Working Distance | 98.4' / 30 m at 0 lux, 30 IRE, gain 255, auto-shutter mode | | Electronic Shutter | 1/6 to 1/100,000 sec | | S/N Ratio | 55 dB | | | | Focal Length / Aperture | 2.8mm | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 101.8° | | Viewing Angle Adjustment | Pan:
