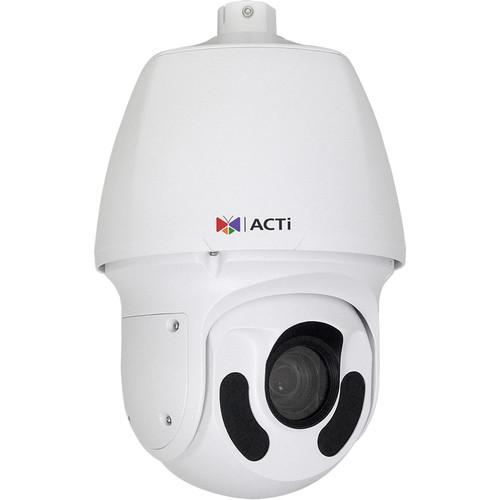

User Manual for ACTi Z950 2MP Outdoor PTZ Network Dome Camera with 5.2-104mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi Z950 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi Z950 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Z950 2MP Outdoor PTZ Network Dome Camera from ACTi utilizes a 1/2.8" progressive scan CMOS sensor and features a 5.2-104mm varifocal lens to capture video at a resolution up to 2MP. It supports H.265, H.264 (Baseline/Main/High profile), and MJPEG compression formats with simultaneous triple streaming.
The camera features advanced wide dynamic range and low light sensitivity. It comes with a built-in microSDHC/SDXC card slot for on-board storage (card not included). With its IP66-rated weather-resistant and IK10-rated vandal-resistant metal housing, this camera is suitable for outdoor applications. -
- 2MP resolution
- 20x optical zoom
- Day/Night
- Low light sensitivity
- Adaptive IR LED
- IP66-rated weather resistance
- IK10-rated vandal-resistant metal casing
- Advanced wide dynamic range
UPC: 888034010246 Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi Z950 2MP Outdoor PTZ Network Dome Camera with 5.2-104mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Z950 Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Resolution | 2 MP | | Day/Night | Yes | | Minimum Illumination | Color: 0.03 lux
B&W: 0 lux (IR LED On) | | Mechanical IR Cut Filter | Yes | | IR LED | Adaptive IR LED | | Embedded Analytics | 328' (100 m) | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 5.2-104mm | | Aperture | f/1.5 to f/3.0 | | Zoom Ratio | 20x optical | | Focus | Auto | | Lens Mount | Board | | Horizontal Viewing Angle | 61.9 to 3.5° | | | | Manual Panning Speed | 0.1 to 240°/sec, 0.1 to 160°/sec | | Preset Panning Speed | 0 to 300°/sec, 0 to 240°/sec | | Panning Range | 360° endless | | Tilting Range | -15 to 90° | | | | Compression | H.265, H.264 (Baseline/Main/High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 1920 x 1280 at 30 fps
1280 x 720 at 30 fps | | Multi-Streaming | Simultaneous triple streams | | Wide Dynamic Range | Advanced | | Digital Noise Reduction | 2D + 3D-DNR | | | | Type | 2-way, Mic-in, Line-in, Line-out | | | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Digital Input/Output | 1 x input
1 x output | | | | Power Source | 24 VDC, 24 VAC | | Power Consumption | 42 W (AC, heater, and IR On) | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Case Material | Metal | | Vandal Resistant | IK10 | | IP Rating | IP66 | | Heater | Yes | | Approvals | CE, FCC | | Dimensions (Ø x H) | 8.9 x 14.2" / 22.7 x 35.9 cm | | Weight | 11.6 lb / 5.3 kg |
