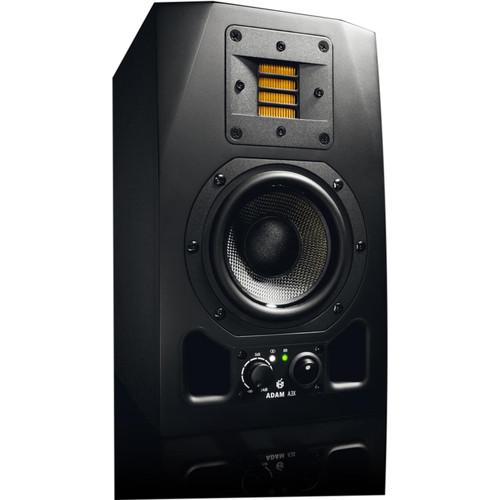

User Manual for Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio A3X 4.5" 50W
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio A3X 4.5" 50W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description The A3X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio from a compact design. The speaker features a 4.5" carbon fiber woofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own 25W amplifier for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.
The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. A unique Stereolink connector, consisting of 2 RCA jacks, allows you to bypass a second stereo channel to a second speaker. This lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily. In addition to the main gain control on the front panel, the A3X also features a tweeter gain control on the rear panel. - Compact design, ideal for home, project, and mobile studios
- 4.5" carbon fiber woofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
- Each driver is powered by its own 25W amplifier for strong, distortion-free performance
- Dual bass ports on the front of the cabinet help to extend the bass response
- XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
- Unique Stereolink connector lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily
- Front-panel gain control and rear-panel tweeter gain control for precise adjustments
In the Box Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor (Single) Power Cable Limited 2-Year Warranty User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio A3X Specs | Low Frequency Driver | 4.5" (114mm) Carbon Fiber Woofer | | High Frequency Driver | X-ART Tweeter | | LF Amplifier | 25W RMS | | HF Amplifier | 25W RMS | | Crossover | 2.8kHz | | Frequency Range | 60Hz - 50kHz | | Maximum Sound Pressure Level (SPL) | 106dB, Peak | | Connectors | 1 x XLR Input
1 x RCA Input
1 x RCA Stereolink Connector (2 Jacks)
1 x Power Input | | Input Impedance | 10 kOhms | | Controls and Indicators | 1 x Power Switch
1 x Gain Control
1 x Tweeter Gain Control | | Shielded | No | | Dimensions (HxWxD) | 10 x 6 x 7.5" (252 x 150 x 185mm) | | Weight | 10.1 lbs (4.6kg) | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 16.0 x 12.2 x 10.4" |
