User manual
Adam Professional Audio A3X 4.5" Studio

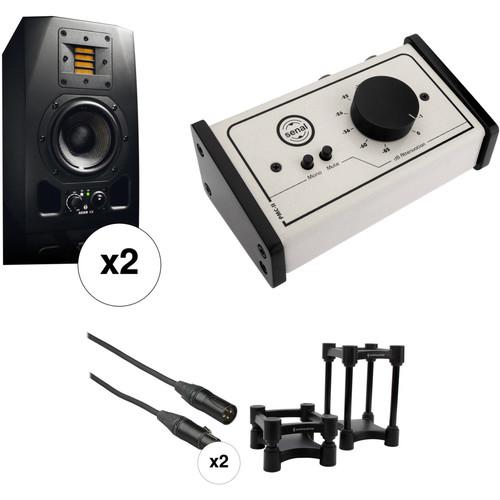

User Manual for Adam Professional Audio A3X 4.5" Studio Monitors, Isolators, and Monitor Controller Kit

• Product category: Studio Monitors Adam Professional Audio
• Brand: Adam Professional Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Adam Professional Audio Studio Monitors

Product description

• 2 x Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor (Single) The A3X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio from a compact design. The speaker features a 4.5" carbon fiber woofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own 25W amplifier for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.

  The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. A unique Stereolink connector, consisting of 2 RCA jacks, allows you to bypass a second stereo channel to a second speaker. This lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily. In addition to the main gain control on the front panel, the A3X also features a tweeter gain control on the rear panel.
  • Compact design, ideal for home, project, and mobile studios
  • 4.5" carbon fiber woofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
  • Each driver is powered by its own 25W amplifier for strong, distortion-free performance
  • Dual bass ports on the front of the cabinet help to extend the bass response
  • XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
  • Unique Stereolink connector lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily
  • Front-panel gain control and rear-panel tweeter gain control for precise adjustments
• 2 x Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (6') is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.

  Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 98% braided shield offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Cast zinc shell and chuck style strain relief.
  UPC: 847628551169
• Senal PMC-II Passive Monitor Controller The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio.
  Precision Volume Control
  • The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
  Passive Design
  • There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device
  Multiple Inputs
  • XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet
  Multiple Outputs
  • XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications
  Oversize Control Knob
  • The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
  Mute Button
  • A mute button allows you to quickly silence the output
  Mono Button
  • The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
  Steel Housing
  • The PMC-II is a durable and stylish addition to any workstation or studio
  UPC: 847628594135
• IsoAcoustics ISO-L8R130 Small Studio Monitor Isolators (Pair) This pair of IsoAcoustics ISO-L8R130 Small Studio Monitor Isolators prevent the transfer of speaker cabinet energy to surrounding surfaces, effectively isolating the speaker. By allowing the speaker to perform in free space, it's able to sound the way it was intended.

  The height and tilt angle of the ISO-L8R130 are adjustable to optimize speaker positioning relative to the listener. The 2 included sets of height tubing along with 2 sets of end-plug pairs provide 14 steps of height adjustment. The different combinations are used to tilt the speaker up and down. The stand can be assembled and reconfigured repeatedly to establish the ideal position.

  The ISO-L8R130 isolators are designed to support small monitor speakers no heavier than 20 pounds. They can be set to raise your speakers either 2.5" or 8" from the supporting surface. UPC: 627843157434

• 2 x A3X 4.5" 50W Active 2-Way Studio Monitor (Single)
• Power Cable
• Limited 2-Year Warranty

• 2 x Kopul - Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black extarzzftutrudtybwsxcdwbutvwsfeu

• Senal - PMC-II Passive Monitor Controller

• IsoAcoustics - ISO-L8R130 Small Studio Monitor Isolators (Pair) extarzzftutrudtybwsxcdwbutvwsfeu

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor (Single)

  Low Frequency Driver	4.5" (114mm) Carbon Fiber Woofer
  High Frequency Driver	X-ART Tweeter
  LF Amplifier	25W RMS
  HF Amplifier	25W RMS
  Crossover	2.8kHz
  Frequency Range	60Hz - 50kHz
  Maximum Sound Pressure Level (SPL)	106dB, Peak
  Connectors	1 x XLR Input 1 x RCA Input 1 x RCA Stereolink Connector (2 Jacks) 1 x Power Input
  Input Impedance	10 kOhms
  Controls and Indicators	1 x Power Switch 1 x Gain Control 1 x Tweeter Gain Control
  Shielded	No
  Dimensions (HxWxD)	10 x 6 x 7.5" (252 x 150 x 185mm)
  Weight	10.1 lbs (4.6kg)

  Box Dimensions (LxWxH)	16.0 x 12.2 x 10.4"

• 2 x Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	98% Braid
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.8 x 5.9 x 1.1"

• Senal PMC-II Passive Monitor Controller

  Product Type	Monitor controller
  Design	Passive
  Channels	2
  Input Connections	2 x XLR/1/4" (6.3 mm) TRS combo 1/8" (3.5 mm) stereo TRS mini-jack
  Output Connections	2 x XLR 1/8" (3.5 mm) stereo TRS mini-jack
  Line Output Level	Max: 20 dBu
  Output Level	-20 dB
  Output Impedance	600 Ohms
  Input Impedance	10,000 Ohms balanced, 5000 Ohms unbalanced
  Frequency Response	10 Hz to 40 kHz
  Total Harmonic Distortion	0.001%
  Attenuation	85 dB (attenuator) 112 dB (attenuator and mute)
  Controls	Volume knob, mute button, mono button
  Dimensions (H x W x D)	2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm)
  Weight	1.6 lb (726 g)

  Box Dimensions (LxWxH)	8.0 x 3.8 x 3.2"

• IsoAcoustics ISO-L8R130 Small Studio Monitor Isolators (Pair)

  Height	2.5" or 8" (6.4 cm or 20.3 cm)
  Width	5.1" (12.6 cm)
  Depth	6" (15.3 cm)
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	11.7 x 6.9 x 4.6"
