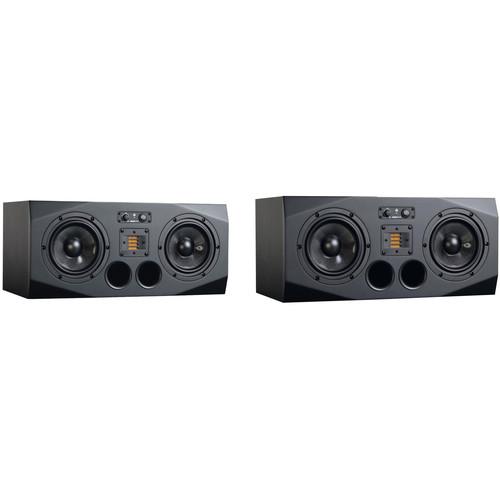

Product description This Adam Professional Audio A77X 3-Way Active Studio Monitor Kit from B&H combines an A77XL left speaker and an A77XR right speaker to create a horizontally designed monitoring system, which is optimized for right/left orientation. It provides engineers and musicians with compression-free sound reproduction, tight low-ends, and three-dimensional realism for both near-field and mid-field monitoring, in professional recording studios, mastering suites, post-production facilities or live broadcast trucks. Each speaker features a single X-ART tweeter with a frequency-response that extends to 50 kHz, and two 7" woofers that produce sub-bass frequencies down to 38 Hz. The tri-amplified design allows for the woofers and tweeter to be driven independently, and delivers up to 250W RMS per channel. - Adam Professional Audio A77XR 3-Way Active Studio Monitor (Right)
- ADAM A77X Near-/Midfield Monitor
The Adam A77XR 3-Way Active Studio Monitor (Right) is a horizontally designed, dual woofer near-field solution for recording, mixing and mastering music, film, video and other scenarios that require horizontal studio audio monitoring. The Adam A77XR features the driver technology implemented in the Adam A7X vertical studio monitors. Both woofers in the A77XR deliver sub-bass frequencies down to 38 Hz, however one of the woofers is crossed-over to deliver mid-range frequencies as well.Its X-ART tweeter delivers extended frequency response up to 50 kHz, resulting in pristine, detailed and accurate high frequencies that are well suited for high-resolution audio of 96 and 192 kHz. The tweeter and woofers are independently amplified with 100W (RMS) amplifiers driving each of the woofers and a 50W (RMS) amplifier driving the proprietary X-ART tweeter.There are balanced XLR and unbalanced RCA connections on the rear, along with gain and shelf controls for frequency contouring. The front panel features a power switch and volume control dial. The A77XR is designed for right side orientation and needs to be paired with the A77XL for accurate A/B orientation and stereo imaging. - Dual horizontally mounted sub-woofer drivers. Mid-range frequencies delivered from one of the installed drivers
- Adam X-ART extended frequency tweeter produces high frequencies up to 50 kHz
- Sub-frequencies as low as 38 Hz
- Tri-amplified design with woofers and X-ART tweeter driven independently
- Balanced XLR and unbalanced RCA input
- Frequency gain and shelving controls on the rear panel
- Power and input volume control on the front panel
- Adam Professional Audio A77XL 3-Way Active Studio Monitor (Single/Left)
- ADAM A77X Near-/Midfield Monitor
The Adam A77XL 3-Way Active Studio Monitor (Single/Left) is a horizontally designed, dual woofer near-field solution for recording, mixing and mastering music, film, video and other scenarios that require horizontal studio audio monitoring. The Adam A77XL features the driver technology implemented in the Adam A7X vertical studio monitors. Both woofers in the A77XL deliver sub-bass frequencies down to 38 Hz, however one of the woofers is crossed-over to deliver mid-range frequencies as well.Its X-ART tweeter delivers extended frequency response up to 50 kHz, resulting in pristine, detailed and accurate high frequencies that are well suited for high-resolution audio of 96 and 192 kHz. The tweeter and woofers are independently amplified with 100W (RMS) amplifiers driving each of the woofers and a 50W (RMS) amplifier driving the proprietary X-ART tweeter.There are balanced XLR and unbalanced RCA connections on the rear, along with gain and shelf controls for frequency contouring. The front panel features a power switch and volume control dial. The A77XL is designed for single orientation, however you can pair it with the A77XR for accurate A/B orientation and stereo imaging. - Dual horizontally mounted sub-woofer drivers. Mid-range frequencies delivered from one of the installed drivers
- Adam X-ART extended frequency tweeter produces high frequencies up to 50 kHz
- Sub-frequencies as low as 38 Hz
- Tri-amplified design with woofers and X-ART tweeter driven independently
- Balanced XLR and unbalanced RCA input
- Frequency gain and shelving controls on the rear panel
- Power and input volume control on the front panel
In the Box - A77XR 3-Way Active Studio Monitor (Right) dzvzxwxwewcvxwzu
- Power Cord
- Limited 5-Year Warranty
- A77XL 3-Way Active Studio Monitor (Single/Left)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio A77X 3-Way Active Studio Monitor Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Adam Professional Audio A77XR 3-Way Active Studio Monitor (Right)
| Subwoofer | Number: 1:1
Basket: 7" (175 mm) / 7" (175 mm)
Voice Coil: 1.5" (38 mm) / 1.5" (38 mm)
Cone Material: Carbon, Rohacell, Glass / Carbon, Rohacell, Glass | | Tweeter | Type: X-ART x 1
Diaphragm Area: 4"² (2420 mm²)
Equivalent Diaphragm: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz (0.17 g) | | Amplifiers | Subwoofer: PWM x 2
Amp Power RMS: 100 W
Amp Power Peak: 150 W
Tweeter: A/B x 1
Amp Power RMS: 50 W
Amp Power Peak: 75 W | | Control Panel | Input Sensitivity: -∞ to +14 dB
High Shelf EQ > 5 kHz: ±6 dB
Low Shelf EQ < 300 Hz: ±6 dB
Tweeter Gain: ±4 dB | | Connections | Rear XLR / RCA (analog) | | Frequency Response | 38 Hz - 50 kHz | | THD | ≤0.5% (90 dB/1 m > 100 Hz) | | Output | ≥114 dB (long term output) | | SPL | ≥122 dB | | Crossover Frequencies | 400 / 3000 Hz | | Input Impedance | 30 kOhms | | Magnetically Shielded | No | | Dimensions (HxWxD) | 9.5 x 21 x 11" (236 x 530 x 280 mm) | | Weight | 28.2 lb (12.8 kg) | | | | Box Dimensions (LxWxH) | 25.5 x 15.9 x 14.9" | - Adam Professional Audio A77XL 3-Way Active Studio Monitor (Single/Left)
| Subwoofer | Number: 1:1
Basket: 7" (175 mm) / 7" (175 mm)
Voice Coil: 1.5" (38 mm) / 1.5" (38 mm)
Cone Material: Carbon, Rohacell, Glass / Carbon, Rohacell, Glass | | Tweeter | Type: X-ART x 1
Diaphragm Area: 4"² (2420 mm²)
Equivalent Diaphragm: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz (0.17 g) | | Amplifiers | Subwoofer: PWM x 2
Amp Power RMS: 100 W
Amp Power Peak: 150 W
Tweeter: A/B x 1
Amp Power RMS: 50 W
Amp Power Peak: 75 W | | Control Panel | Input Sensitivity: -∞ to +14 dB
High Shelf EQ > 5 kHz: ±6 dB
Low Shelf EQ < 300 Hz: ±6 dB
Tweeter Gain: ±4 dB | | Connections | Rear XLR / RCA (analog) | | Frequency Response | 38 Hz - 50 kHz | | THD | ≤0.5% (90 dB/1 m > 100 Hz) | | Output | ≥114 dB (long term output) | | SPL | ≥122 dB | | Crossover Frequencies | 400 / 3000 Hz | | Input Impedance | 30 kOhms | | Magnetically Shielded | No | | Dimensions (HxWxD) | 9.5 x 21 x 11" (236 x 530 x 280 mm) | | Weight | 28.2 lb (12.8 kg) | | | | Box Dimensions (LxWxH) | 25.5 x 16.6 x 14.1" |
