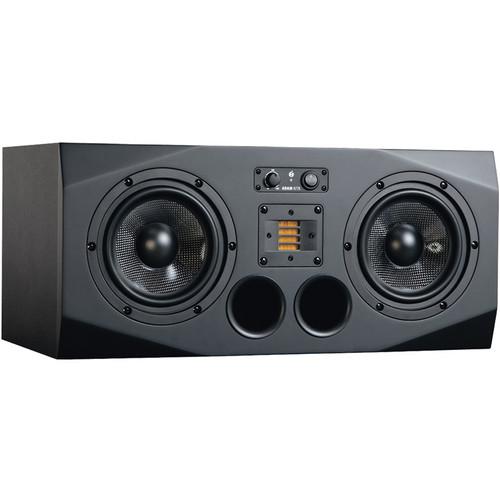

User Manual for Adam Professional Audio A77XR 3-Way Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio A77XR 3-Way Active
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio A77XR 3-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description - ADAM A77X Near-/Midfield Monitor
The Adam A77XR 3-Way Active Studio Monitor (Right) is a horizontally designed, dual woofer near-field solution for recording, mixing and mastering music, film, video and other scenarios that require horizontal studio audio monitoring. The Adam A77XR features the driver technology implemented in the Adam A7X vertical studio monitors. Both woofers in the A77XR deliver sub-bass frequencies down to 38 Hz, however one of the woofers is crossed-over to deliver mid-range frequencies as well.Its X-ART tweeter delivers extended frequency response up to 50 kHz, resulting in pristine, detailed and accurate high frequencies that are well suited for high-resolution audio of 96 and 192 kHz. The tweeter and woofers are independently amplified with 100W (RMS) amplifiers driving each of the woofers and a 50W (RMS) amplifier driving the proprietary X-ART tweeter.There are balanced XLR and unbalanced RCA connections on the rear, along with gain and shelf controls for frequency contouring. The front panel features a power switch and volume control dial. The A77XR is designed for right side orientation and needs to be paired with the A77XL for accurate A/B orientation and stereo imaging. - Dual horizontally mounted sub-woofer drivers. Mid-range frequencies delivered from one of the installed drivers
- Adam X-ART extended frequency tweeter produces high frequencies up to 50 kHz
- Sub-frequencies as low as 38 Hz
- Tri-amplified design with woofers and X-ART tweeter driven independently
- Balanced XLR and unbalanced RCA input
- Frequency gain and shelving controls on the rear panel
- Power and input volume control on the front panel
In the Box Adam Professional Audio A77XR 3-Way Active Studio Monitor (Right) Power Cord Limited 5-Year Warranty User Manual PDF 3.4mbzzzcswdz Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio A77XR 3-Way Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio A77X Specs | Subwoofer | Number: 1:1
Basket: 7" (175 mm) / 7" (175 mm)
Voice Coil: 1.5" (38 mm) / 1.5" (38 mm)
Cone Material: Carbon, Rohacell, Glass / Carbon, Rohacell, Glass | | Tweeter | Type: X-ART x 1
Diaphragm Area: 4"² (2420 mm²)
Equivalent Diaphragm: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz (0.17 g) | | Amplifiers | Subwoofer: PWM x 2
Amp Power RMS: 100 W
Amp Power Peak: 150 W
Tweeter: A/B x 1
Amp Power RMS: 50 W
Amp Power Peak: 75 W | | Control Panel | Input Sensitivity: -∞ to +14 dB
High Shelf EQ > 5 kHz: ±6 dB
Low Shelf EQ < 300 Hz: ±6 dB
Tweeter Gain: ±4 dB | | Connections | Rear XLR / RCA (analog) | | Frequency Response | 38 Hz - 50 kHz | | THD | ≤0.5% (90 dB/1 m > 100 Hz) | | Output | ≥114 dB (long term output) | | SPL | ≥122 dB | | Crossover Frequencies | 400 / 3000 Hz | | Input Impedance | 30 kOhms | | Magnetically Shielded | No | | Dimensions (HxWxD) | 9.5 x 21 x 11" (236 x 530 x 280 mm) | | Weight | 28.2 lb (12.8 kg) | | | | Package Weight | 36.8 lb | | Box Dimensions (LxWxH) | 25.5 x 15.9 x 14.9" |
