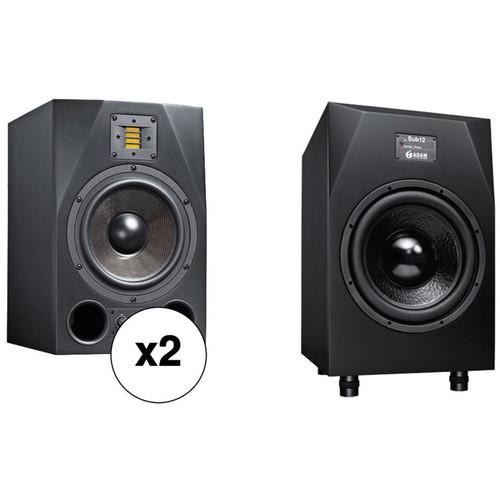

User Manual for Adam Professional Audio A8X-SUB12 Nearfield Monitors & Subwoofer Bundle Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio A8X-SUB12 Nearfield Monitors
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio A8X-SUB12 Nearfield Monitors contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description The Adam Professional Audio A8X-Sub12 Bundle combines several pieces of equipment to give you a comprehensive monitoring solution for your home or professional studio. Included are two AX8 nearfield monitors and one Sub12 subwoofer. The monitors feature X-ART tweeters, an 8.5" carbon fiber/Rohacell midwoofer, and a 200W bi-amped design. The Sub10, on the other hand, is a 300W downward firing subwoofer with a 12" wolf and a frequency range of 22 to 150 Hz. - 2 x Adam Professional Audio A8X 8.5" 200W Active 2-Way Studio Monitor (Single) The A8X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio in a compact design, ideal for small professional studios. The speaker features an 8.5" carbon fiber/rohacell/glass fiber midwoofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own amplifier, combining to provide 200W RMS of total power for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.
The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. In addition to the main gain control on the front panel, the A8X also features a tweeter gain control and a set of high and low shelving controls on the rear panel. - Ideal for use as a near or midfield monitor
- 8.5" carbon fiber/rohacell/glass fiber midwoofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
- The midwoofer is driven by a 150W PWM amplifier while the tweeter is driven by a 50W A/B amplifier for strong, distortion-free performance
- Dual bass ports on the front of the cabinet help to extend the bass response
- XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
- Front-panel gain control and rear-panel tweeter gain control for precise adjustments, plus high and low shelving filter controls
- Adam Professional Audio Sub12 - 300W 12" Active Subwoofer The Sub12 from Adam Audio is a powerful 12-inch subwoofer ideal for use in larger control rooms. It provides a frequency response of 22-150Hz and offers rear-panel gain control and filter adjustment. The Sub12 reflex tubes fire downwards, avoiding noise due to the size and construction ventilation of the unit. Powered by an internal 300W RMS amplifier, the Sub12 offers both XLR and RCA I/O connectors for compatibility with almost any system.
- 12-inch, 300W down-firing subwoofer
- XLR and RCA I/O connectors
In the Box - 2 x A8X 8.5" 200W Active 2-Way Studio Monitor (Single) dreqqvrfxwrezwa
- Power Cable
- Limited 2-Year Warranty Plus 3 Years Optional with Product Registration
- Sub12 - 300W 12" Active Subwoofer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio A8X-SUB12 Nearfield Monitors & Subwoofer Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Adam Professional Audio A8X 8.5" 200W Active 2-Way Studio Monitor (Single)
| | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Unshielded | | Drivers | HF Driver: 1 x / Ribbon Tweeter
LF Driver: 1 x 8.5" / 216 mm Carbon Fiber Woofer | | Amplification | HF Amplifier: Rated at 50 W RMS
LF Amplifier: Rated at 150 W RMS | | | | Frequency Range | 38 Hz to 50 kHz | | Maximum Sound Pressure Level (SPL) | 120 dB | | | | Crossover Frequency | 2.3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (30 kOhms)
1 x RCA Unbalanced Analog Input (30 kOhms) | | | | Dimensions (W x H x D) | 10.0 x 15.5 x 12.5" / 255.0 x 400.0 x 320.0 mm | | Weight | 28.7 lb / 13.0 kg | | | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 15.0" | - Adam Professional Audio Sub12 - 300W 12" Active Subwoofer
| | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 300 W RMS | | Drivers | Full-Range Driver: 1 x 12" / 30.48 cm Paper Cone | | | | Frequency Range | 22 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 118 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Dimensions (W x H x D) | 14.2 x 23.6 x 17.7" / 360.0 x 600.0 x 450.0 mm | | Weight | 57.0 lb / 26.0 kg | | | | Box Dimensions (LxWxH) | 27.9 x 23.5 x 18.5" |
