User Manual for Adam Professional Audio AX 2.1 Bundle with A3X Monitors and SUB7 Subwoofer Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio AX 2.1 Bundle
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
 |
User manual for the Adam Professional Audio AX 2.1 Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description This AX 2.1 Bundle offers two A3X nearfield monitors and a Sub7 subwoofer. The nearfield monitors are active, giving you 4.5" carbon fiber woofers, X-ART tweeters, dual 25W amplifiers, and inputs for XLR and RCA connectors. Each monitor will supply a frequency response of 60 Hz to 50 kHz.
The Sub7, on the other hand, handles bass frequencies down to 31 Hz. A 0°/180° phase switch helps match your sub with your monitors, and the volume and crossover-frequency potentiometers are both motorized. They can be controlled over wireless remote control. When set up correctly, this 2.1 system will give you an accurate representation of your audio, making it suitable for professional applications. - A3X 4.5" 50W Active 2-Way Studio Monitor (Single) The A3X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio from a compact design. The speaker features a 4.5" carbon fiber woofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own 25W amplifier for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.

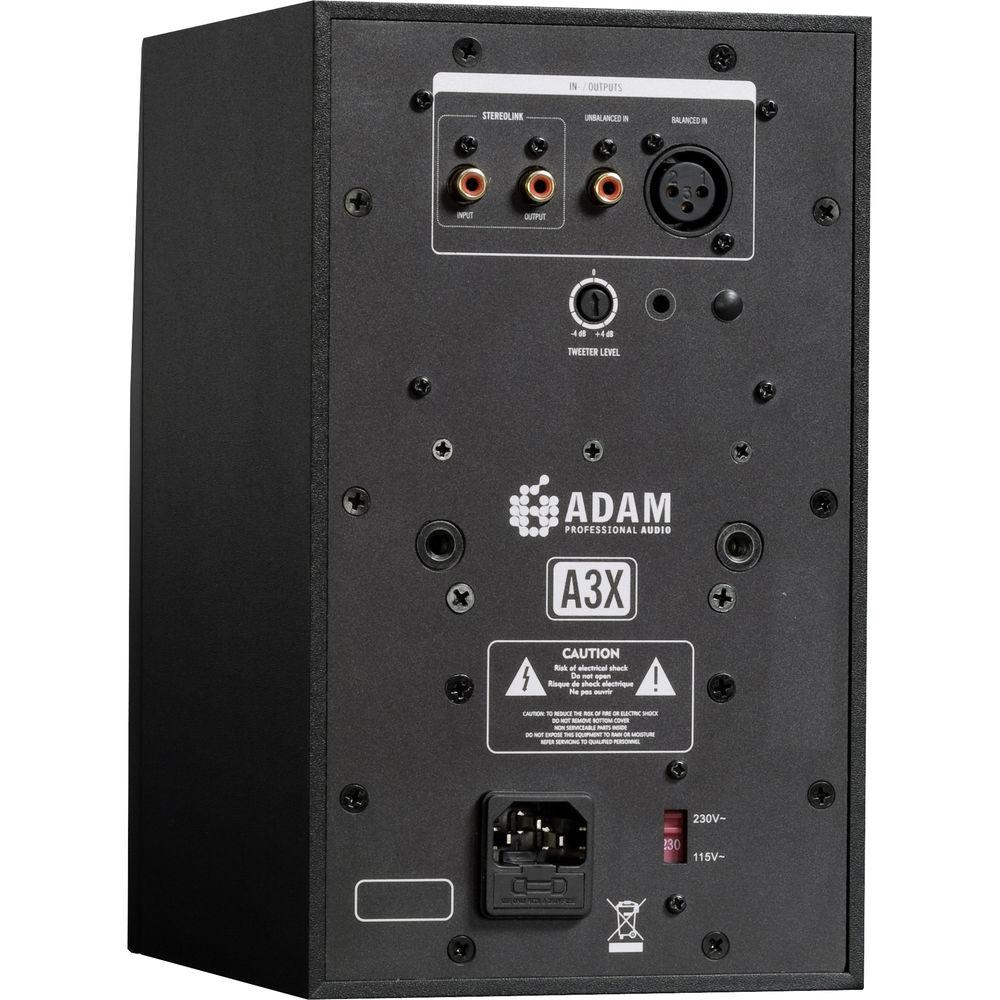

The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. A unique Stereolink connector, consisting of 2 RCA jacks, allows you to bypass a second stereo channel to a second speaker. This lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily. In addition to the main gain control on the front panel, the A3X also features a tweeter gain control on the rear panel. - Compact design, ideal for home, project, and mobile studios
- 4.5" carbon fiber woofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
- Each driver is powered by its own 25W amplifier for strong, distortion-free performance
- Dual bass ports on the front of the cabinet help to extend the bass response
- XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
- Unique Stereolink connector lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily
- Front-panel gain control and rear-panel tweeter gain control for precise adjustments

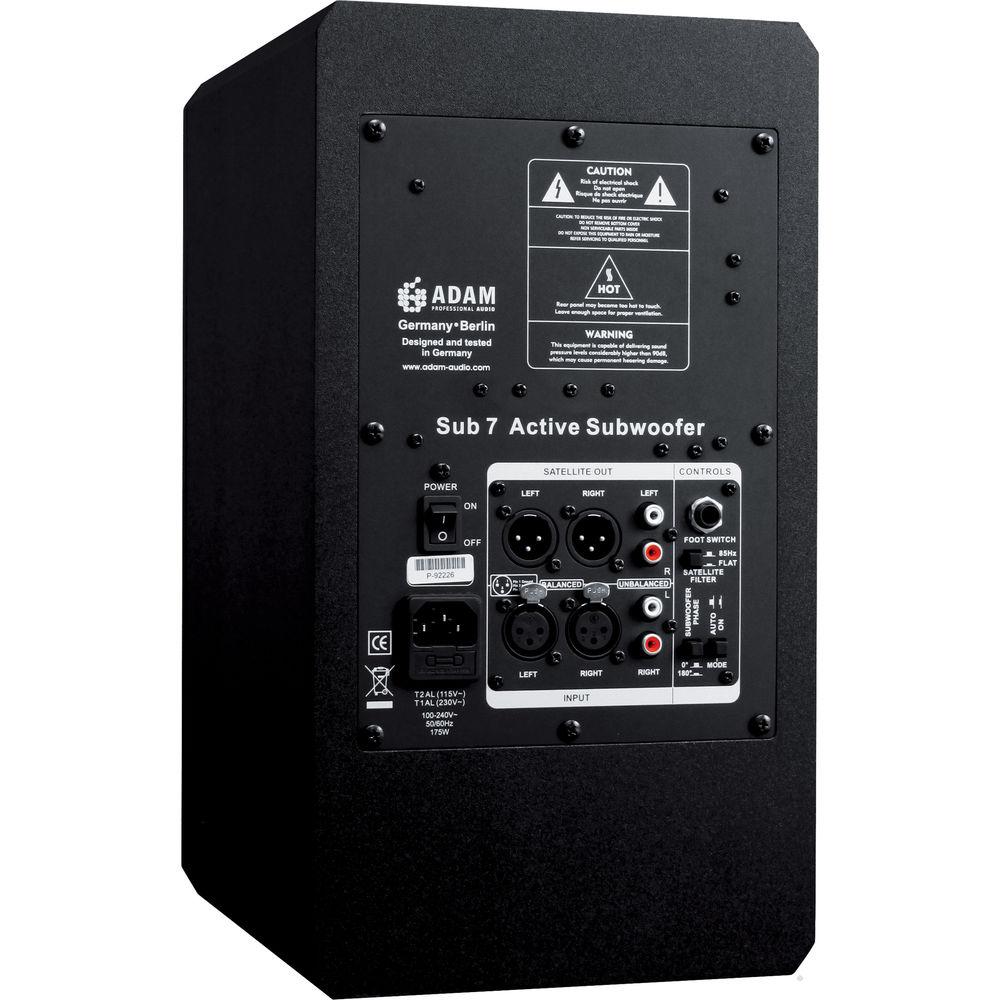

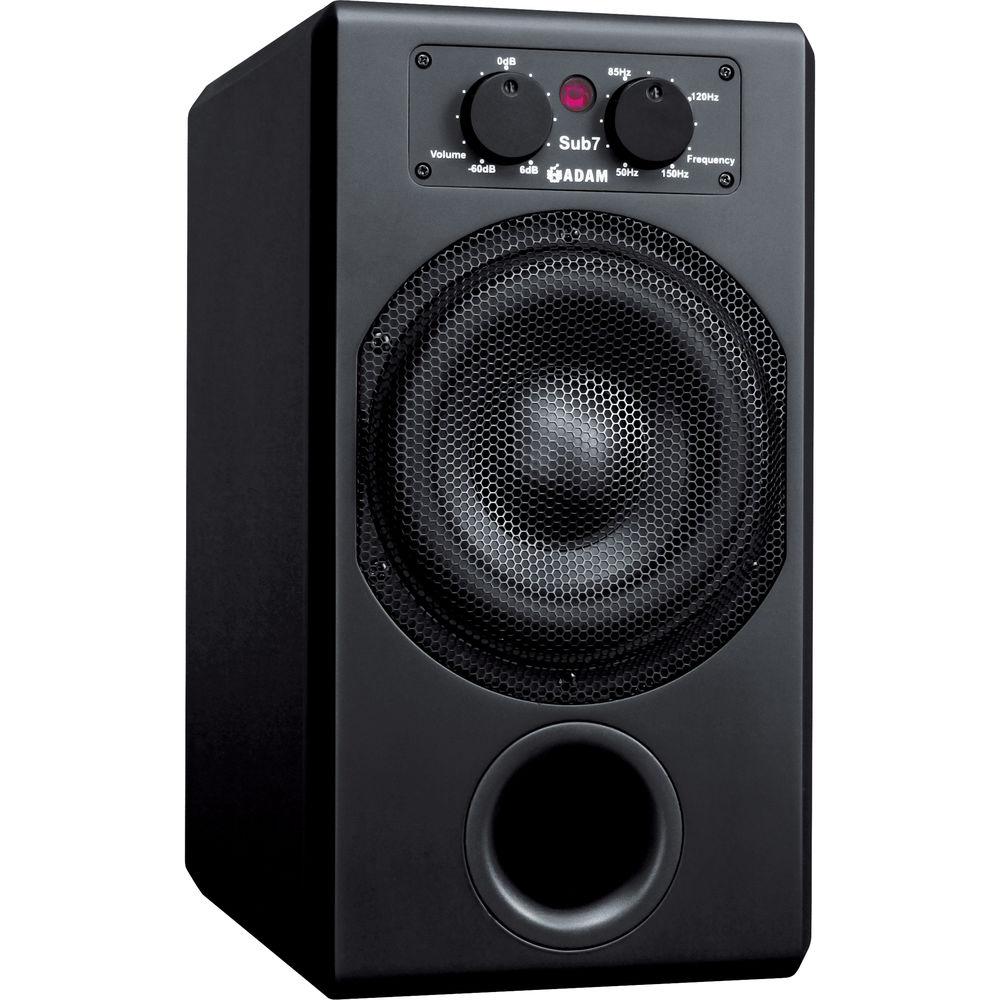

- Sub7 Active Subwoofer for use with A5 Studio Monitors (Flat Back) The SUB7 Active Subwoofer from ADAM is ideal for use with your A5 powered studio monitors. This compact unit has a small footprint making it ideal for situations where space is at a minimum, yet still creates realistic bass frequencies all the way down to 31Hz. Fine tuning your Sub7 is accomplished through the 0/180° phase switch and 85Hz high-pass filter. Both fronted mounted potentiometers are motorized for effortless control of volume and crossover frequency with the wireless remote control.
- Motorized volume and crossover frequency potentiometers can be controlled via the front panel or wireless remote control
- Small footprint design realistically produces frequencies all the way down to 31Hz
In the Box Bundle Items 2 x A3X 4.5" 50W Active 2-Way Studio Monitor (Single) edtfutzfzbft Sub7 Active Subwoofer for use with A5 Studio Monitors (Flat Back)
Also Includes - Limited 3-Year Warranty with 2-Year Extension upon Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio AX 2.1 Bundle with A3X Monitors and SUB7 Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - A3X 4.5" 50W Active 2-Way Studio Monitor (Single)
| Low Frequency Driver | 4.5" (114mm) Carbon Fiber Woofer | | High Frequency Driver | X-ART Tweeter | | LF Amplifier | 25W RMS | | HF Amplifier | 25W RMS | | Crossover | 2.8kHz | | Frequency Range | 60Hz - 50kHz | | Maximum Sound Pressure Level (SPL) | 106dB, Peak | | Connectors | 1 x XLR Input
1 x RCA Input
1 x RCA Stereolink Connector (2 Jacks)
1 x Power Input | | Input Impedance | 10 kOhms | | Controls and Indicators | 1 x Power Switch
1 x Gain Control
1 x Tweeter Gain Control | | Shielded | No | | Dimensions (HxWxD) | 10 x 6 x 7.5" (252 x 150 x 185mm) | | Weight | 10.1 lbs (4.6kg) | | | | Box Dimensions (LxWxH) | 16.0 x 12.2 x 10.4" | - Sub7 Active Subwoofer for use with A5 Studio Monitors (Flat Back)
| | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 140 W RMS
210 W Peak | | Drivers | Full-Range Driver: 1 x 7" / 17.78 cm Cone | | | | Frequency Range | 31 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 107 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Female Analog Input (10 kOhms)
2 x 3-Pin XLR Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output
1 x 1/4" (6.3 mm) TS Analog Input 1/4" Input is for Footswitch Only | | | | Dimensions (W x H x D) | 7.8 x 14.6 x 11.0" / 200.0 x 371.0 x 280.0 mm | | Weight | 17.6 lb / 8.0 kg | | | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 13.0" |
