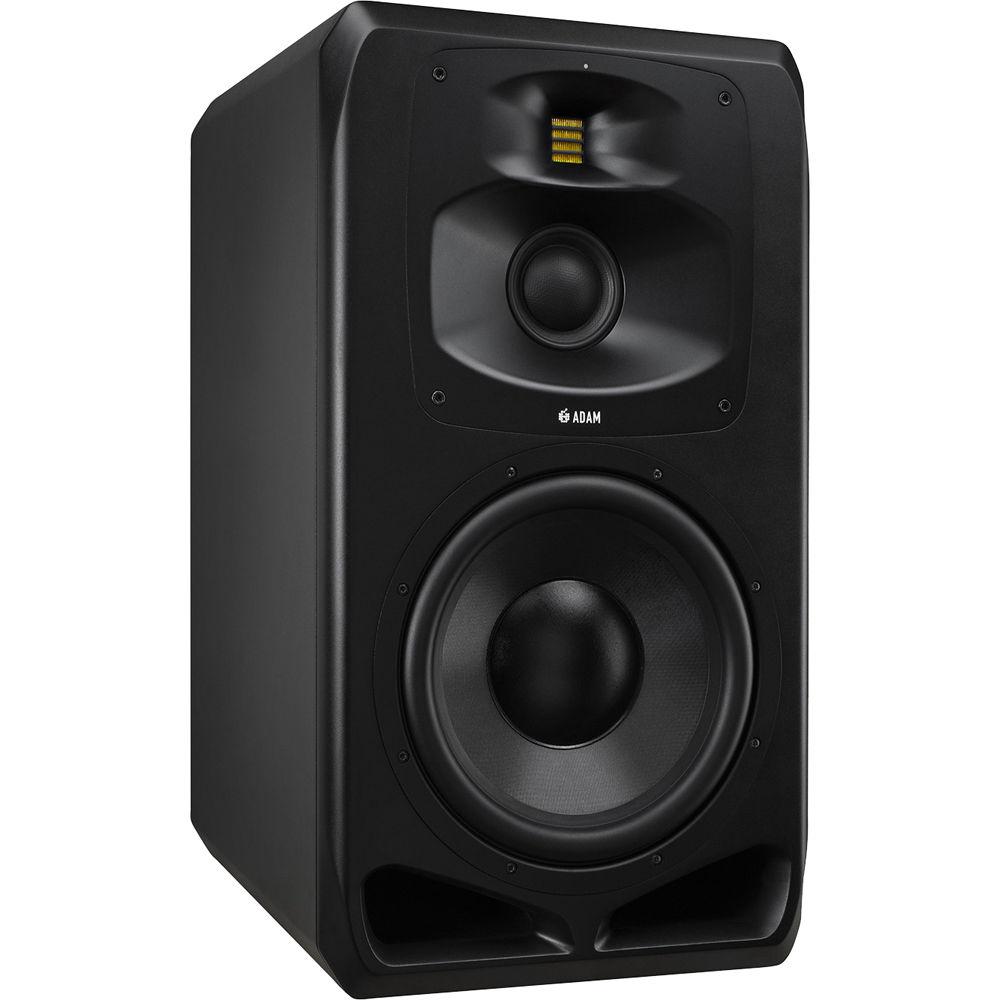

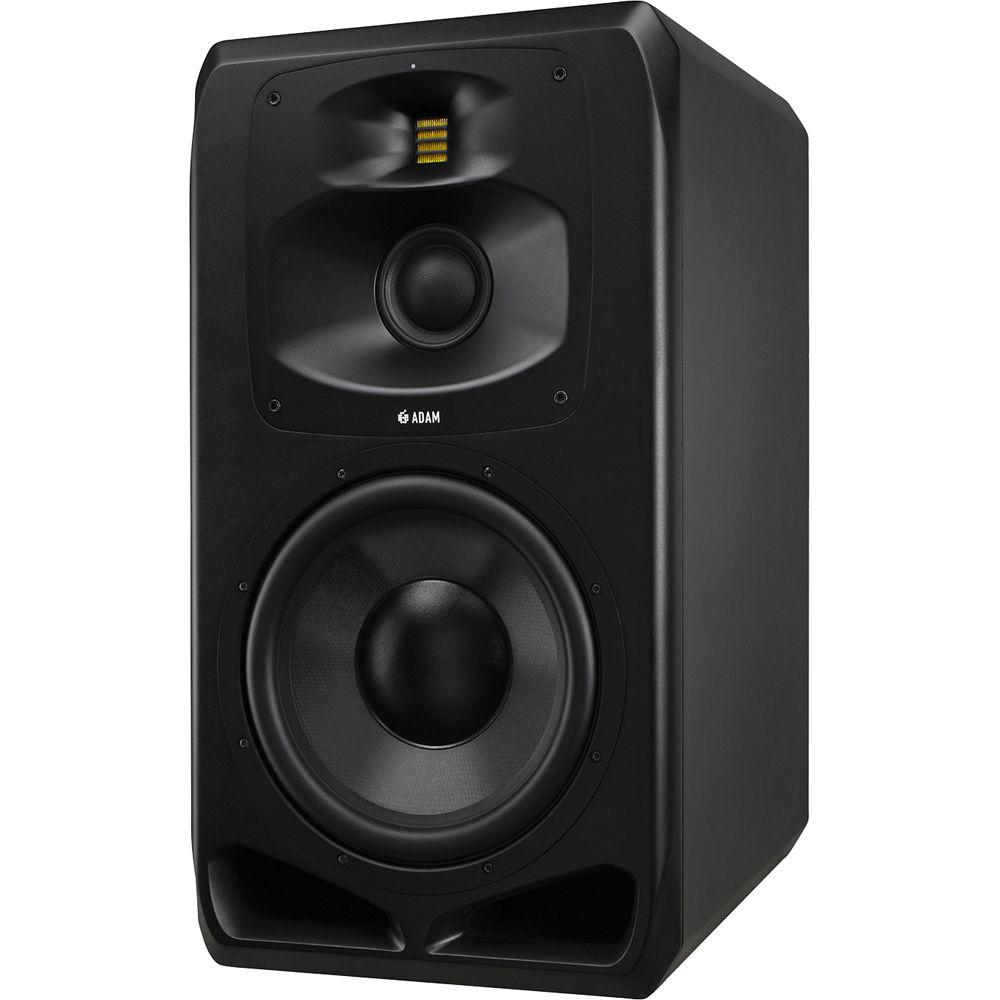

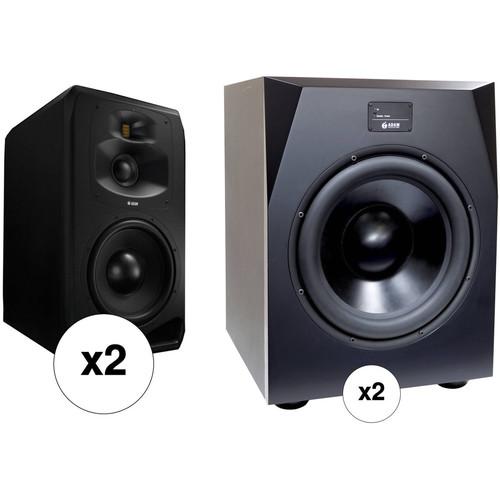

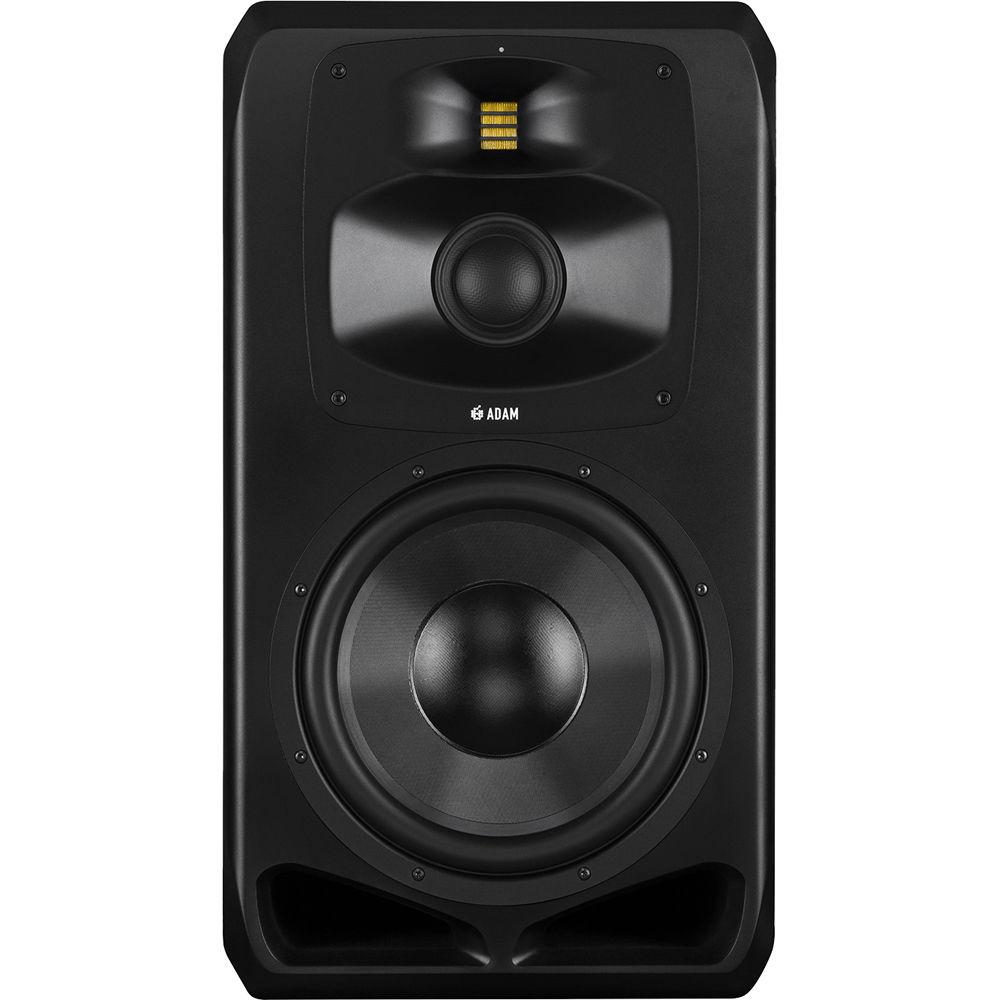

Product description The Adam Professional Audio Dresden Room bundles together two S5V active midfield monitors with two SUB15 subwoofers, giving you a matched 2.2 system for mixing and mastering applications. The S5V three-way monitors offer a 12" HexaCone woofer, a 4" dome/cone hybrid midrange driver, and an S-ART tweeter with an HPS waveguide. It provides a frequency range of 26 Hz to 50 kHz.

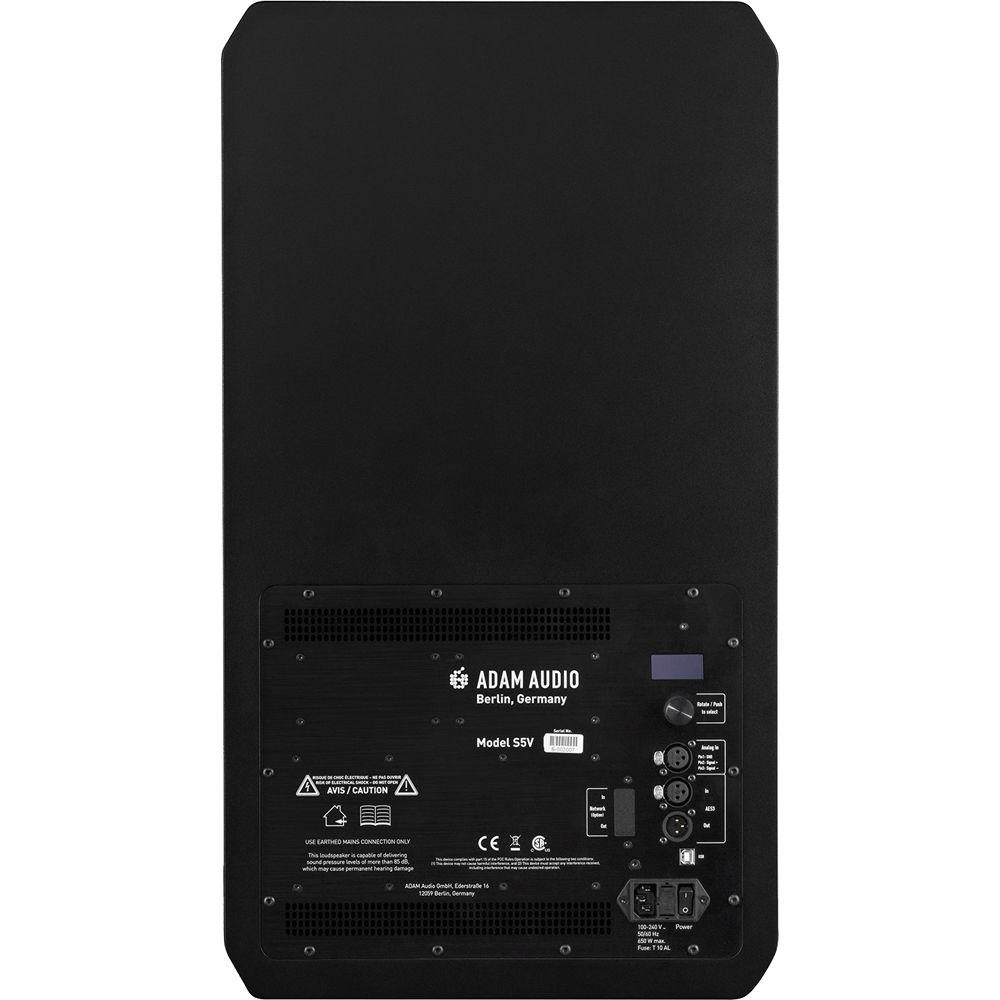

The SUB15 has an aluminum membrane 15" woofer, a 100mm voice coil, and a frequency response that extends down to 20 Hz. The crossover range for the sub is adjustable from 50 Hz to 150 Hz, making it flexible for your room's particular circumstances. When set up correctly, these monitors will give you an accurate representation of your audio at various levels, making them suitable for professional applications. - 2 x Adam Professional Audio S5V Active Three-Way 12" Main/Midfield Studio Monitor (Vertical, Single) The S5V from Adam Professional Audio is an active studio reference monitor designed for vertical orientation in medium-sized and large control rooms. Capable of delivering 1100W RMS of cumulative amp power, it features a 12” HexaCone woofer, 4” dome/cone hybrid midrange driver, and handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.Developed for transparency, the S5V’s frequency response is an impressive 26 Hz – 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S5V’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.
-
- 12" ELE (Extended Linear Excursion) HexaCone woofer
- Redesigned bass reflex tubes minimize resonance and signal loss
- 4" carbon composite DCH (Dome/Cone Hybrid) midrange driver
- Aluminum MPS (Midrange Propagation System) waveguide
- S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
- 1100W RMS cumulative power via three PWM (Class D) amplifiers
- 700W woofer amp
- 300W midrange amp
- 100W tweeter amp
- 26 Hz - 50 kHz frequency response
- Low harmonic distortion
- Adjustable input sensitivity and output level
- 6-band parametric equalizer with HPF and LPF filters
- Variable delay for timing adjustment
- XLR analog and AES3 digital inputs
- USB Type-A for remote access via computer

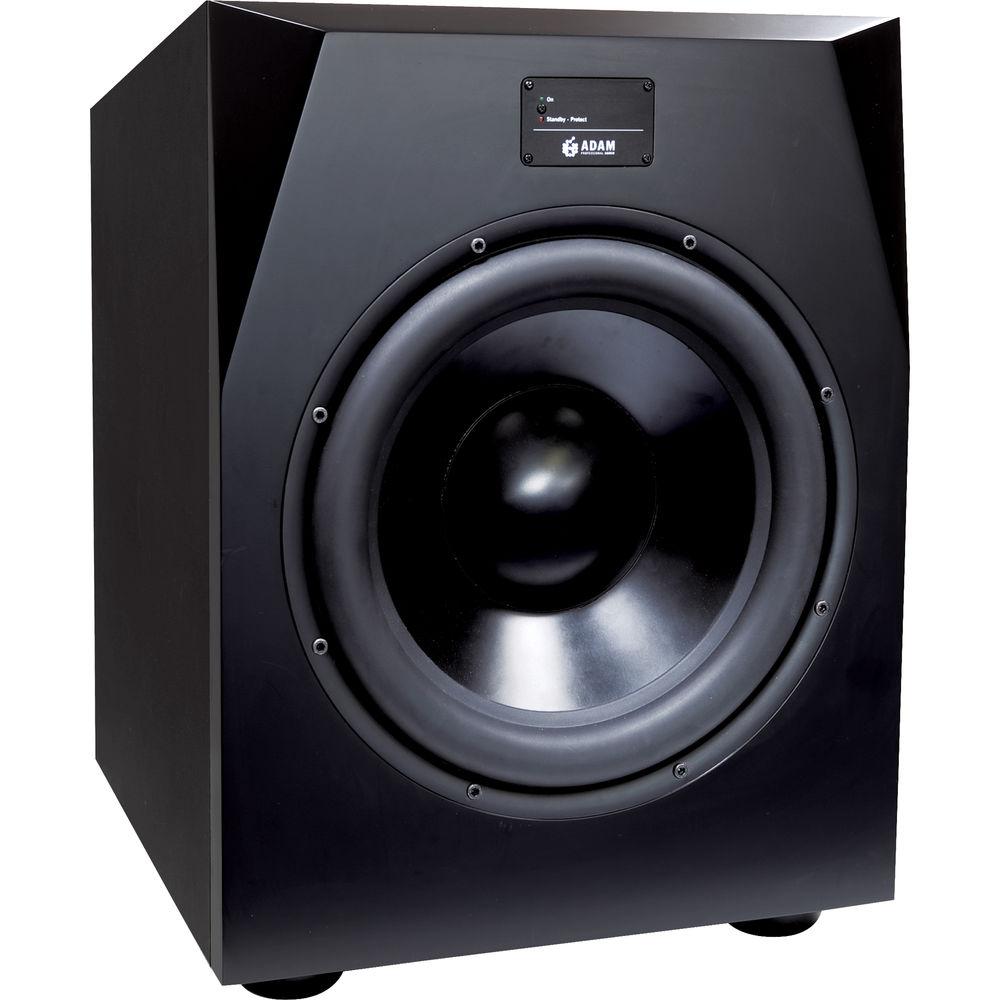

- 2 x Adam Professional Audio Sub15 -15" 1000w Subwoofer The Adam Audio Sub15 -15" 1000 W Subwoofer is designed for studio mixing and home theater applications. The unit utilizes a 1000W PWM amplifier, a 100mm voice coil, and a two magnet assembly to drive a single 15" rigid aluminum membrane woofer from 20 to 150 Hz at a maximum SPL of 112 dB as measured from one meter. The cabinet features a downward firing bass port. For controls, the subwoofer includes a variable -60 to +6 dB volume control and an adjustable low-pass crossover frequency control from 50 to 150 Hz.
For inputs, the sub features both balanced XLR and unbalanced RCA connectors. For outputs the unit features a balanced XLR sub output for connecting to a second sub, as well as balanced stereo XLR and unbalanced RCA outputs for connecting to a set of satellite speakers. An 85 Hz high pass filter switch can be engaged to integrate the sub with the satellite speakers. For surround sound integration, the subwoofer includes a 0° or 180° reverse phase switch. In the Box - 2 x S5V Active Three-Way 12" Main/Midfield Studio Monitor (Vertical, Single)
- IEC Power Cord
- Limited 2-Year Warranty with 3-Year Extension upon Online Registration
- 2 x Sub15 -15" 1000w Subwoofer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio Dresden Room - Midfield Monitors with Matched Subwoofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Adam Professional Audio S5V Active Three-Way 12" Main/Midfield Studio Monitor (Vertical, Single)
| | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter
MF Driver: 1 x 4" / 100 mm Composite Dome/Cone Hybrid with 2.4" / 60 mm Voice Coil
LF Driver: 1 x 12" / 312 mm HexaCone Woofer with 3" / 76 mm Voice Coil | | Amplification | HF Amplifier: Class-D Rated at 100 W
MF Amplifier: Class-D Rated at 300 W
LF Amplifier: Class-D Rated at 700 W | | | | Frequency Range | 26 Hz to 50 kHz | | Maximum Sound Pressure Level (SPL) | 128 dB | | Total Harmonic Distortion (THD) | 0.3% | | Maximum Input Level | +24 dBu | | | | EQ | 1 x HF Shelf dB
1 x LF Shelf dB 6 x Parametric Equalizer | | | | Crossover Frequency | Low-Pass Frequency: 250 Hz
High-Pass Frequency: 3 kHz | | | | I/O | 1 x 3-Pin XLR Analog Input (48 kOhms)
1 x 3-Pin XLR AES/EBU Digital Input
1 x 3-Pin XLR AES/EBU Digital Output | | Computer Interface | 1 x USB Type-B (Remote) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 650 W (Maximum) | | | | Dimensions (W x H x D) | 15.4 x 27.5 x 20.5" / 390.0 x 698.0 x 520.0 mm | | Weight | 114.5 lb / 51.9 kg | | | | Box Dimensions (LxWxH) | 33.0 x 26.0 x 23.0" | - 2 x Adam Professional Audio Sub15 -15" 1000w Subwoofer
| | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 1000 W RMS | | Drivers | Subwoofer Driver: 1 x 15.5" / 390 mm Aluminum Cone with 4" / 100 mm Voice Coil | | | | Frequency Range | 20 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 112 dB | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (100 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Storage Temperature | -22 to 167°F / -30 to 70°C | | | | Dimensions (W x H x D) | 18.5 x 25.0 x 20.5" / 470.0 x 635.0 x 525.0 mm | | Weight | 114.0 lb / 52.0 kg | | | | Box Dimensions (LxWxH) | 34.0 x 28.5 x 25.0" |
