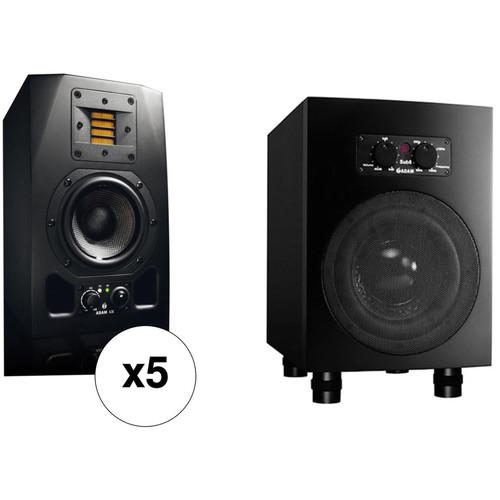

User Manual for Adam Professional Audio Fogg - 5.1 Bundle with A3X Nearfield Monitors & Sub8 Subwoofer

Click to enlarge the picture
Adam Professional Audio Fogg - 5.1 Bundle with A3X Nearfield Monitors & Sub8 Subwoofer Contents of the user manual for the Adam Professional Audio Fogg - 5.1
  • Product category: Studio Monitors Adam Professional Audio
  • Brand: Adam Professional Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Adam Professional Audio Studio Monitors

User manual for the Adam Professional Audio Fogg - 5.1 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Adam Professional Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!



Product description

The Adam Professional Audio Fogg is a 5.1 matched monitoring system for surround-sound applications. It is suitable for 5.1 surround music and post-production scenarios.

The bundle offers five A3X nearfield monitors. Each speaker is active, giving you a 4.5" carbon fiber woofer, X-ART tweeter, dual 25W amplifiers, and inputs for XLR and RCA connectors. Each monitor will supply a frequency response of 60 Hz to 50 kHz.

The Sub8, on the other hand, is an 8.5" subwoofer that gives you 240W of power, as well as a frequency response of 28 Hz to 150 Hz. An adjustable crossover is on hand, operating between 50 and 150 Hz. XLR and RCA inputs are both provided.
  • 5 x Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor (Single) The A3X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio from a compact design. The speaker features a 4.5" carbon fiber woofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own 25W amplifier for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.

    The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. A unique Stereolink connector, consisting of 2 RCA jacks, allows you to bypass a second stereo channel to a second speaker. This lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily. In addition to the main gain control on the front panel, the A3X also features a tweeter gain control on the rear panel.
    • Compact design, ideal for home, project, and mobile studios
    • 4.5" carbon fiber woofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
    • Each driver is powered by its own 25W amplifier for strong, distortion-free performance
    • Dual bass ports on the front of the cabinet help to extend the bass response
    • XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
    • Unique Stereolink connector lets you connect a pair of A3X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily
    • Front-panel gain control and rear-panel tweeter gain control for precise adjustments
  • Adam Professional Audio Sub8 - 240W 8.5" Active Subwoofer The Sub8 from Adam Audio is a compact yet powerful 8.5-inch active subwoofer with a 38mm voicecoil. The Sub8 is driven by a 160W RMS amplifier that stays cool, even while handling maximum power levels for a sustained period of time. The front panel has two motorized knobs for setting input level and crossover frequency. An included wireless remote allows you to change those settings from your normal listening position for the highest degree of accuracy. An ideal match to several of the Adam active and passive nearfield monitors, the Sub8 offers a balanced XLR and unbalanced RCA connectors.
    • Compact and powerful 8.5-inch subwoofer
    • 160W RMS amp stays cool, even under heavy operating conditions
    • Front-panel knobs for input level and crossover frequency can be adjusted using the included remote control
    • Balanced XLR and unbalanced RCA connectors
In the Box
  • 5 x A3X 4.5" 50W Active 2-Way Studio Monitor (Single) zffsvquewqayebxaycewbxeu
  • Power Cable
  • Limited 2-Year Warranty
  • Sub8 - 240W 8.5" Active Subwoofer
Table of Contents




Upload User Manual

Have you got an user manual for the Adam Professional Audio Fogg - 5.1 Bundle with A3X Nearfield Monitors & Sub8 Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 5 x Adam Professional Audio A3X 4.5" 50W Active 2-Way Studio Monitor (Single)
    Low Frequency Driver 4.5" (114mm) Carbon Fiber Woofer
    High Frequency Driver X-ART Tweeter
    LF Amplifier 25W RMS
    HF Amplifier 25W RMS
    Crossover 2.8kHz
    Frequency Range 60Hz - 50kHz
    Maximum Sound Pressure Level (SPL) 106dB, Peak
    Connectors 1 x XLR Input
    1 x RCA Input
    1 x RCA Stereolink Connector (2 Jacks)
    1 x Power Input
    Input Impedance 10 kOhms
    Controls and Indicators 1 x Power Switch
    1 x Gain Control
    1 x Tweeter Gain Control
    Shielded No
    Dimensions (HxWxD) 10 x 6 x 7.5" (252 x 150 x 185mm)
    Weight 10.1 lbs (4.6kg)
    Box Dimensions (LxWxH) 16.0 x 12.2 x 10.4"
  • Adam Professional Audio Sub8 - 240W 8.5" Active Subwoofer
    Monitor Type Active Subwoofer
    Enclosure Bass-Reflex, Unshielded
    Power Rating 240 W RMS
    Drivers Full-Range Driver: 1 x 8" / 20.32 cm Paper Cone
    Frequency Range 28 Hz to 150 Hz
    Maximum Sound Pressure Level (SPL) 112 dB
    Crossover Frequency 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz
    I/O 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
    1 x RCA Unbalanced Analog Input
    Dimensions (W x H x D) 10.2 x 16.1 x 15.0" / 260.0 x 410.0 x 380.0 mm
    Weight 26.4 lb / 12.0 kg
    Box Dimensions (LxWxH) 20.65 x 17.75 x 12.9"
