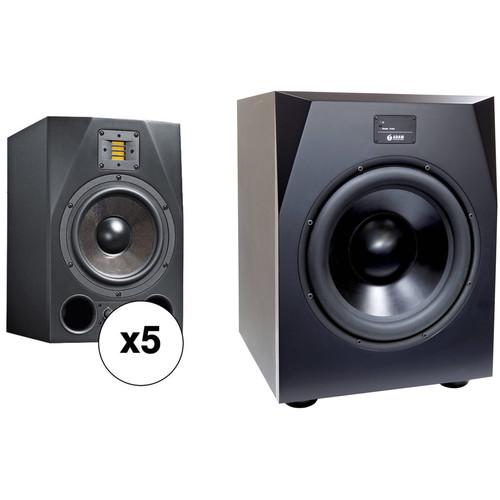

User Manual for Adam Professional Audio Nashville - 5.1 Bundle with A8X Monitors & Sub15 Subwoofer Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio Nashville - 5.1
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio Nashville - 5.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description The Adam Professional Audio Nashville is a 5.1 matched monitoring system for surround-sound applications. It is suitable for 5.1 surround music and post-production scenarios.
The bundle offers five A8X monitors. These speakers are active, giving you a 200W bi-amped design, as well as 8.5" carbon fiber / Rohacell / glass fiber midwoofers, and X-ART tweeters for crisp, natural audio with a wide frequency response. Each monitor supplies a frequency response of 38 Hz to 50 kHz.
The Sub15 has an aluminum membrane 15.5" woofer, a 100mm voice coil, and a frequency response that extends down to 20 Hz. The crossover range for the sub is adjustable from 50 Hz to 150 Hz, making it flexible for your room's particular circumstances. - 5 x Adam Professional Audio A8X 8.5" 200W Active 2-Way Studio Monitor (Single) The A8X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio in a compact design, ideal for small professional studios. The speaker features an 8.5" carbon fiber/rohacell/glass fiber midwoofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own amplifier, combining to provide 200W RMS of total power for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.
The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. In addition to the main gain control on the front panel, the A8X also features a tweeter gain control and a set of high and low shelving controls on the rear panel. - Ideal for use as a near or midfield monitor
- 8.5" carbon fiber/rohacell/glass fiber midwoofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
- The midwoofer is driven by a 150W PWM amplifier while the tweeter is driven by a 50W A/B amplifier for strong, distortion-free performance
- Dual bass ports on the front of the cabinet help to extend the bass response
- XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
- Front-panel gain control and rear-panel tweeter gain control for precise adjustments, plus high and low shelving filter controls
- Adam Professional Audio Sub15 -15" 1000w Subwoofer The Adam Audio Sub15 -15" 1000 W Subwoofer is designed for studio mixing and home theater applications. The unit utilizes a 1000W PWM amplifier, a 100mm voice coil, and a two magnet assembly to drive a single 15" rigid aluminum membrane woofer from 20 to 150 Hz at a maximum SPL of 112 dB as measured from one meter. The cabinet features a downward firing bass port. For controls, the subwoofer includes a variable -60 to +6 dB volume control and an adjustable low-pass crossover frequency control from 50 to 150 Hz.
For inputs, the sub features both balanced XLR and unbalanced RCA connectors. For outputs the unit features a balanced XLR sub output for connecting to a second sub, as well as balanced stereo XLR and unbalanced RCA outputs for connecting to a set of satellite speakers. An 85 Hz high pass filter switch can be engaged to integrate the sub with the satellite speakers. For surround sound integration, the subwoofer includes a 0° or 180° reverse phase switch. In the Box - 5 x A8X 8.5" 200W Active 2-Way Studio Monitor (Single) xxdzcsrxyrvdvwadzftywq
- Power Cable
- Limited 2-Year Warranty Plus 3 Years Optional with Product Registration
- Sub15 -15" 1000w Subwoofer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio Nashville - 5.1 Bundle with A8X Monitors & Sub15 Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 5 x Adam Professional Audio A8X 8.5" 200W Active 2-Way Studio Monitor (Single)
| | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Unshielded | | Drivers | HF Driver: 1 x / Ribbon Tweeter
LF Driver: 1 x 8.5" / 216 mm Carbon Fiber Woofer | | Amplification | HF Amplifier: Rated at 50 W RMS
LF Amplifier: Rated at 150 W RMS | | | | Frequency Range | 38 Hz to 50 kHz | | Maximum Sound Pressure Level (SPL) | 120 dB | | | | Crossover Frequency | 2.3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (30 kOhms)
1 x RCA Unbalanced Analog Input (30 kOhms) | | | | Dimensions (W x H x D) | 10.0 x 15.5 x 12.5" / 255.0 x 400.0 x 320.0 mm | | Weight | 28.7 lb / 13.0 kg | | | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 15.0" | - Adam Professional Audio Sub15 -15" 1000w Subwoofer
| | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 1000 W RMS | | Drivers | Subwoofer Driver: 1 x 15.5" / 390 mm Aluminum Cone with 4" / 100 mm Voice Coil | | | | Frequency Range | 20 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 112 dB | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (100 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Storage Temperature | -22 to 167°F / -30 to 70°C | | | | Dimensions (W x H x D) | 18.5 x 25.0 x 20.5" / 470.0 x 635.0 x 525.0 mm | | Weight | 114.0 lb / 52.0 kg | | | | Box Dimensions (LxWxH) | 34.0 x 28.5 x 25.0" |
