User Manual for Adam Professional Audio S2V Active Two-Way 7" Nearfield Studio Monitor Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio S2V Active Two-Way
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio S2V Active Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|

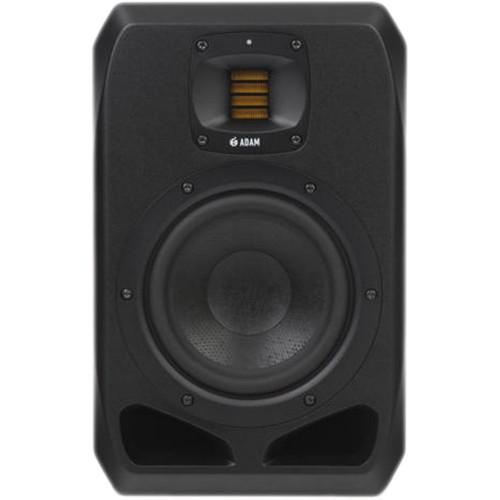

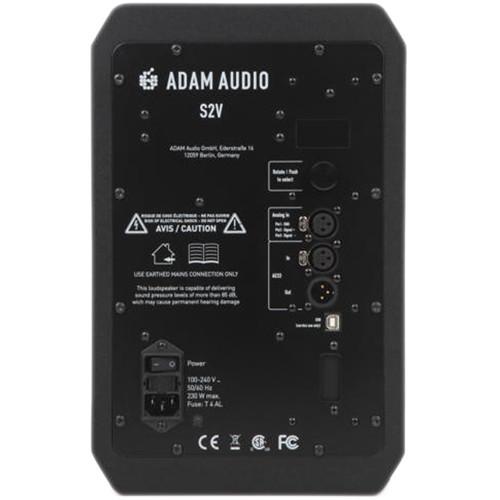

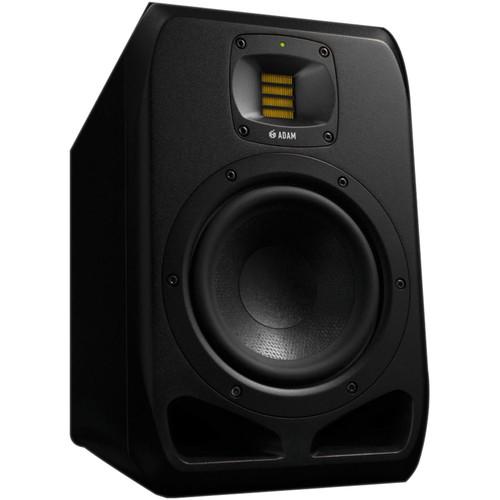

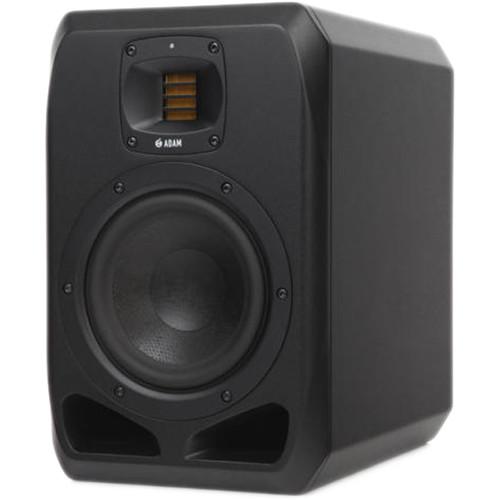

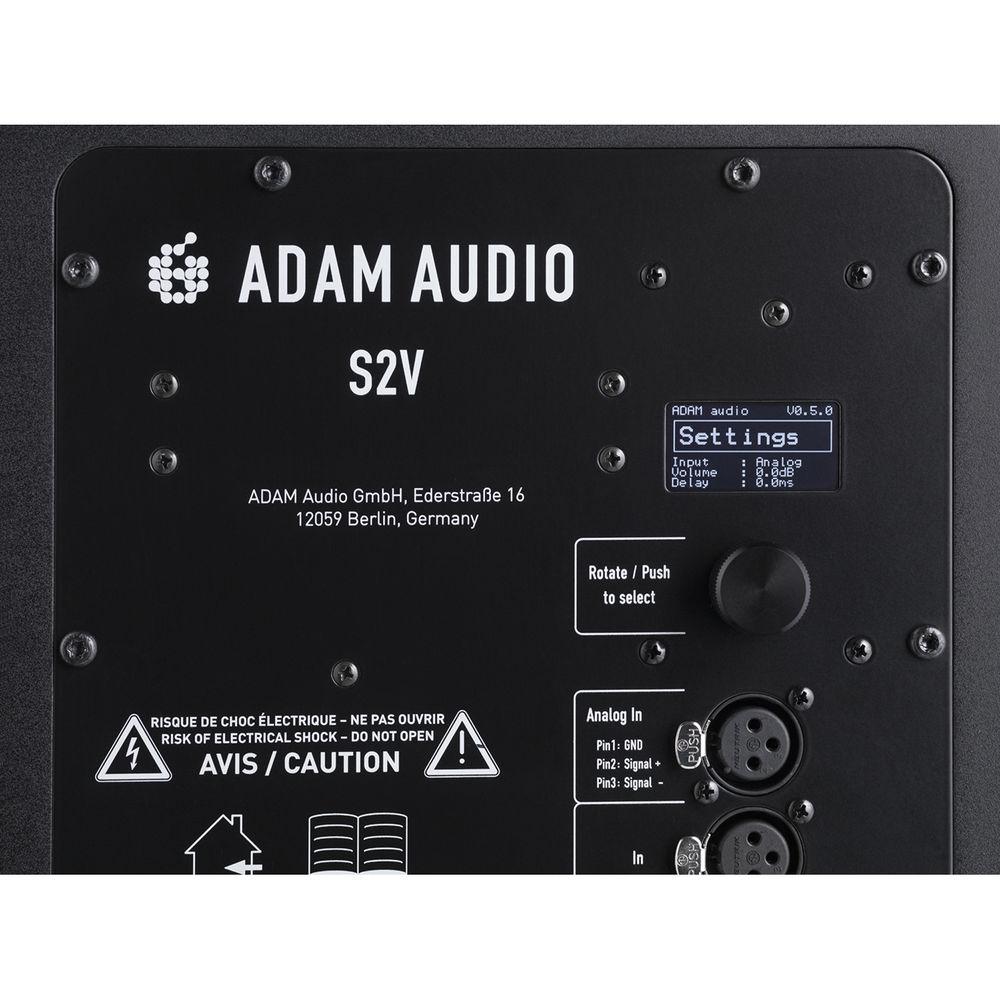

Product description The S2V from Adam Professional Audio is an active studio reference monitor designed for vertical orientation in small to medium-sized control rooms. Capable of delivering 350W RMS of cumulative amp power, it features a 7” HexaCone woofer and handmade folded-ribbon tweeter. The Adam-designed high-range propagation system (HPS) waveguide ensures a wide, stable sweet spot.Developed for transparency, the S2V’s frequency response is an impressive 35 Hz – 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S2V’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances. -
- 7" ELE (Extended Linear Excursion) HexaCone woofer
- Redesigned bass reflex tubes minimize resonance and signal loss
- S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
- 350W RMS cumulative power via two amplifiers
- 300W PWM (Class D) woofer amp
- 50W Class A/B tweeter amp
- 35 Hz - 50 kHz frequency response
- Low harmonic distortion
- Adjustable input sensitivity and output level
- 6-band parametric equalizer with HPF and LPF filters
- Variable delay for timing adjustment
- XLR analog and AES3 digital inputs
- USB Type-A for remote access via computer
In the Box Adam Professional Audio S2V Active Two-Way 7" Nearfield Studio Monitor (Vertical, Single) IEC Power Cord Limited 2-Year Warranty with 3-Year Extension upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio S2V Active Two-Way 7" Nearfield Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio S2V Specs | Monitor Type | Active 2-Way | Enclosure | Bass-Reflex, Shielded | Drivers | HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter LF Driver: 1 x 7" / 178 mm HexaCone Woofer with 1.5" / 39 mm Voice Coil | Amplification | HF Amplifier: Class-AB Rated at 50 W LF Amplifier: Class-D Rated at 300 W | | Frequency Range | 35 Hz to 50 kHz | Maximum Sound Pressure Level (SPL) | 120 dB | Total Harmonic Distortion (THD) | 0.4% | Maximum Input Level | +24 dBu | | EQ | 1 x HF Shelf dB 1 x LF Shelf dB 6 x Parametric Equalizer | | Crossover Frequency | 3 kHz | | I/O | 1 x 3-Pin XLR Analog Input (48 kOhms) 1 x 3-Pin XLR AES/EBU Digital Input 1 x 3-Pin XLR AES/EBU Digital Output | Computer Interface | 1 x USB Type-B (Remote) | | AC Input Power | 100 to 240 VAC at 50/60 Hz | Power Consumption | 230 W (Maximum) | | Dimensions (W x H x D) | 8.7 x 13.6 x 13.3" / 222.0 x 346.0 x 338.0 mm | Weight | 24.2 lb / 11.0 kg | | Package Weight | 30.5 lb | Box Dimensions (LxWxH) | 20.0 x 17.0 x 14.0" |
