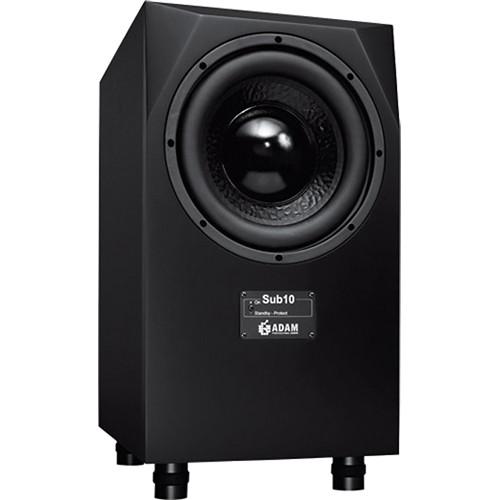

User Manual for Adam Professional Audio Sub10 MK2 - 200W 10" Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio Sub10 MK2 -
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio Sub10 MK2 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description - What is the benefit of using a subwoofer in a recording studio?
The Sub10 MK2 from Adam Audio is an ideal choice to fill out the low end of any stereo or 5.1 surround monitoring system. It has a 10-inch cone and is powered by a 200W RMS (300W peak) amplifier. It offers both XLR and RCA I/O connectors for integration with just about any system. The bandwidth of the Sub10 MK2 and the connected speakers may be adjusted separately, allowing it to be used with many different satellites.
Crossovers are made as musical as possible thanks to variable fourth-order Linkwitz-Riley filters. The incoming signal can be phased from zero to 180 degrees for a great degree of flexibility in placement of the subwoofer. Rear-panel gain and filter adjustment controls are provided. A down-firing bass reflex tube avoids breathing noise. Multiple units may be chained together if desired. The Adam Audio Sub10 MK2 ships with a power cord and four protective rubber foot plugs. - Excellent low-end companion to any sound system
- Cool-running 200W RMS (300W peak) amp uses pulse width modulation (PWM) to provide greater than 80% overall efficiency
- Down-firing bass reflex tube reduces breathing noise
- Multiple units may be chained
- Bandwidth of the subwoofer and connected speakers may be adjusted separately
- Variable fourth-order Linkwitz-Riley filters for musical crossovers
- Incoming signal can be phased between 0 and 180 degrees, allowing a high degree of placement flexibility
- Gain and filter controls on rear panel
In the Box Adam Professional Audio Sub10 MK2 - 200W 10" Active Subwoofer 4 x Protection Rubber Foot Plugs Power Cord Limited 2-Year Warranty, Extended to 5-Years with Registration User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio Sub10 MK2 - 200W 10" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio Sub10 Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 200 W RMS
300 W Peak | | Drivers | Full-Range Driver: 1 x 10" / 25.4 cm Paper Cone | | | | Frequency Range | 25 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 113 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Dimensions (W x H x D) | 11.8 x 21.6 x 15.7" / 300.0 x 549.0 x 399.0 mm | | Weight | 46.0 lb / 21.0 kg | | | | Package Weight | 51.5 lb | | Box Dimensions (LxWxH) | 27.0 x 22.0 x 17.0" |
