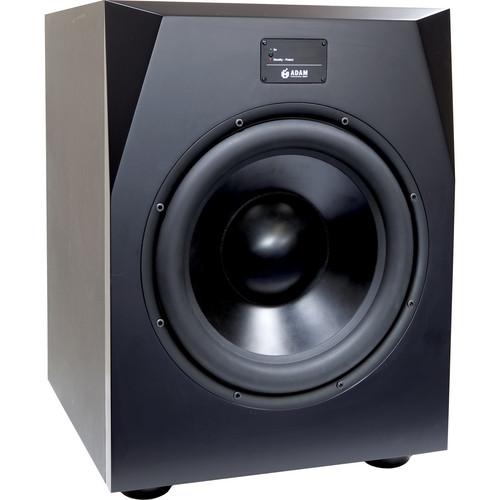

User Manual for Adam Professional Audio Sub15 -15" 1000w Subwoofer Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio Sub15 -15" 1000w
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio Sub15 -15" 1000w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description - What is the benefit of using a subwoofer in a recording studio?
The Adam Audio Sub15 -15" 1000 W Subwoofer is designed for studio mixing and home theater applications. The unit utilizes a 1000W PWM amplifier, a 100mm voice coil, and a two magnet assembly to drive a single 15" rigid aluminum membrane woofer from 20 to 150 Hz at a maximum SPL of 112 dB as measured from one meter. The cabinet features a downward firing bass port. For controls, the subwoofer includes a variable -60 to +6 dB volume control and an adjustable low-pass crossover frequency control from 50 to 150 Hz.
For inputs, the sub features both balanced XLR and unbalanced RCA connectors. For outputs the unit features a balanced XLR sub output for connecting to a second sub, as well as balanced stereo XLR and unbalanced RCA outputs for connecting to a set of satellite speakers. An 85 Hz high pass filter switch can be engaged to integrate the sub with the satellite speakers. For surround sound integration, the subwoofer includes a 0° or 180° reverse phase switch. In the Box Adam Professional Audio Sub15 -15" 1000w Subwoofer Power Cord Limited 2-Year Warranty Plus 3 Years Optional with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio Sub15 -15" 1000w Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio SUB 15 Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 1000 W RMS | | Drivers | Subwoofer Driver: 1 x 15.5" / 390 mm Aluminum Cone with 4" / 100 mm Voice Coil | | | | Frequency Range | 20 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 112 dB | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (100 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Storage Temperature | -22 to 167°F / -30 to 70°C | | | | Dimensions (W x H x D) | 18.5 x 25.0 x 20.5" / 470.0 x 635.0 x 525.0 mm | | Weight | 114.0 lb / 52.0 kg | | | | Package Weight | 206.0 lb | | Box Dimensions (LxWxH) | 34.0 x 28.5 x 25.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
