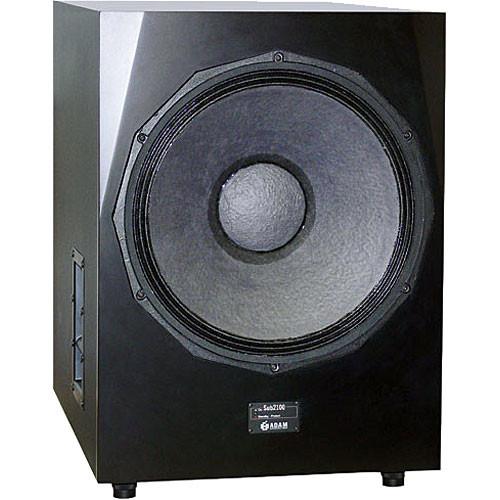

User Manual for Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio Sub2100 - 1000W
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
|
User manual for the Adam Professional Audio Sub2100 - 1000W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description - What is the benefit of using a subwoofer in a recording studio?
The Sub2100 from Adam Professional Audio is an active, front-firing subwoofer designed for strong bass response in large control rooms and studios. The large, 21" driver is housed in a specially-tuned bass-reflex cabinet to reproduce frequencies as low as 18Hz. A highly-efficient amplifier delivers up to 1000W of continuous power for a strong, linear performance with very little compression.
The rear panel of the subwoofer offers XLR and RCA inputs and outputs, as well as an XLR subwoofer output for daisy-chaining. A 180° phase control is provided, as well as gain and high-pass filter controls. - Professional-quality subwoofer for large studios and control rooms
- Large, 21" front-firing driver
- High-efficiency amplifier provides up to 1000W of continuous power for strong output with low compression
- Large voice coil maximizes SPL while maintaining ultra-low frequencies
- Sturdy bass-reflex cabinet with isolation feet to reduce rumble and reflections
- XLR subwoofer output for daisy-chaining
- High-pass filter and gain control knobs
In the Box Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio Sub2100 Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 1000 W RMS
1200 W Peak | | Drivers | Full-Range Driver: 1 x 21" / 53.34 cm Paper Cone with 6" / 152 mm Voice Coil | | | | Frequency Range | 18 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 128 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Dimensions (W x H x D) | 23.6 x 33.5 x 27.7" / 600.0 x 850.0 x 705.0 mm | | Weight | 187.4 lb / 85.0 kg | | | | Package Weight | 185.0 lb | | Box Dimensions (LxWxH) | 37.5 x 34.0 x 29.5" |
