User Manual for Adam Professional Audio T5V T-Series Active Nearfield Monitor Click to enlarge the picture
Contents of the user manual for the Adam Professional Audio T5V T-Series Active
- Product category: Studio Monitors Adam Professional Audio
- Brand: Adam Professional Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adam Professional Audio Studio Monitors
 |
User manual for the Adam Professional Audio T5V T-Series Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adam Professional Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adam Professional Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adam Professional Audio product will considerably shorten its lifespan!
|
Product description NAMM 2018: Adam Audio Announces T-Series Monitors Read More - ADAM Audio T5V - Active Nearfield Monitor

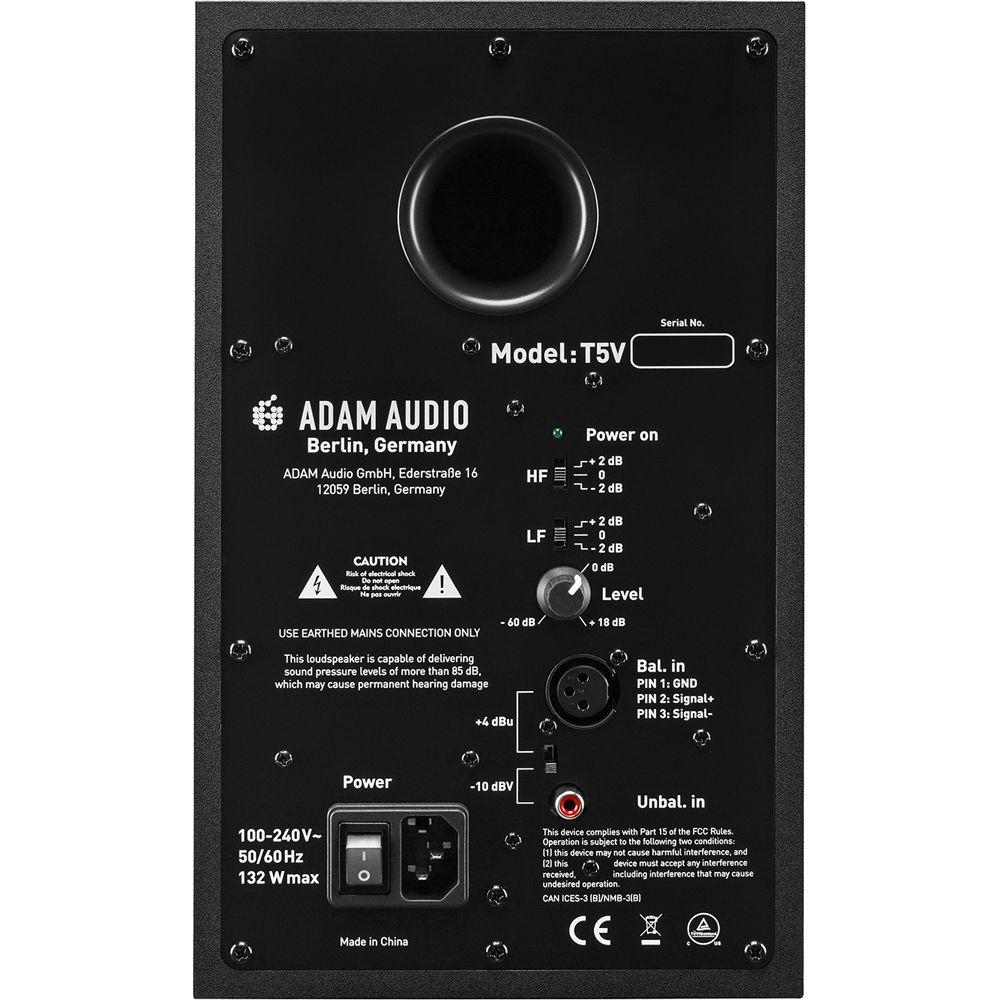

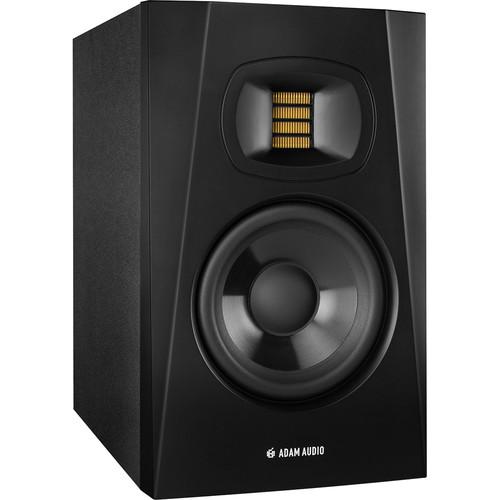

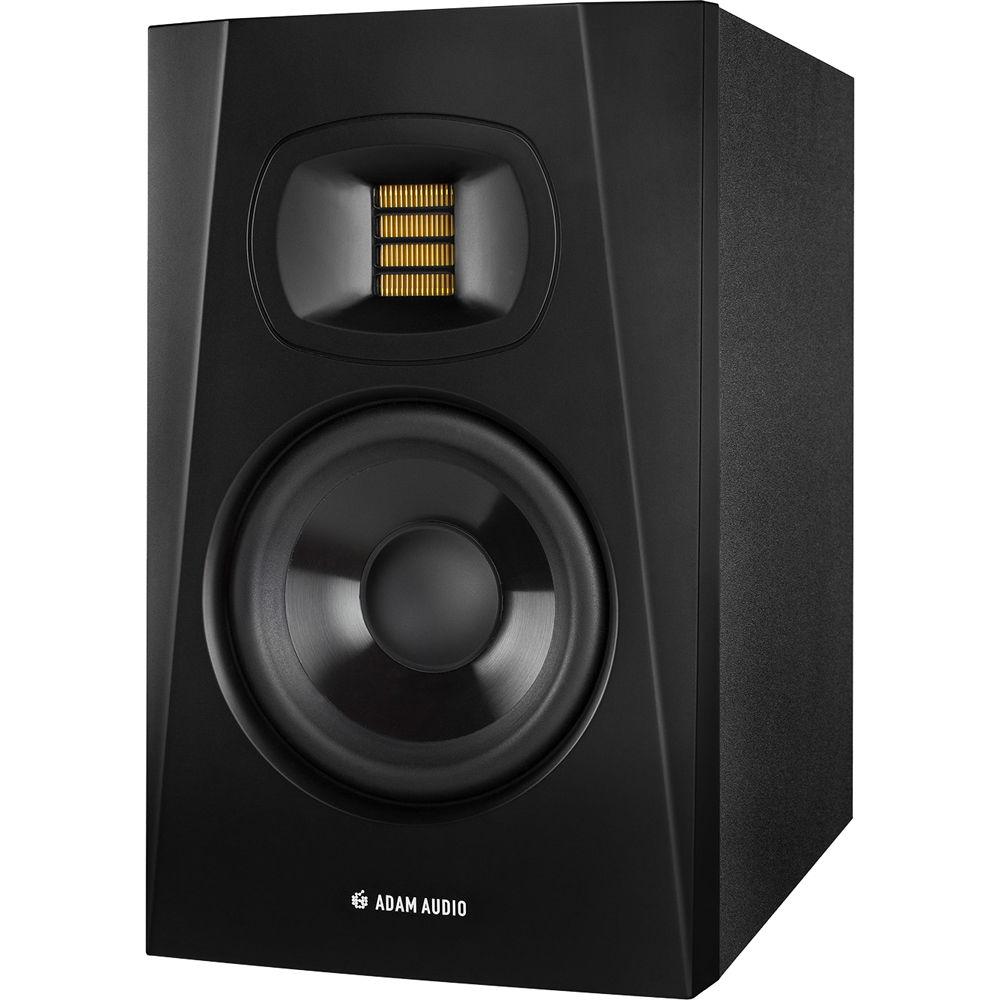

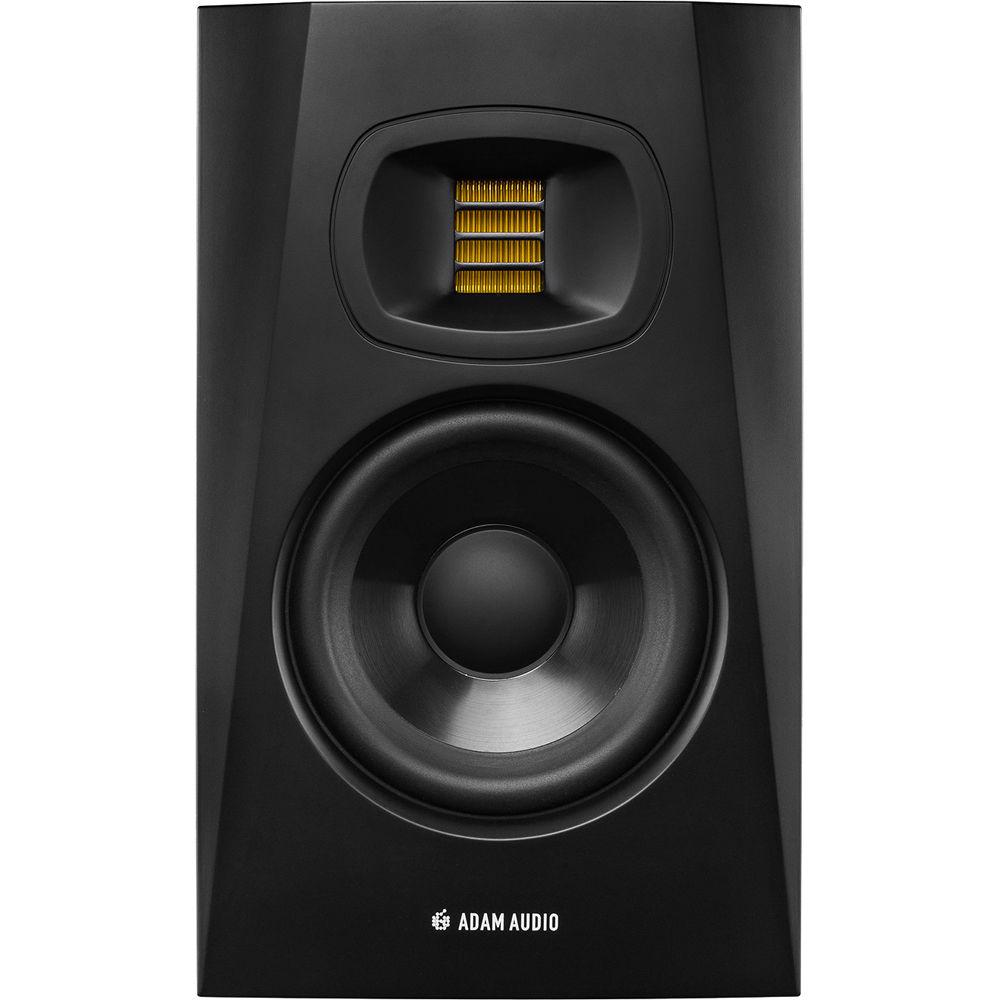

The single, Adam Professional Audio T-Series T5V is an affordable, high-quality, near-field, active studio monitor well suited for project studios, commercial recording facilities, and broadcast environments. The speaker features Adam's U-Art 1.9" accelerated ribbon tweeter with HPS waveguide and a 5" polypropylene woofer with a rear-firing bass-reflex port. The unit is bi-amped with 50W allocated to the woofer, while 20W powers the tweeter, which combine to provide a frequency response of 45 Hz to 25 kHz and a maximum SPL of 106 dB. The rear panel offers XLR and RCA connections with controls for input sensitivity, gain, high-shelf (-2, 0, +2 dB), and low-shelf (-2, 0, +2 dB). The Adam Professional Audio T5V ships with a power cord. -
- U-ART 1.9" Accelerated Ribbon Tweeter
- Allows longer operation with fewer signs of fatigue
- Breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
- Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
- Air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
- Direct, fast response in the high-range even with complex transients
- HPS waveguide from the S Series
- Makes dispersion more consistent and imaging more stable over a wider area
- Reduction of early reflections on the surfaces of mixing consoles, desks, and more
- Lightweight polypropylene construction of the woofer
- Excellent transient response even at high sound levels without breakup of the diaphragm
- Vertical 2-way system with 5" woofer
- High resolution of the stereo image
- Rear-firing bass reflex port
- Bass reproduction with very low compression
- Linear frequency response of 45 Hz to 25 kHz
- Unbiased reproduction in a wide frequency band
- Maximum peak sound pressure per pair in 3.3' (1 m) 106 dB
- Powerful, compression-free sound reproduction even at very high sound levels
- DSP-powered crossover design
- Smooth frequency response without interference between the drivers in the critical midrange
- Simple room acoustic adjustments via high- and low-shelf filters
- Allows optimal adaptation to acoustically difficult listening environments or individual preferences
- Analog inputs over XLR and RCA
- Optimized for balanced and unbalanced line signals
- Acoustically optimized cabinet geometry
- Reduction of unwanted reflections on the cabinets
In the Box Adam Professional Audio T5V T-Series Active Nearfield Monitor (Single) Power Cord Limited 2-Year Warranty, Extended to 5-Years with Registration User Manual PDF 880.7kbtcdceefczdybdftadvwsz Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio T5V T-Series Active Nearfield Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio T5V Specs | Woofer | Number: 1
Basket Ø: 5.0" / 127.0 mm
Cone Material: Polypropylene | | Tweeter | Number: 1
Type: U-ART
Diaphragm Area: 4.0" / 101.6 mm
Equiv. Diaphragm Ø: 1.9" / 48.3 mm
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz / 0.17 g
Waveguide: HPS | | Amplifier | Number: 2
Woofer: 1
Type: PWM (Class-D)
Amplifier Power RMS: 50 W
Tweeter: 1
Type: PWM (Class-D)
Amplifier Power RMS: 20 W | | Control Options | Input Sensitivity: Switchable +4 dBu / -10 dBV
Gain: Yes
High-Shelf: -2, 0, +2 dB
Low-Shelf: -2, 0, +2 dB | | Input Connectors | Analog: XLR, RCA
Input Impedance: 10 kOhm / 20 kOhm | | Frequency Response | 45 Hz to 25 kHz | | THD | THD > 80 Hz: 0.5 % | | Maximum SPL | Maximum SPL: ≥106 dB (per pair at 3.3 / 1.0 m) | | Crossover | 3 kHz | | Power | AC Mains Inputs Voltage: 100 to 240 VAC 50/60 Hz | | Maximum Power Consumption | 132 W | | Dimensions (H x W x D) | 11.7 x 7.0 x 11.7" / 297.2 x 177.8 x 297.2 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 15.4 x 14.7 x 9.9" |
