Product description NAMM 2018: Adam Audio Announces T-Series Monitors Read More - ADAM Audio T7V - Active Nearfield Monitor

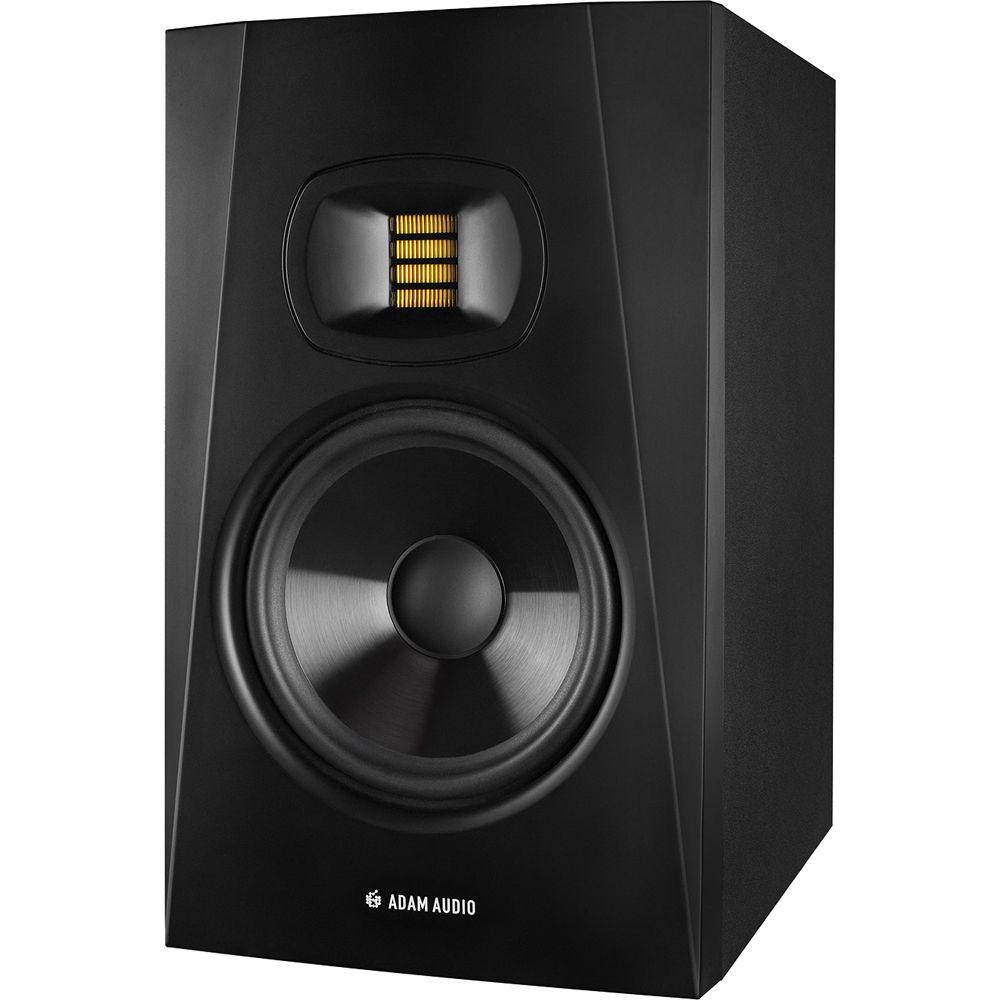

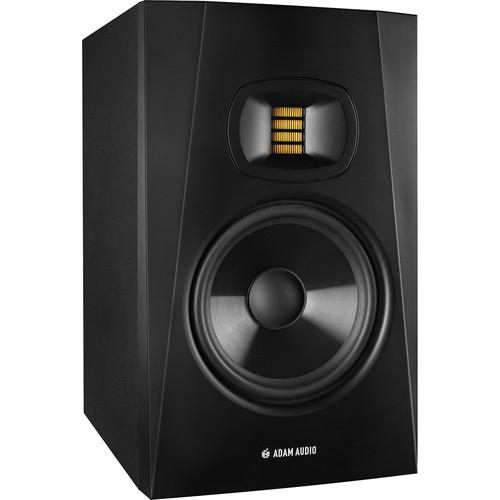

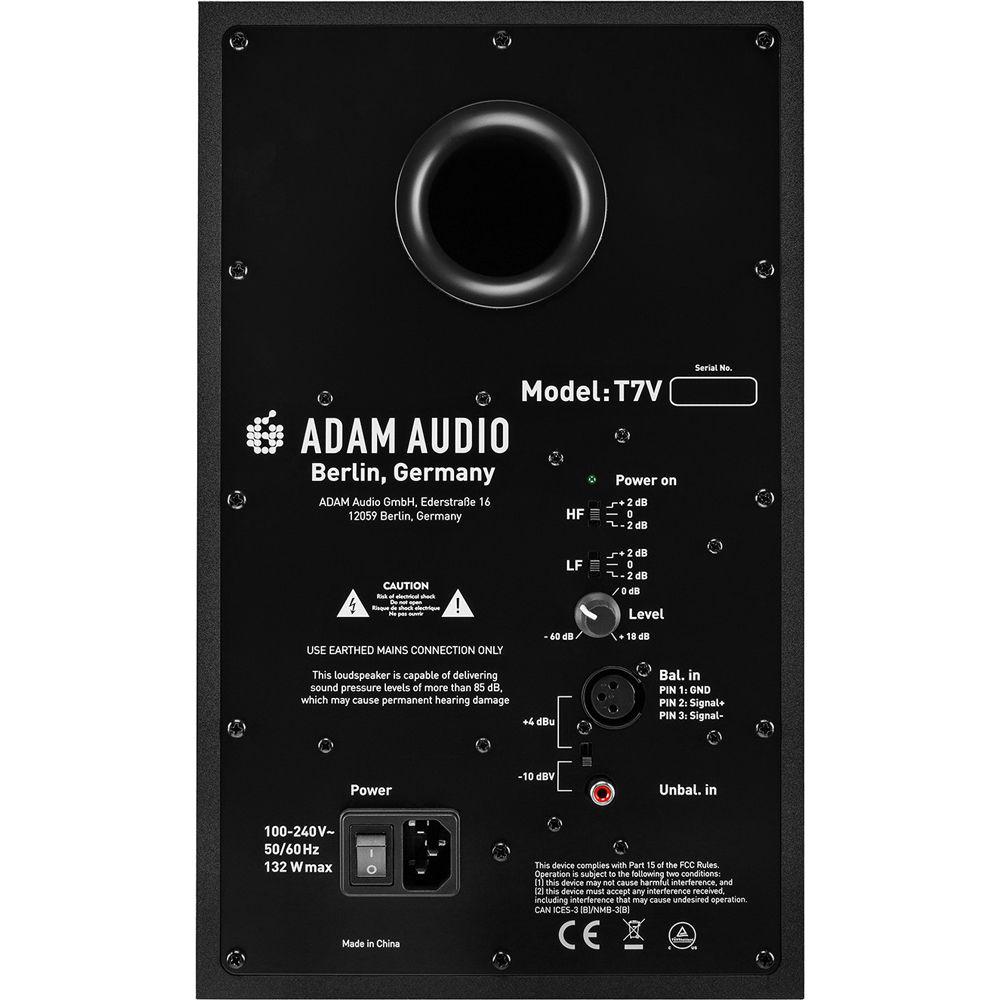

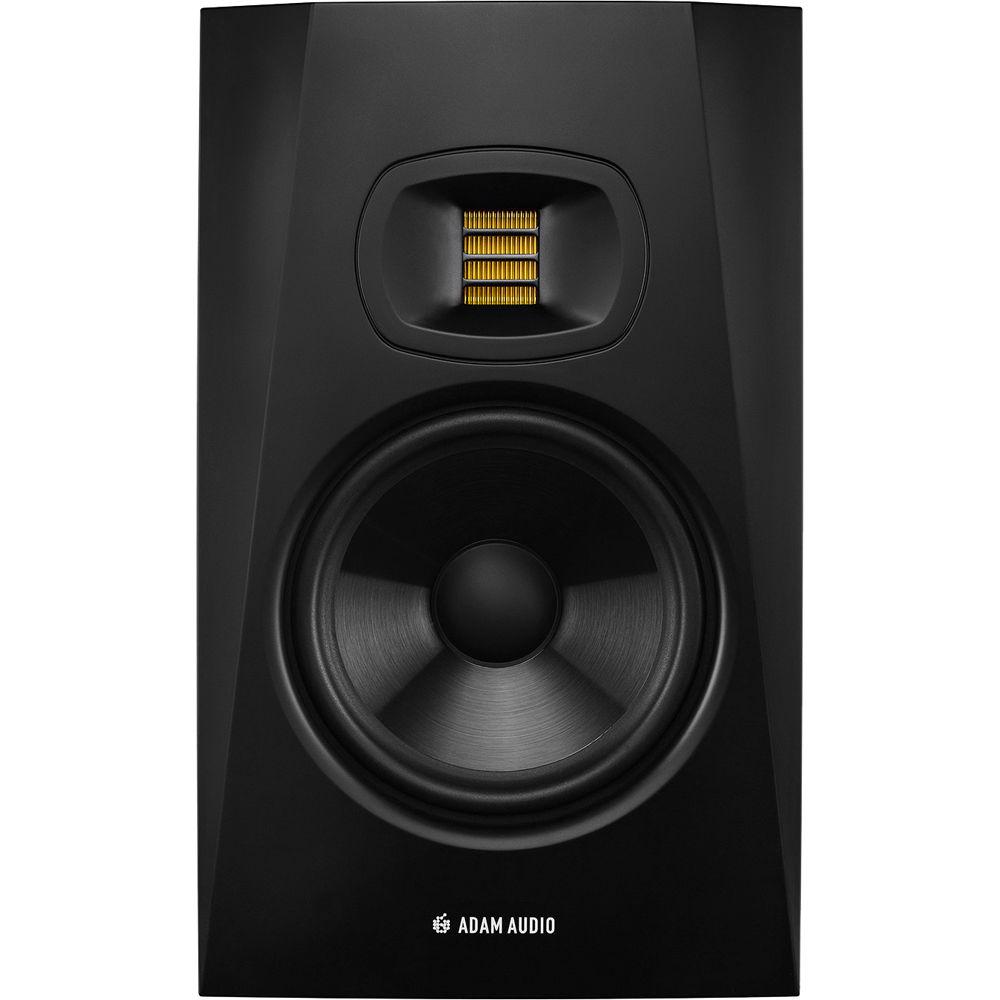

The single, Adam Professional Audio T-Series T7V is an affordable, high-quality, near-field, active studio monitor well suited for project studios, commercial recording facilities, and broadcast environments. The speaker features Adam's U-Art 1.9" accelerated ribbon tweeter with HPS waveguide and a 7" polypropylene woofer with a rear-firing bass-reflex port. The unit is bi-amped with 50W allocated to the woofer, while 20W powers the tweeter, which combine to provide a frequency response of 39 Hz to 25 kHz and a maximum SPL of 110 dB. The rear panel offers XLR and RCA connections with controls for input sensitivity, gain, high-shelf (-2, 0, +2 dB), and low-shelf (-2, 0, +2 dB). The Adam Professional Audio T7V ships with a power cord. -
- U-ART 1.9" Accelerated Ribbon Tweeter
- Allows longer operation with fewer signs of fatigue
- Breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
- Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
- Air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
- Direct, fast response in the high-range even with complex transients
- HPS waveguide from the S Series
- Makes dispersion more consistent and imaging more stable over a wider area
- Reduction of early reflections on the surfaces of mixing consoles, desks, and more
- Lightweight polypropylene construction of the woofer
- Excellent transient response even at high sound levels without breakup of the diaphragm
- Vertical 2-way system with 7" woofer
- High resolution of the stereo image
- Rear-firing bass reflex port
- Bass reproduction with very low compression
- Linear frequency response of 39 Hz to 25 kHz
- Unbiased reproduction in a wide frequency band
- Maximum peak sound pressure per pair in 3.3' (1 m) 110 dB
- Powerful, compression-free sound reproduction even at very high sound levels
- DSP-powered crossover design
- Smooth frequency response without interference between the drivers in the critical midrange
- Simple room acoustic adjustments via high- and low-shelf filters
- Allows optimal adaptation to acoustically difficult listening environments or individual preferences
- Analog inputs over XLR and RCA
- Optimized for balanced and unbalanced line signals
- Acoustically optimized cabinet geometry
- Reduction of unwanted reflections on the cabinets
In the Box Adam Professional Audio T7V T-Series Active Nearfield Monitor (Single) Power Cord Limited 2-Year Warranty, Extended to 5-Years with Registration User Manual PDF 2.1mbubscvcttasuzttaqxcdudzsxyzuvzctcvfv Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio T7V T-Series Active Nearfield Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdam Professional Audio T7V Specs | Woofer | Number: 1
Basket Ø: 7.0" / 177.8 mm
Cone Material: Polypropylene | | Tweeter | Number: 1
Type: U-ART
Diaphragm Area: 4.0" / 101.6 mm
Equiv. Diaphragm Ø: 1.9" / 48.3 mm
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz / 0.17 g
Waveguide: HPS | | Amplifier | Number: 2
Woofer: 1
Type: PWM (Class-D)
Amplifier Power RMS: 50 W
Tweeter: 1
Type: PWM (Class-D)
Amplifier Power RMS: 20 W | | Control Options | Input Sensitivity: Switchable +4 dBu / -10 dBV
Gain: Yes
High-Shelf: -2, 0, +2 dB
Low-Shelf: -2, 0, +2 dB | | Input Connectors | Analog: XLR, RCA
Input Impedance: 10 kOhm / 20 kOhm | | Frequency Response | 39 Hz to 25 kHz | | THD | THD > 80 Hz: 0.5 % | | Maximum SPL | Maximum SPL: ≥110 dB (per pair at 3.3 / 1.0 m) | | Crossover | 2.6 kHz | | Power | AC Mains Inputs Voltage: 100 to 240 VAC 50/60 Hz | | Maximum Power Consumption | 132 W | | Dimensions (H x W x D) | 13.7 x 8.3 x 11.5" / 348.0 x 210.8 x 292.1 mm | | Weight | 15.7 lb / 7.1 kg | | | | Package Weight | 18.45 lb | | Box Dimensions (LxWxH) | 18.1 x 15.3 x 11.6" |
