Product description

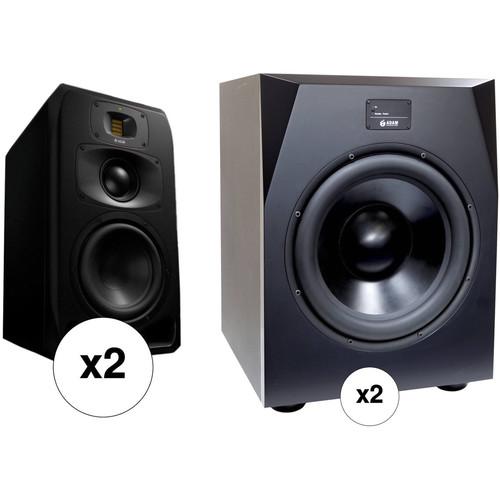

• 2 x Adam Professional Audio S3V Active Three-Way 9" Midfield Studio Monitor (Vertical, Single) The S3V from Adam Professional Audio is an active studio reference monitor designed for vertical orientation in medium-sized or smaller control rooms. Capable of delivering 850W RMS of cumulative amp power, it features a 9” HexaCone woofer, 4” dome/cone hybrid midrange driver, and handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.Developed for transparency, the S3V’s frequency response is an impressive 32 Hz – 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S3V’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.
  • • 9" ELE (Extended Linear Excursion) HexaCone woofer
    • Redesigned bass reflex tubes minimize resonance and signal loss
    • 4" carbon composite DCH (Dome/Cone Hybrid) midrange driver
    • Aluminum MPS (Midrange Propagation System) waveguide
    • S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
    • 850W RMS cumulative power via three amplifiers
    • 500W PWM (Class D) woofer amp
    • 300W PWM (Class D) midrange amp
    • 50W Class A/B tweeter amp
    • 32 Hz - 50 kHz frequency response
    • Low harmonic distortion
    • Adjustable input sensitivity and output level
    • 6-band parametric equalizer with HPF and LPF filters
    • Variable delay for timing adjustment
    • XLR analog and AES3 digital inputs
    • USB Type-A for remote access via computer
• 2 x Adam Professional Audio Sub15 -15" 1000w Subwoofer The Adam Audio Sub15 -15" 1000 W Subwoofer is designed for studio mixing and home theater applications. The unit utilizes a 1000W PWM amplifier, a 100mm voice coil, and a two magnet assembly to drive a single 15" rigid aluminum membrane woofer from 20 to 150 Hz at a maximum SPL of 112 dB as measured from one meter. The cabinet features a downward firing bass port. For controls, the subwoofer includes a variable -60 to +6 dB volume control and an adjustable low-pass crossover frequency control from 50 to 150 Hz.

  For inputs, the sub features both balanced XLR and unbalanced RCA connectors. For outputs the unit features a balanced XLR sub output for connecting to a second sub, as well as balanced stereo XLR and unbalanced RCA outputs for connecting to a set of satellite speakers. An 85 Hz high pass filter switch can be engaged to integrate the sub with the satellite speakers. For surround sound integration, the subwoofer includes a 0° or 180° reverse phase switch.

• 2 x S3V Active Three-Way 9" Midfield Studio Monitor (Vertical, Single)
• IEC Power Cord
• Limited 2-Year Warranty with 3-Year Extension upon Online Registration

• 2 x Sub15 -15" 1000w Subwoofer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Adam Professional Audio S3V Active Three-Way 9" Midfield Studio Monitor (Vertical, Single)

  Monitor Type	Active 3-Way
  Enclosure	Bass-Reflex, Shielded
  Drivers	HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter MF Driver: 1 x 4" / 100 mm Composite Dome/Cone Hybrid with 2.4" / 60 mm Voice Coil LF Driver: 1 x 9" / 223 mm HexaCone Woofer with 2" / 50 mm Voice Coil
  Amplification	HF Amplifier: Class-AB Rated at 50 W MF Amplifier: Class-D Rated at 300 W LF Amplifier: Class-D Rated at 500 W

  Frequency Range	32 Hz to 50 kHz
  Maximum Sound Pressure Level (SPL)	124 dB
  Total Harmonic Distortion (THD)	0.4%
  Maximum Input Level	+24 dBu

  EQ	1 x HF Shelf dB 1 x LF Shelf dB 6 x Parametric Equalizer

  Crossover Frequency	Low-Pass Frequency: 250 Hz High-Pass Frequency: 3 kHz

  I/O	1 x 3-Pin XLR Analog Input (48 kOhms) 1 x 3-Pin XLR AES/EBU Digital Input 1 x 3-Pin XLR AES/EBU Digital Output
  Computer Interface	1 x USB Type-B (Remote)

  AC Input Power	100 to 240 VAC at 50/60 Hz
  Power Consumption	550 W (Maximum)

  Dimensions (W x H x D)	11.5 x 21.1 x 15.0" / 293.0 x 536.0 x 380.0 mm
  Weight	55.0 lb / 24.9 kg

  Box Dimensions (LxWxH)	28.0 x 19.0 x 16.5"

• 2 x Adam Professional Audio Sub15 -15" 1000w Subwoofer

  Monitor Type	Active Subwoofer
  Enclosure	Bass-Reflex, Shielded
  Power Rating	1000 W RMS
  Drivers	Subwoofer Driver: 1 x 15.5" / 390 mm Aluminum Cone with 4" / 100 mm Voice Coil

  Frequency Range	20 Hz to 150 Hz
  Maximum Sound Pressure Level (SPL)	112 dB

  Crossover Frequency	150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz

  I/O	2 x 3-Pin XLR Balanced Female Analog Input (100 kOhms) 3 x 3-Pin XLR Balanced Male Analog Output 1 x Stereo RCA Unbalanced Analog Input 1 x Stereo RCA Unbalanced Analog Output

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	90%
  Storage Temperature	-22 to 167°F / -30 to 70°C

  Dimensions (W x H x D)	18.5 x 25.0 x 20.5" / 470.0 x 635.0 x 525.0 mm
  Weight	114.0 lb / 52.0 kg

  Box Dimensions (LxWxH)	34.0 x 28.5 x 25.0"
