Product description

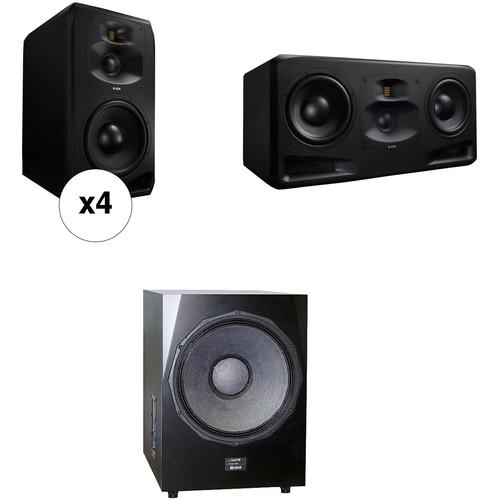

• 4 x Adam Professional Audio S5V Active Three-Way 12" Main/Midfield Studio Monitor (Vertical, Single) The S5V from Adam Professional Audio is an active studio reference monitor designed for vertical orientation in medium-sized and large control rooms. Capable of delivering 1100W RMS of cumulative amp power, it features a 12” HexaCone woofer, 4” dome/cone hybrid midrange driver, and handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.Developed for transparency, the S5V’s frequency response is an impressive 26 Hz – 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S5V’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.
  • • 12" ELE (Extended Linear Excursion) HexaCone woofer
    • Redesigned bass reflex tubes minimize resonance and signal loss
    • 4" carbon composite DCH (Dome/Cone Hybrid) midrange driver
    • Aluminum MPS (Midrange Propagation System) waveguide
    • S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
    • 1100W RMS cumulative power via three PWM (Class D) amplifiers
    • 700W woofer amp
    • 300W midrange amp
    • 100W tweeter amp
    • 26 Hz - 50 kHz frequency response
    • Low harmonic distortion
    • Adjustable input sensitivity and output level
    • 6-band parametric equalizer with HPF and LPF filters
    • Variable delay for timing adjustment
    • XLR analog and AES3 digital inputs
    • USB Type-A for remote access via computer
• Adam Professional Audio S5H Active Three-Way 2x10" Main/Midfield Studio Monitor (Horizontal, Single) The S5H from Adam Professional Audio is an active studio reference monitor designed for horizontal orientation in medium-sized and large control rooms. Capable of delivering 1800W RMS of cumulative amp power, it features two 10” HexaCone woofers, one 4” dome/cone hybrid midrange driver, and a handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.Developed for transparency, the S5H’s frequency response is an impressive 22 Hz to 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S5H’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.
  • • 2 x 10" ELE (Extended Linear Excursion) HexaCone woofers
    • Redesigned bass reflex tubes minimize resonance and signal loss
    • 4" carbon composite DCH (Dome/Cone Hybrid) midrange driver
    • Aluminum MPS (Midrange Propagation System) waveguide
    • S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
    • 1800W RMS cumulative power via four PWM (Class D) amplifiers
    • 2 x 700W woofer amps
    • 300W midrange amp
    • 100W tweeter amp
    • 24 Hz - 50 kHz frequency response
    • Low harmonic distortion
    • Adjustable input sensitivity and output level
    • 6-band parametric equalizer with HPF and LPF filters
    • Variable delay for timing adjustment
    • XLR analog and AES3 digital inputs
    • USB Type-A for remote access via computer
• Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer The Sub2100 from Adam Professional Audio is an active, front-firing subwoofer designed for strong bass response in large control rooms and studios. The large, 21" driver is housed in a specially-tuned bass-reflex cabinet to reproduce frequencies as low as 18Hz. A highly-efficient amplifier delivers up to 1000W of continuous power for a strong, linear performance with very little compression.

  The rear panel of the subwoofer offers XLR and RCA inputs and outputs, as well as an XLR subwoofer output for daisy-chaining. A 180° phase control is provided, as well as gain and high-pass filter controls.
  • Professional-quality subwoofer for large studios and control rooms
  • Large, 21" front-firing driver
  • High-efficiency amplifier provides up to 1000W of continuous power for strong output with low compression
  • Large voice coil maximizes SPL while maintaining ultra-low frequencies
  • Sturdy bass-reflex cabinet with isolation feet to reduce rumble and reflections
  • XLR and RCA I/Os
  • XLR subwoofer output for daisy-chaining
  • 180° phase control
  • High-pass filter and gain control knobs

• 4 x S5V Active Three-Way 12" Main/Midfield Studio Monitor (Vertical, Single) ewwfbrdqcaevzvyxvwrftsveys
• IEC Power Cord
• Limited 2-Year Warranty with 3-Year Extension upon Online Registration

• S5H Active Three-Way 2x10" Main/Midfield Studio Monitor (Horizontal, Single)

• Sub2100 - 1000W 21" Front-Firing Active Subwoofer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4 x Adam Professional Audio S5V Active Three-Way 12" Main/Midfield Studio Monitor (Vertical, Single)

  Monitor Type	Active 3-Way
  Enclosure	Bass-Reflex, Shielded
  Drivers	HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter MF Driver: 1 x 4" / 100 mm Composite Dome/Cone Hybrid with 2.4" / 60 mm Voice Coil LF Driver: 1 x 12" / 312 mm HexaCone Woofer with 3" / 76 mm Voice Coil
  Amplification	HF Amplifier: Class-D Rated at 100 W MF Amplifier: Class-D Rated at 300 W LF Amplifier: Class-D Rated at 700 W

  Frequency Range	26 Hz to 50 kHz
  Maximum Sound Pressure Level (SPL)	128 dB
  Total Harmonic Distortion (THD)	0.3%
  Maximum Input Level	+24 dBu

  EQ	1 x HF Shelf dB 1 x LF Shelf dB 6 x Parametric Equalizer

  Crossover Frequency	Low-Pass Frequency: 250 Hz High-Pass Frequency: 3 kHz

  I/O	1 x 3-Pin XLR Analog Input (48 kOhms) 1 x 3-Pin XLR AES/EBU Digital Input 1 x 3-Pin XLR AES/EBU Digital Output
  Computer Interface	1 x USB Type-B (Remote)

  AC Input Power	100 to 240 VAC at 50/60 Hz
  Power Consumption	650 W (Maximum)

  Dimensions (W x H x D)	15.4 x 27.5 x 20.5" / 390.0 x 698.0 x 520.0 mm
  Weight	114.5 lb / 51.9 kg

  Box Dimensions (LxWxH)	33.0 x 26.0 x 23.0"

• Adam Professional Audio S5H Active Three-Way 2x10" Main/Midfield Studio Monitor (Horizontal, Single)

  Monitor Type	Active 3-Way
  Enclosure	Bass-Reflex, Shielded
  Drivers	HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter MF Driver: 1 x 4" / 100 mm Composite Dome/Cone Hybrid with 2.4" / 60 mm Voice Coil LF Driver: 1 x 10" / 265 mm HexaCone Woofer with 3" / 76 mm Voice Coil
  Amplification	HF Amplifier: Class-D Rated at 100 W MF Amplifier: Class-D Rated at 300 W 2 x LF Amplifier: Class-D Rated at 700 W

  Frequency Range	22 Hz to 50 kHz
  Maximum Sound Pressure Level (SPL)	131 dB
  Total Harmonic Distortion (THD)	0.3%
  Maximum Input Level	+24 dBu

  EQ	1 x HF Shelf dB 1 x LF Shelf dB 6 x Parametric Equalizer

  Crossover Frequency	Low-Pass Frequency: 250 Hz High-Pass Frequency: 3 kHz

  I/O	1 x 3-Pin XLR Analog Input (48 kOhms) 1 x 3-Pin XLR AES/EBU Digital Input 1 x 3-Pin XLR AES/EBU Digital Output
  Computer Interface	1 x USB Type-B (Remote)

  AC Input Power	100 to 240 VAC at 50/60 Hz
  Power Consumption	900 W (Maximum)

  Dimensions (W x H x D)	34.8 x 16.9 x 19.7" / 885.0 x 430.0 x 500.0 mm
  Weight	160.0 lb / 72.6 kg

• Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer

  Monitor Type	Active Subwoofer
  Enclosure	Bass-Reflex, Unshielded
  Power Rating	1000 W RMS 1200 W Peak
  Drivers	Full-Range Driver: 1 x 21" / 53.34 cm Paper Cone with 6" / 152 mm Voice Coil

  Frequency Range	18 Hz to 150 Hz
  Maximum Sound Pressure Level (SPL)	128 dB
  Phase Adjustment	Phase Inversion 0 / 180°

  Crossover Frequency	150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz

  I/O	2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms) 3 x 3-Pin XLR Balanced Male Analog Output 1 x Stereo RCA Unbalanced Analog Input 1 x Stereo RCA Unbalanced Analog Output

  Dimensions (W x H x D)	23.6 x 33.5 x 27.7" / 600.0 x 850.0 x 705.0 mm
  Weight	187.4 lb / 85.0 kg

  Box Dimensions (LxWxH)	37.5 x 34.0 x 29.5"
