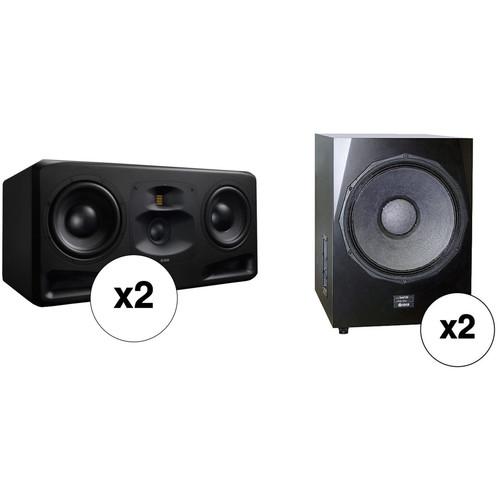

Product description The Frankfurt from Adam Professional Audio is a matched 2.2 speaker system designed to provide high SPL, extended frequency reproduction, and tonal customization for recording, mixing, and mastering engineers in large control rooms. It includes two S5H active 3-way monitors and two Sub2100 active subwoofers. The horizontally oriented monitors feature dual 10" woofers, 4" midrange drivers, and S-ART tweeters. Offering 1100W RMS of power, 22 Hz to 50 kHz frequency response, and 6-band EQ with high- and low-pass filters, they are well suited for critical listening. The subwoofers feature 21" woofers, 18 Hz to 150 Hz frequency response, and 1000W RMS of power. Connectivity is straightforward thanks to standard XLR 3-pin jacks. - 2 x Adam Professional Audio S5H Active Three-Way 2x10" Main/Midfield Studio Monitor (Horizontal, Single) The S5H from Adam Professional Audio is an active studio reference monitor designed for horizontal orientation in medium-sized and large control rooms. Capable of delivering 1800W RMS of cumulative amp power, it features two 10” HexaCone woofers, one 4” dome/cone hybrid midrange driver, and a handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.Developed for transparency, the S5H’s frequency response is an impressive 22 Hz to 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S5H’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.
-
- 2 x 10" ELE (Extended Linear Excursion) HexaCone woofers
- Redesigned bass reflex tubes minimize resonance and signal loss
- 4" carbon composite DCH (Dome/Cone Hybrid) midrange driver
- Aluminum MPS (Midrange Propagation System) waveguide
- S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
- 1800W RMS cumulative power via four PWM (Class D) amplifiers
- 2 x 700W woofer amps
- 300W midrange amp
- 100W tweeter amp
- 24 Hz - 50 kHz frequency response
- Low harmonic distortion
- Adjustable input sensitivity and output level
- 6-band parametric equalizer with HPF and LPF filters
- Variable delay for timing adjustment
- XLR analog and AES3 digital inputs
- USB Type-A for remote access via computer
- 2 x Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer The Sub2100 from Adam Professional Audio is an active, front-firing subwoofer designed for strong bass response in large control rooms and studios. The large, 21" driver is housed in a specially-tuned bass-reflex cabinet to reproduce frequencies as low as 18Hz. A highly-efficient amplifier delivers up to 1000W of continuous power for a strong, linear performance with very little compression.
The rear panel of the subwoofer offers XLR and RCA inputs and outputs, as well as an XLR subwoofer output for daisy-chaining. A 180° phase control is provided, as well as gain and high-pass filter controls. - Professional-quality subwoofer for large studios and control rooms
- Large, 21" front-firing driver
- High-efficiency amplifier provides up to 1000W of continuous power for strong output with low compression
- Large voice coil maximizes SPL while maintaining ultra-low frequencies
- Sturdy bass-reflex cabinet with isolation feet to reduce rumble and reflections
- XLR subwoofer output for daisy-chaining
- High-pass filter and gain control knobs
In the Box - 2 x S5H Active Three-Way 2x10" Main/Midfield Studio Monitor (Horizontal, Single)
- IEC Power Cord
- Limited 2-Year Warranty with 3-Year Extension upon Online Registration
- 2 x Sub2100 - 1000W 21" Front-Firing Active Subwoofer yaruyfxtvvfvfxccarzacvwbexaeeuxfyvrat
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adam Professional Audio The Frankfurt Matched 2.2 Speaker System with 2x10" 3-Way Monitors and 21" Subwoofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Adam Professional Audio S5H Active Three-Way 2x10" Main/Midfield Studio Monitor (Horizontal, Single)
| | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter
MF Driver: 1 x 4" / 100 mm Composite Dome/Cone Hybrid with 2.4" / 60 mm Voice Coil
LF Driver: 1 x 10" / 265 mm HexaCone Woofer with 3" / 76 mm Voice Coil | | Amplification | HF Amplifier: Class-D Rated at 100 W
MF Amplifier: Class-D Rated at 300 W
2 x LF Amplifier: Class-D Rated at 700 W | | | | Frequency Range | 22 Hz to 50 kHz | | Maximum Sound Pressure Level (SPL) | 131 dB | | Total Harmonic Distortion (THD) | 0.3% | | Maximum Input Level | +24 dBu | | | | EQ | 1 x HF Shelf dB
1 x LF Shelf dB 6 x Parametric Equalizer | | | | Crossover Frequency | Low-Pass Frequency: 250 Hz
High-Pass Frequency: 3 kHz | | | | I/O | 1 x 3-Pin XLR Analog Input (48 kOhms)
1 x 3-Pin XLR AES/EBU Digital Input
1 x 3-Pin XLR AES/EBU Digital Output | | Computer Interface | 1 x USB Type-B (Remote) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 900 W (Maximum) | | | | Dimensions (W x H x D) | 34.8 x 16.9 x 19.7" / 885.0 x 430.0 x 500.0 mm | | Weight | 160.0 lb / 72.6 kg | - 2 x Adam Professional Audio Sub2100 - 1000W 21" Front-Firing Active Subwoofer
| | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 1000 W RMS
1200 W Peak | | Drivers | Full-Range Driver: 1 x 21" / 53.34 cm Paper Cone with 6" / 152 mm Voice Coil | | | | Frequency Range | 18 Hz to 150 Hz | | Maximum Sound Pressure Level (SPL) | 128 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
3 x 3-Pin XLR Balanced Male Analog Output
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | Dimensions (W x H x D) | 23.6 x 33.5 x 27.7" / 600.0 x 850.0 x 705.0 mm | | Weight | 187.4 lb / 85.0 kg | | | | Box Dimensions (LxWxH) | 37.5 x 34.0 x 29.5" |
