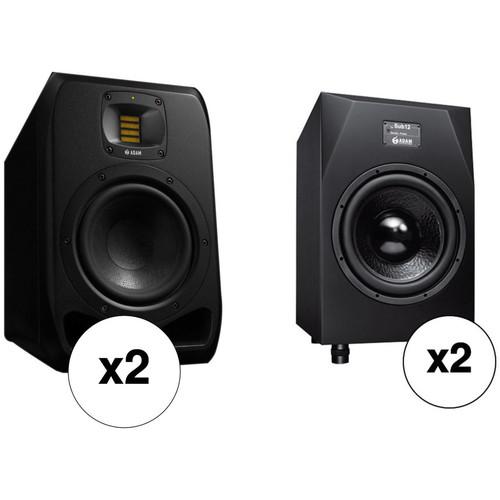

User Manual for Adam Professional Audio The Hamburg Matched 2.2 System with 7" 2-Way Monitors and 12" Subwoofers

• Product category: Studio Monitors Adam Professional Audio
• Brand: Adam Professional Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Adam Professional Audio Studio Monitors

Product description

• 2 x Adam Professional Audio S2V Active Two-Way 7" Nearfield Studio Monitor (Vertical, Single) The S2V from Adam Professional Audio is an active studio reference monitor designed for vertical orientation in small to medium-sized control rooms. Capable of delivering 350W RMS of cumulative amp power, it features a 7” HexaCone woofer and handmade folded-ribbon tweeter. The Adam-designed high-range propagation system (HPS) waveguide ensures a wide, stable sweet spot.Developed for transparency, the S2V’s frequency response is an impressive 35 Hz – 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S2V’s settings.Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.
  • • 7" ELE (Extended Linear Excursion) HexaCone woofer
    • Redesigned bass reflex tubes minimize resonance and signal loss
    • S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
    • 350W RMS cumulative power via two amplifiers
    • 300W PWM (Class D) woofer amp
    • 50W Class A/B tweeter amp
    • 35 Hz - 50 kHz frequency response
    • Low harmonic distortion
    • Adjustable input sensitivity and output level
    • 6-band parametric equalizer with HPF and LPF filters
    • Variable delay for timing adjustment
    • XLR analog and AES3 digital inputs
    • USB Type-A for remote access via computer
• 2 x Adam Professional Audio Sub12 - 300W 12" Active Subwoofer The Sub12 from Adam Audio is a powerful 12-inch subwoofer ideal for use in larger control rooms. It provides a frequency response of 22-150Hz and offers rear-panel gain control and filter adjustment. The Sub12 reflex tubes fire downwards, avoiding noise due to the size and construction ventilation of the unit. Powered by an internal 300W RMS amplifier, the Sub12 offers both XLR and RCA I/O connectors for compatibility with almost any system.
  • 12-inch, 300W down-firing subwoofer
  • Perfect for larger rooms
  • Response of 22-150Hz
  • XLR and RCA I/O connectors

• 2 x S2V Active Two-Way 7" Nearfield Studio Monitor (Vertical, Single) xtayecccywuq
• IEC Power Cord
• Limited 2-Year Warranty with 3-Year Extension upon Online Registration

• 2 x Sub12 - 300W 12" Active Subwoofer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Adam Professional Audio S2V Active Two-Way 7" Nearfield Studio Monitor (Vertical, Single)

  Monitor Type	Active 2-Way
  Enclosure	Bass-Reflex, Shielded
  Drivers	HF Driver: 1 x 2" / 50.8 mm Ribbon Tweeter LF Driver: 1 x 7" / 178 mm HexaCone Woofer with 1.5" / 39 mm Voice Coil
  Amplification	HF Amplifier: Class-AB Rated at 50 W LF Amplifier: Class-D Rated at 300 W

  Frequency Range	35 Hz to 50 kHz
  Maximum Sound Pressure Level (SPL)	120 dB
  Total Harmonic Distortion (THD)	0.4%
  Maximum Input Level	+24 dBu

  EQ	1 x HF Shelf dB 1 x LF Shelf dB 6 x Parametric Equalizer

  Crossover Frequency	3 kHz

  I/O	1 x 3-Pin XLR Analog Input (48 kOhms) 1 x 3-Pin XLR AES/EBU Digital Input 1 x 3-Pin XLR AES/EBU Digital Output
  Computer Interface	1 x USB Type-B (Remote)

  AC Input Power	100 to 240 VAC at 50/60 Hz
  Power Consumption	230 W (Maximum)

  Dimensions (W x H x D)	8.7 x 13.6 x 13.3" / 222.0 x 346.0 x 338.0 mm
  Weight	24.2 lb / 11.0 kg

  Box Dimensions (LxWxH)	20.0 x 17.0 x 14.0"

• 2 x Adam Professional Audio Sub12 - 300W 12" Active Subwoofer

  Monitor Type	Active Subwoofer
  Enclosure	Bass-Reflex, Unshielded
  Power Rating	300 W RMS
  Drivers	Full-Range Driver: 1 x 12" / 30.48 cm Paper Cone

  Frequency Range	22 Hz to 150 Hz
  Maximum Sound Pressure Level (SPL)	118 dB
  Phase Adjustment	Phase Inversion 0 / 180°

  Crossover Frequency	150 Hz Crossover Frequency is Adjustable from 50 to 150 Hz

  I/O	2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms) 3 x 3-Pin XLR Balanced Male Analog Output 1 x Stereo RCA Unbalanced Analog Input 1 x Stereo RCA Unbalanced Analog Output

  Dimensions (W x H x D)	14.2 x 23.6 x 17.7" / 360.0 x 600.0 x 450.0 mm
  Weight	57.0 lb / 26.0 kg

  Box Dimensions (LxWxH)	27.9 x 23.5 x 18.5"
