Product description

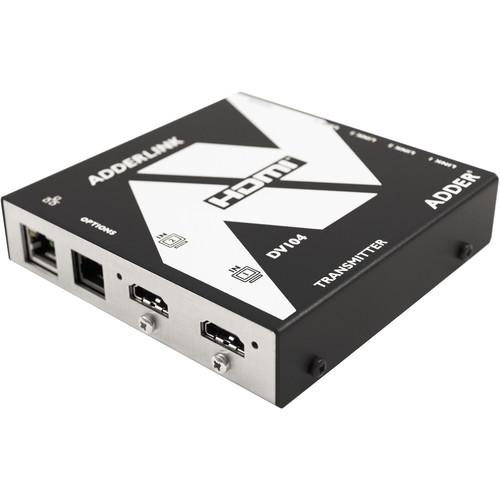

Extend your video display over long distances with the ADDERLink DV104T HDMI Digital Audio/Video Switch from Adder. The DV104T allows you to input up to two HDMI sources and send video and audio to up to four HDMI or DVI-D displays over Cat x cable.

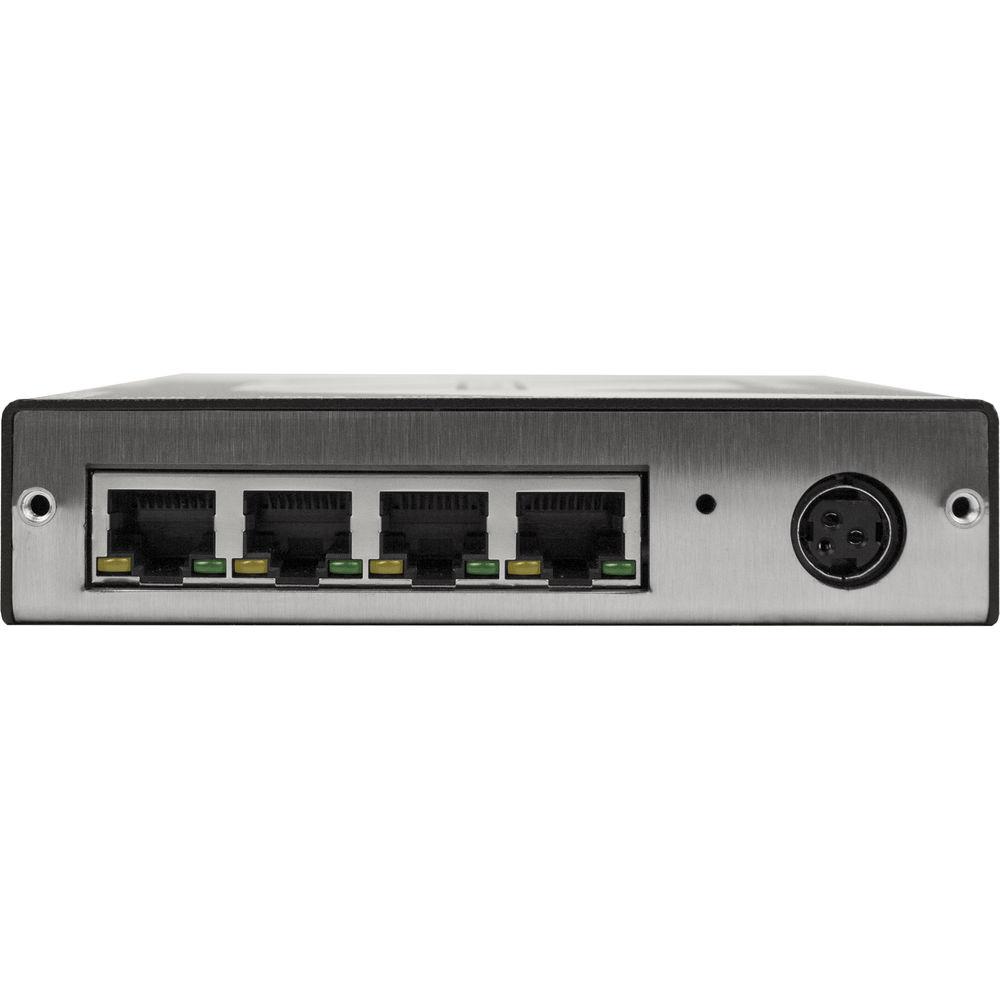

The DV104T inputs up to 1080p or WUXGA (1920 x 1200) video and up to 192 kHz audio over its HDMI inputs, and it outputs over its four RJ45 LINK ports. Using shielded Cat 6 or higher cables, you can transmit high-resolution video and audio to HDMI or DVI-D displays up to 164' away using up to four optional DV100 HDMI receivers or up to four optional DVI-D receivers.

The system is managed by its secure POD Manager web-based administration tool, and connects to an IP network over Ethernet. The admin helps monitor your remote display status, configure which screens and speakers the video and audio will cast to, enable and disable individual displays, and even configure automatic failover if one display goes out of service. The system also provides an API for third-party data control.

The DV104T can be mounted using its keyhole mount, or mounted in a rack-based system with an optional rail kit. Also included with the unit is an AC adapter with a power cord.

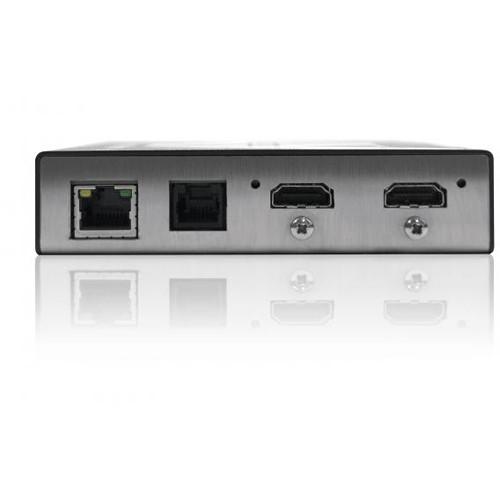

  • 2x4 matrix audio/video switcher with two HDMI inputs and four RJ45 outputs
  • Cast up to 1920 x 1200 (WUXGA) video as well as 1080p, 720p, and 480p resolutions
  • Supports up to 8 channels of 24-bit, 192 kHz HDMI audio
  • Transmit video to up to four HDMI or DVI-D displays up to 164' away with shielded Cat 6 or higher cables
  • Secure, built-in POD Manager web admin to configure and monitor your display links over an IP network
  • The unit features a failover function; if a display goes down it can automatically switch to another port
  • The firmware features an API for third-party software control integration
  • The unit supports up to four optional DV100 HDMI receivers or up to four optional DV120 DVI-D receivers
In the Box Adder ADDERLink DV104T HDMI Digital Audio/Video Switch
  • 18W Power Adapter with Cord
  • 4 x Adhesive Rubber Feet
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Adder ADDERLink DV104T HDMI Digital Audio Video Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Adder ALDV104T-US Specs

    Material of Construction Metal
    Power Input: 100-240 VAC, 50/60 Hz
    Output: 12 VDC, 18 W
    Video Support Uncompressed
    WUXGA (1920 x 1200), 1080p, 720p, or 480p
    60 Hz
    24-bit color depth
    Audio Support 8-channel HDMI
    16, 20, or 24-bit at 32/44.1/48/88.2/96/176.4/192 kHz
    Security Authentication System HTTP digest (RFC 2617)
    Max CAT Cable Distance 164' / 50 m (with Cat 6 or higher)
    Connectors 2 x HDMI type A inputs
    4 x RJ45 LINK outputs
    1 x 10/100 Mb/s Ethernet
    1 x RS-232C
    1 x 3-pin power
    Keyhole Mounting Slots 1 x slot, .2 to .4" / 5 to 9 mm
    Operating Temperature 32 to 104°F / 0 to 40°C
    Approvals CE, FCC
    Dimensions 4.5 x 4.5 x 1" / 11.5 x 11.4 x 2.6 cm
    Weight 1 lb / 440 g
