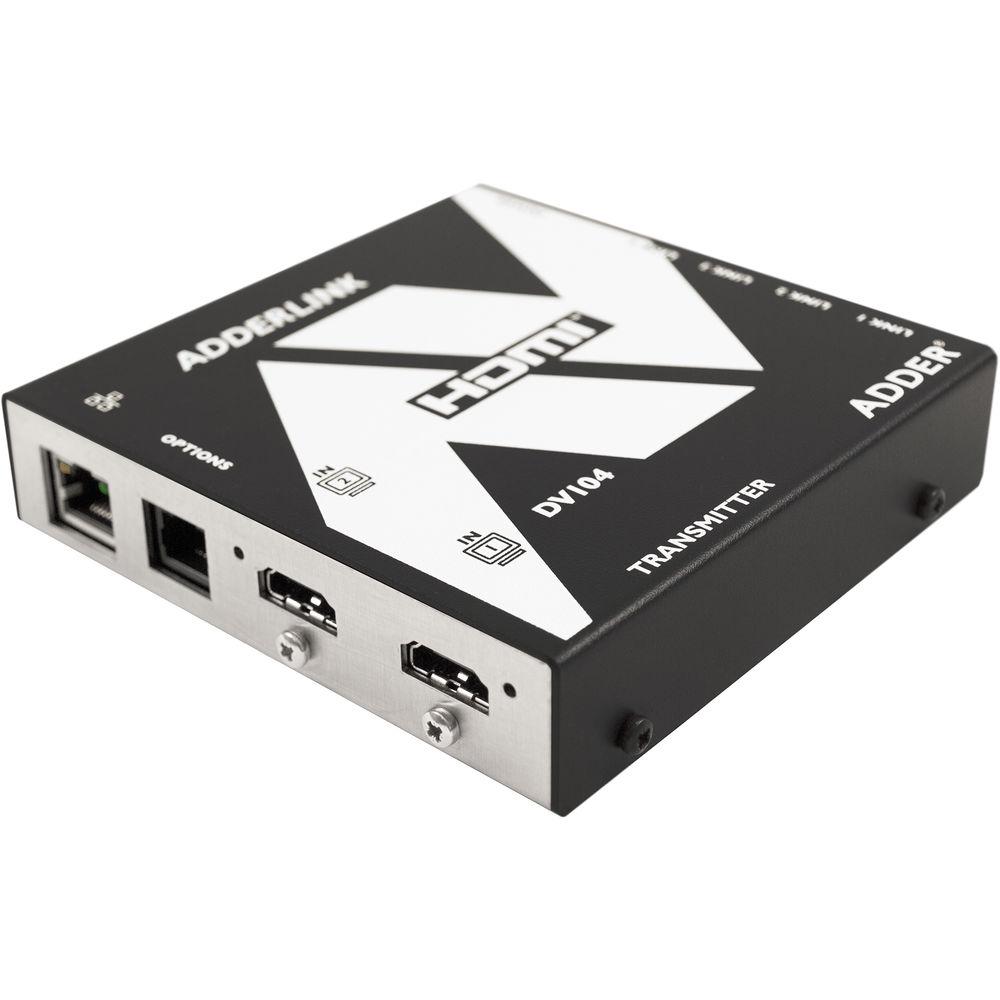

Product description Extend your video display over long distances with the ADDERLink DV104T HDMI Digital Audio/Video Switch from Adder. The DV104T allows you to input up to two HDMI sources and send video and audio to up to four HDMI or DVI-D displays over Cat x cable.

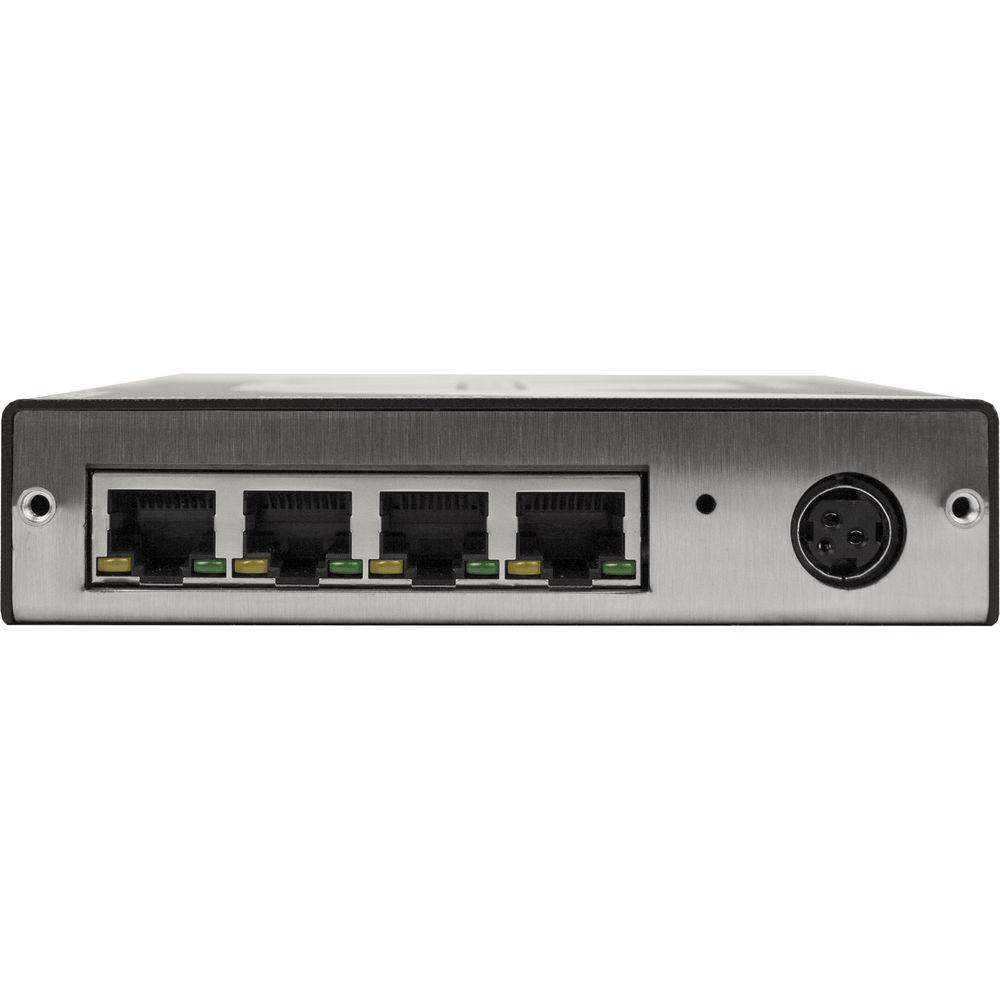

The DV104T inputs up to 1080p or WUXGA (1920 x 1200) video and up to 192 kHz audio over its HDMI inputs, and it outputs over its four RJ45 LINK ports. Using shielded Cat 6 or higher cables, you can transmit high-resolution video and audio to HDMI or DVI-D displays up to 164' away using up to four included DV100 HDMI receivers or up to four optional DVI-D receivers.
The system is managed by its secure POD Manager web-based administration tool, and connects to an IP network over Ethernet. The admin helps monitor your remote display status, configure which screens and speakers the video and audio will cast to, enable and disable individual displays, and even configure automatic failover if one display goes out of service. The system also provides an API for third-party data control.
The DV104T can be mounted using its keyhole mount, or mounted in a rack-based system with an optional rail kit. Also included with the unit is one 5' HDMI cable with a locking connector and an AC adapter with a power cord. - 2x4 matrix audio/video switcher with two HDMI inputs and four RJ45 outputs
- Cast up to 1920 x 1200 (WUXGA) video as well as 1080p, 720p, and 480p resolutions
- Supports up to 8 channels of 24-bit, 192 kHz HDMI audio
- Transmit video to up to four HDMI or DVI-D displays up to 164' away with shielded Cat 6 or higher cables
- Secure, built-in POD Manager web admin to configure and monitor your display links over an IP network
- The unit features a failover function; if a display goes down it can automatically switch to another port
- The firmware features an API for third-party software control integration

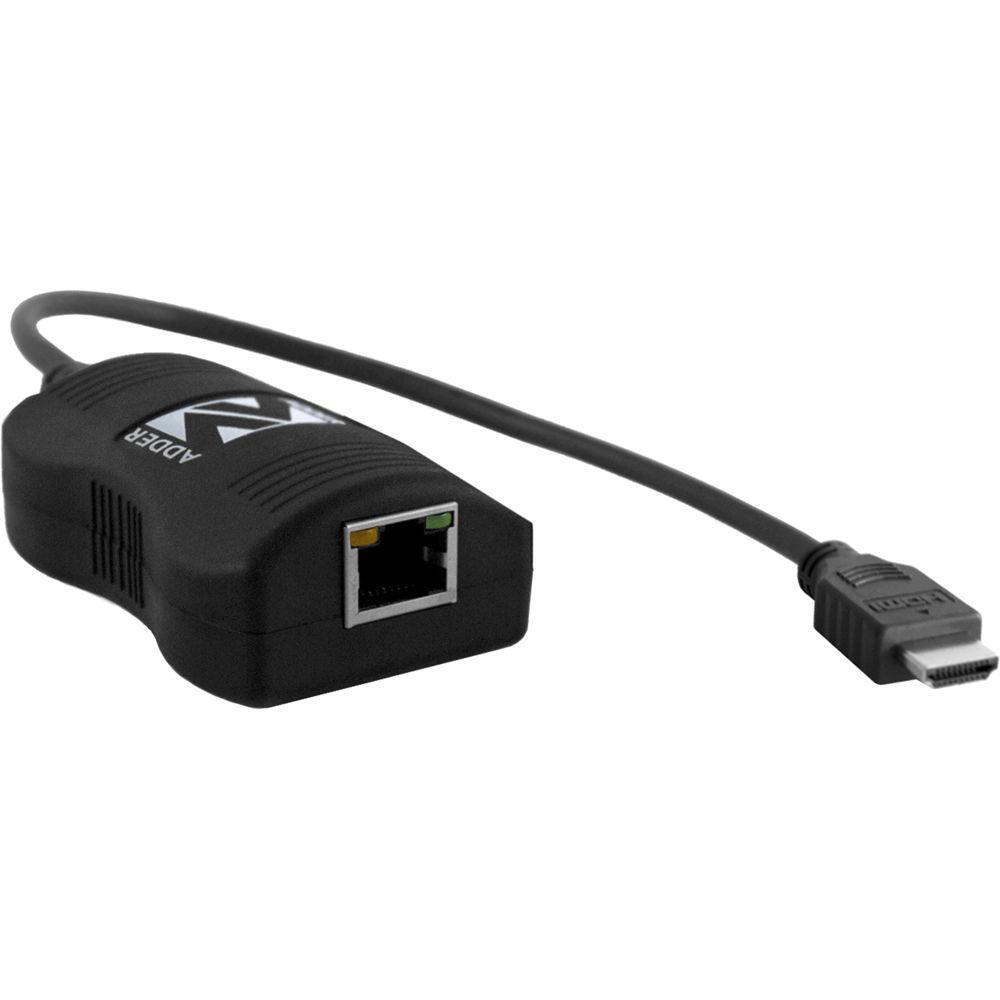

- The unit supports up to four included DV100 HDMI receivers or up to four optional DV120 DVI-D receivers

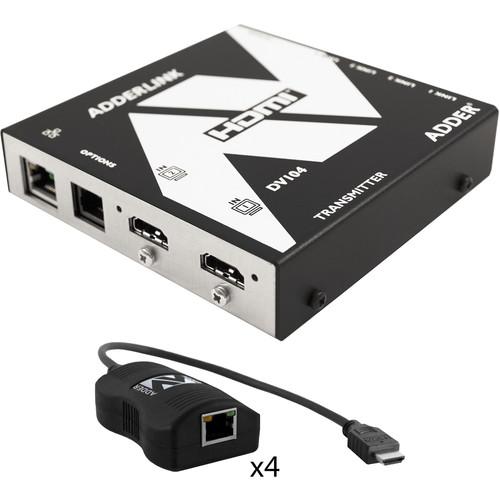

In the Box Adder ADDERLink DV104T HDMI Digital Audio/Video Switch with 4 x HDMI DV100 Receivers 4 x ADDERLink DV100 HDMI Receiver rfsvtfffbqfebtbweaewya HDMI Cable (5') 18W Power Adapter with Cord 4 x Adhesive Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink DV104T HDMI Digital Audio Video Switch with 4 x HDMI DV100 Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

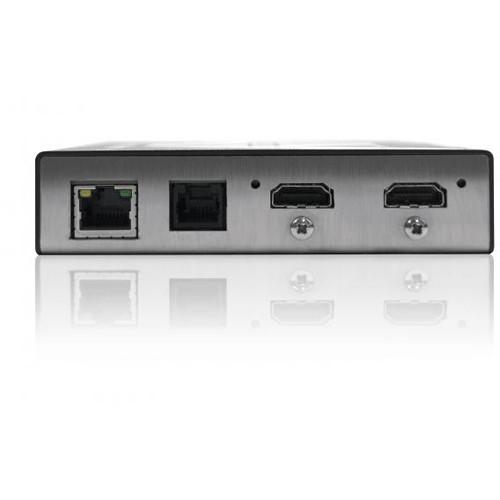

Technical parametersAdder ALDV104K-US Specs Material of Construction | Metal | Power | Input: 100-240 VAC, 50/60 Hz Output: 12 VDC, 18 W | Video Support | Uncompressed WUXGA (1920 x 1200), 1080p, 720p, or 480p 60 Hz 24-bit color depth | Audio Support | 8-channel HDMI 16, 20, or 24-bit at 32/44.1/48/88.2/96/176.4/192 kHz | Security Authentication System | HTTP digest (RFC 2617) | Max CAT Cable Distance | 164' / 50 m (with Cat 6 or higher) | Connectors | 2 x HDMI type A inputs 4 x RJ45 LINK outputs 1 x 10/100 Mb/s Ethernet 1 x RS-232C 1 x 3-pin power | Keyhole Mounting Slots | 1 x slot, .2 to .4" / 5 to 9 mm | Operating Temperature | 32 to 104°F / 0 to 40°C | Approvals | CE, FCC | Dimensions | 4.5 x 4.5 x 1" / 11.5 x 11.4 x 2.6 cm | Weight | 1 lb / 440 g |
