User Manual for Adder ADDERLink ipeps Dual-Access KVM Switch Click to enlarge the picture
Contents of the user manual for the Adder ADDERLink ipeps Dual-Access KVM Switch
- Product category: KVM Switches Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Switches
|
User manual for the Adder ADDERLink ipeps Dual-Access KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|

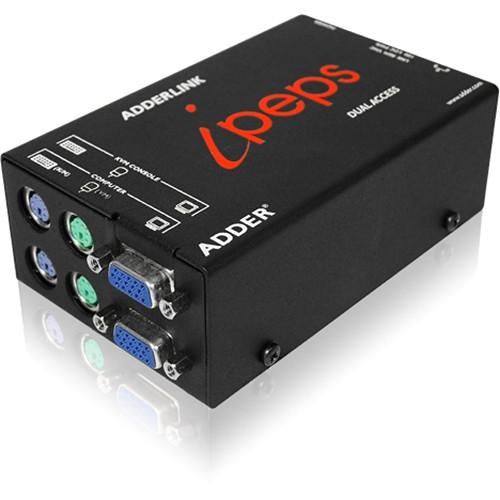

Product description Multi-Monitors: Maximizing Multitasking Read More The ADDERLink ipeps Dual-Access KVM Switch from Adder lets you remotely control a system via an IP connection and offers an additional set of ports for local access. This KVM switch provides you full control to a host system, including BIOS-level access, while the host computer operates on its original operating system. This form of remote connection also helps ensure there is no performance hit while running other remote solutions.
The ADDERLink ipeps sports a set of VGA and PS/2 ports for the host system along with an additional set of the same interfaces, allowing a local user to access the same computer; two included USB adapters allow you to use USB-based devices. To create a secure connection, it comes armed with VNC client software, AES 128-bit encryption, and RSA 2048-bit public key authentication. Additionally, it can create a virtual drive via USB (using the previously mentioned adapters), letting you transfer data remotely. - Feed-through ports for local KVM console access
- Interface powered (optional external PSU available)
- Independent operation provides full control, even during boot up, at the BIOS level, or in computer crash states
- USB or PS/2 keyboard and mouse connections (USB via included adapter)
- Virtual media support (via USB)
- Supports resolutions of up to 1600 x 1200
- Enterprise grade security (using AES 128-bit encryption and RSA 2048-bit public key authentication) further enhanced using Real VNC, which allows for the creation of ciphered user communications
- 16 user profiles and access data logging
- Up to 16 units can be rack mounted in 2 RU of rack space
- Supports exclusive-access mode or up to four simultaneous connections
- Auto-sensing 10/100 Mb/s Ethernet port
In the Box Adder ADDERLink ipeps Dual-Access KVM Switch CD-ROM 4 x Self-Adhesive Rubber Feet 2 x USB Converter Plugs KVM Cable Set Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink ipeps Dual-Access KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder AL-IPEPS-DA Specs | Supported Resolutions | Up to 1600 x 1200 | | System Requirements | System with an available VGA port along with USB or PS/2 ports | | Supported Systems | Supports RI, RS/6000, Alpha, SGI, Sun, and Mac | | Operating Systems Supported | Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS X/macOS, NetWare | | Connections | Remote
Video: HDD15 (VGA)
Keyboard/Mouse: 3.3' / 1 m MiniDIN6 (PS/2) 3-in-1 cable supplied
Local
Video: HDD15 (VGA)
Keyboard/Mouse: MiniDIN6 (PS/2) | | LAN Connectors | 1 x 10/100 Ethernet (auto-sensing) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | CE, FCC | | Dimensions (W x H x D) | 4.7 x 1.7 x 3" / 120 x 42 x 75 mm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.92 lb | | Box Dimensions (LxWxH) | 11.0 x 10.0 x 2.5" |
