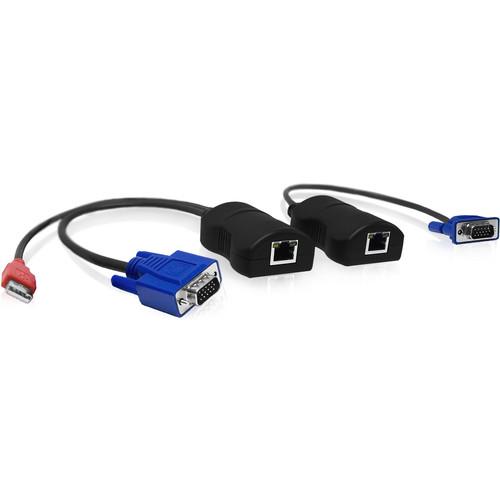

User Manual for Adder ADDERLink LPV150 VGA Extender Click to enlarge the picture
Contents of the user manual for the Adder ADDERLink LPV150 VGA Extender
- Product category: KVM Extenders Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Extenders
|
User manual for the Adder ADDERLink LPV150 VGA Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|
Product description The ADDERLink LPV150 KVM Extender from Adder extends a computer's VGA signal up to 492.1' (150m) away, letting the system deliver advertisements to a digital signage display at a different location. The ADDERLink LPV150 delivers 720p, 1080i, and 1080p resolutions through the VGA ports on the transmitter and receiver. VGA signals are transmitted between the pair of units using your CATx cable. In addition, the LPV150 draws power from the computer's USB port. - Delivers 1080p, 1080i, and 720p resolutions up to 492.1' (150 m)
- To help reduce cable clutter, the ADDERLink LPV receiver and transmitter have been designed to be powered by a USB port on your computer
- Extend messages to digital signage displays via a single CATx cable
- Supports DDC (Display Data Channel)
- The remote module has a video-adjustment skew to control picture sharpness on the display screen
In the Box Adder ADDERLink LPV150 VGA Extender Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink LPV150 VGA Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder ALPV150P Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x RJ45 (Input)
Receiver:
1 x HD15 VGA Male (Output)
1 x RJ45 Ethernet (Output)
1 x USB Type-A Male (Output) | | Supported Resolutions | 1920 x 1080
1024 x 720 | | Maximum Transmission Distance | 492.1' / 150 m | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 1.8 x 2.5 x 0.8" / 45.0 x 63.0 x 21.0 mm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
