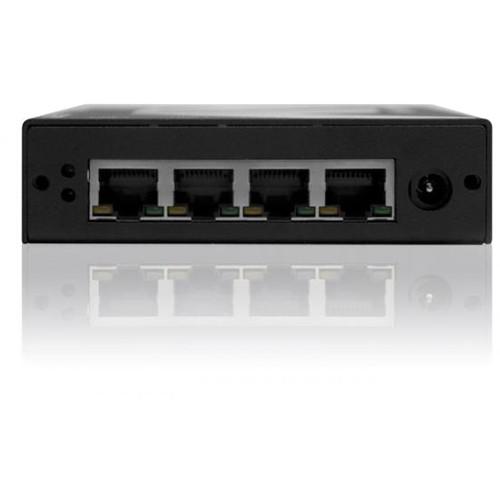

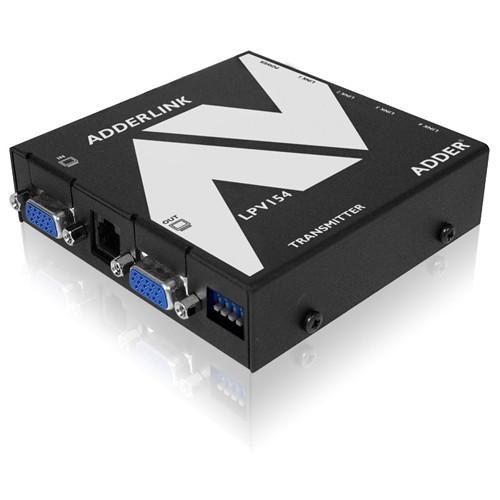

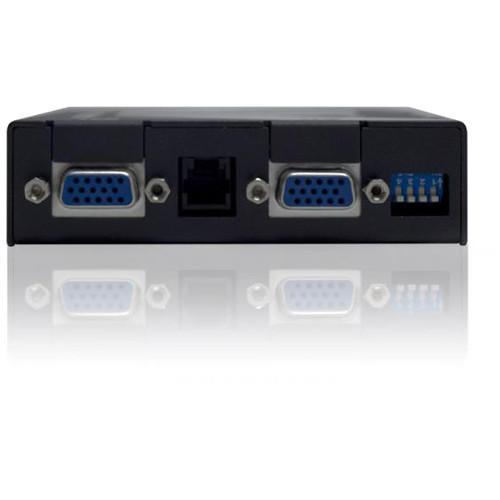

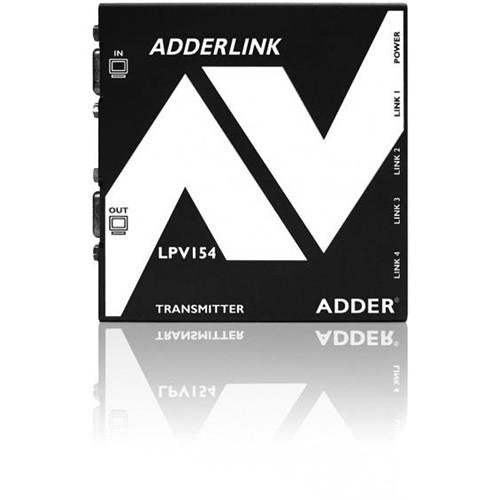

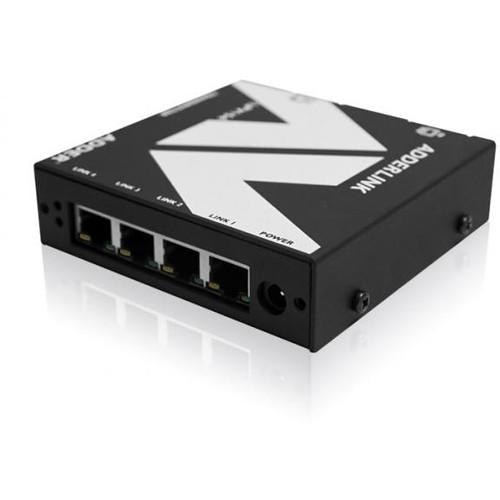

User Manual for Adder ADDERLink LPV154T 4-Way VGA Transmitter Click to enlarge the picture
Contents of the user manual for the Adder ADDERLink LPV154T 4-Way VGA Transmitter
- Product category: KVM Extenders Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Extenders
 |
User manual for the Adder ADDERLink LPV154T 4-Way VGA Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|
Product description The ADDERLink LPV154T 4-Way VGA Transmitter from Adder splits the VGA signal from a single system to four optional ALPV150R receivers up to 492.1' away, letting the computer deliver the same advertisement to multiple digital signage displays. The ADDERLink LPV154T can deliver up to 1080p resolutions from a single VGA connection, and signals are transmitted to user-supplied receivers using your CATx cable. In addition, an adapter is included to power the LPV154T 4-Way VGA transmitter. - Delivers 1080p, 1080i, and 720p resolutions up to 492.1' (150m)
- The LPV154T takes the same HD input and sends it to 4 different screens connected via optional LPV150R receivers
- Feed-through port on the unit lets you cascade video signals to another LAV154T to support up to eight displays
- The remote module has a video adjustment screw to control picture sharpness on the display screen
- For compatibility, the ADDERLink LPV enables a user to clone the EDID (Extended Display Identification Data) from a display or use a default EDID
- The LPV154T unit is rack-mountable using an optional ADDERLink rackmount chassis
In the Box Adder ADDERLink LPV154T 4-Way VGA Transmitter CD-ROM Guide Power Adapter with Cord Analogue Video Link Cable Set of Self-Adhesive Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink LPV154T 4-Way VGA Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder ALPV154T Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x RJ45 RS232 (Input)
1 x HD15 VGA (Output)
4 x RJ45 Ethernet (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 492.1' / 150 m | | | | DC Input Power | 5 VDC at 2.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 1.8 x 2.5 x 0.8" / 45.0 x 63.0 x 21.0 mm |
