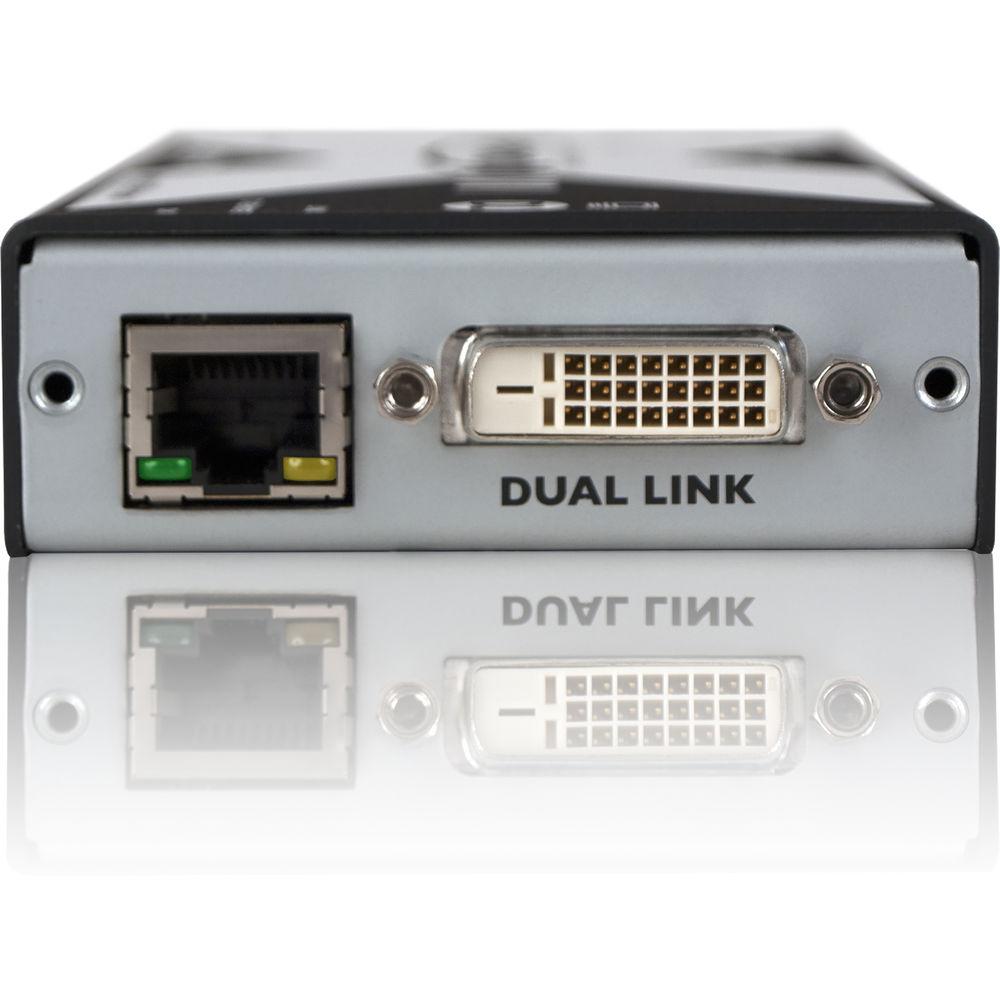

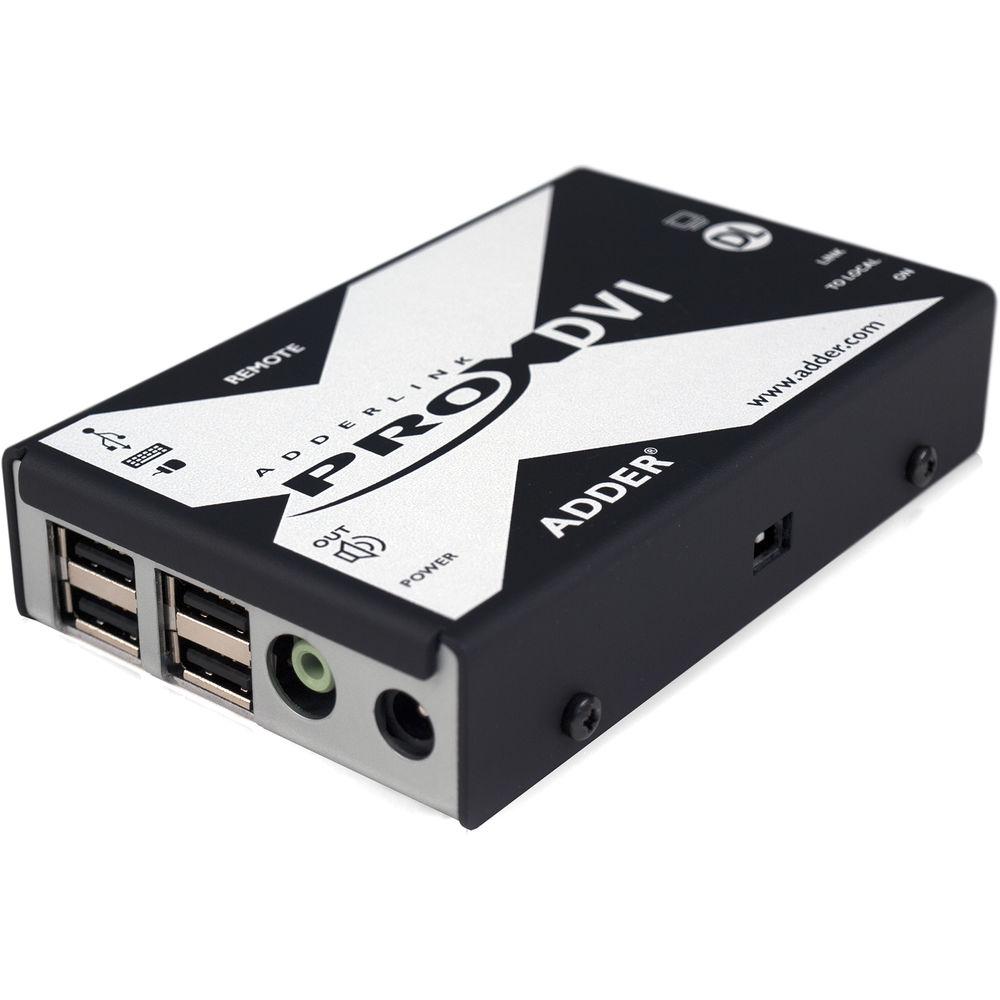

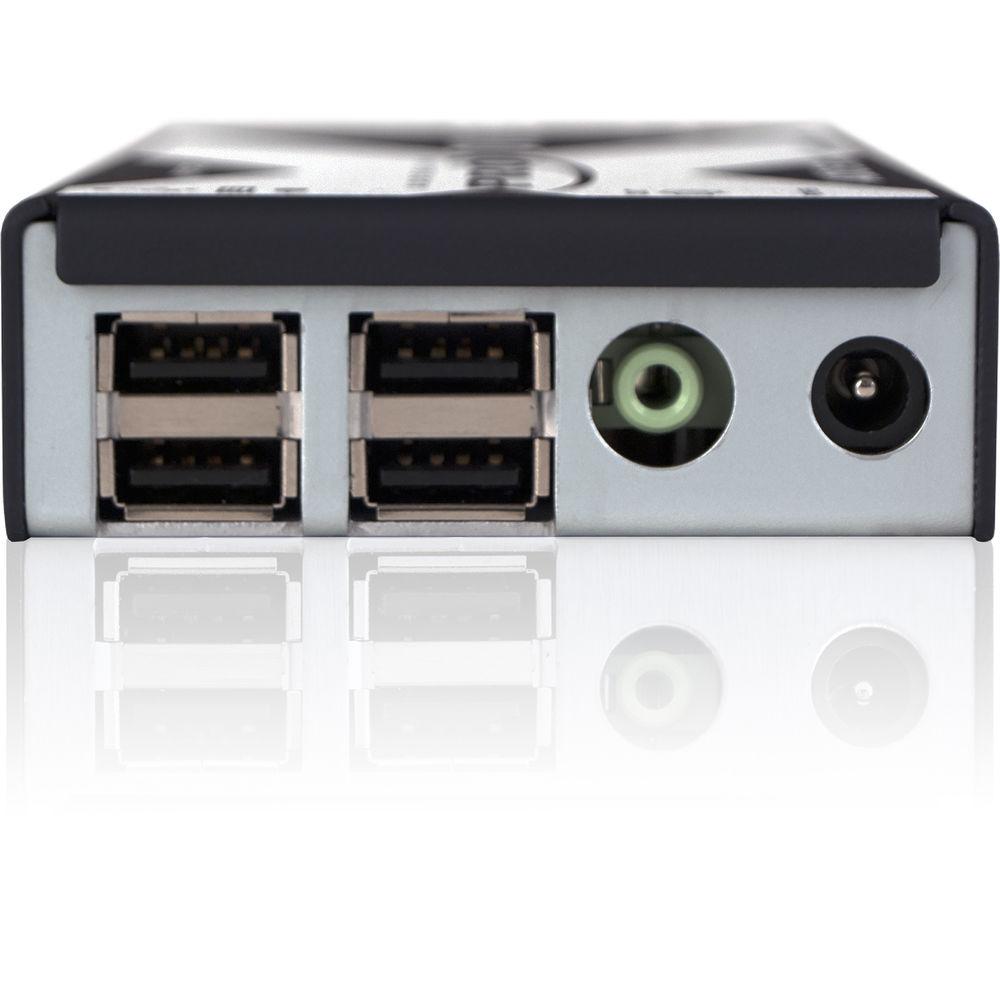

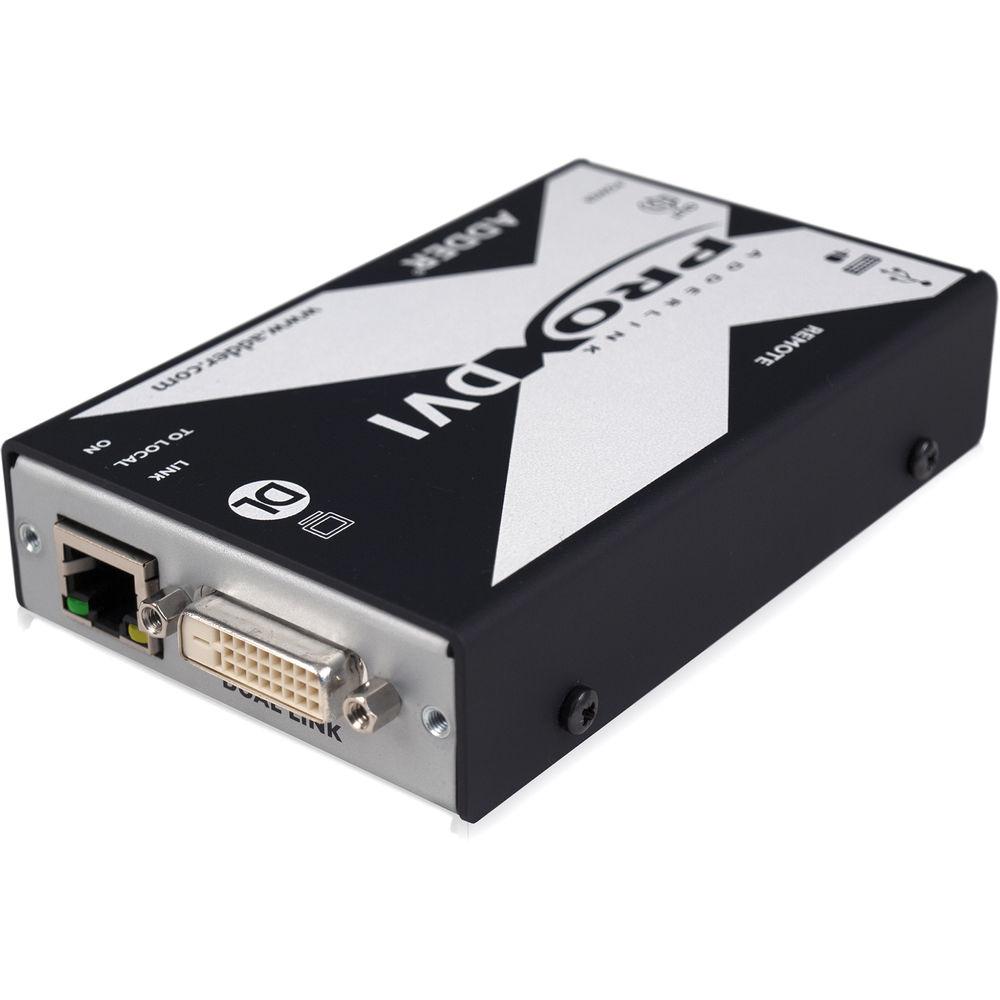

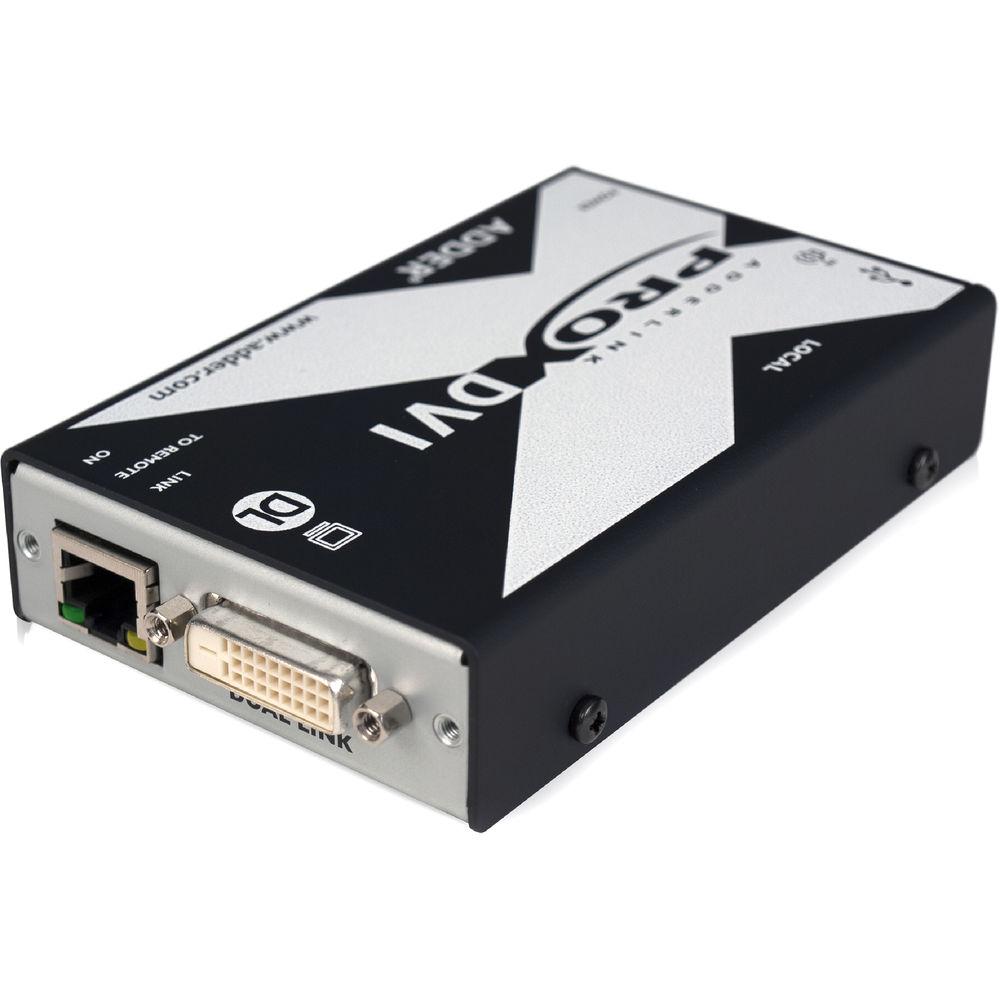

Product description The AdderLink X-DVI PRO DL KVM Extender from Adder extends video, audio, and control signals up to 164' away from a DVI-D equipped system, letting the system operate in a secure and temperature-controlled environment. The X-DVI PRO DL includes transmitter and receiver modules that are joined using an optional CAT 5e, 6a, or 7 cable to transmit 2560 x 1600 visuals, stereo sounds, and full-speed USB 2.0 data. The transmitter module features a DVI-D input, USB 2.0 Type-B port, and 3.5mm audio-in jack for the computer system, while the receiver modules provide one dual-link DVI-D port, one 3.5mm audio jack, and four USB 2.0 ports for your set of peripherals such as a monitor, keyboard, mouse, external storage drive, and pair of speakers. In addition, full-speed (12 Mb/s) isochronous devices are also supported. - The X-DVI PRO DL allows you to remote your monitor with resolutions up to 2560 x 1600 @ 60 Hz up to 164' (50m) away from your computer
- Using a visually lossless technique, no visible artifacts and latency are introduced
- Video, USB 2.0 (low and full speed), and audio pass along a single CAT 5e, 6a, or 7 cable
- Four USB 2.0 ports enable connection of mice, keyboards, graphics tablets, jog shuttles, joysticks, 3D explorers, and mass storage devices
- The X-DVI PRO DL extender consumes less than 6W per point
- The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer
- With no need for drivers or software to be installed, the AdderLink X-DVI PRO DL extender is delivered in a zero-config state so you can plug the units in and start working with them straight away
- Stereo CD-quality sound (stereo channel 16-bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out
In the Box Adder AdderLink X-DVI PRO DL KVM Extender 2 x Power Adapters Dual-Link DVI-D to DVI-D Cable 6.6' (2m) USB Type-A to USB Type-B Cable Stereo Audio Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder AdderLink X-DVI PRO DL KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder X-DVIPRO-DL-US Specs | | | Ports | Transmitter:
1 x DVI-D (Input)
1 x 3.5 mm Audio (Input)
1 x USB Type-B USB 2.0 (Input)
Receiver:
1 x DVI-D (Output)
1 x 3.5 mm Audio (Output)
4 x USB Type-A USB 2.0 (Output) | | Supported Resolutions | 2560 x 1600 @ 60 Hz | | Maximum Transmission Distance | 164' / 50 m | | | | DC Input Power | 5 VDC at 2.5 A | | Power Consumption | 12.5 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.4 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 4.7 x 3.0 x 1.0" / 120.0 x 75.0 x 26.0 mm | | Weight | 11.3 oz / 320.0 g |
