User Manual for Adder ADDERLink X-DVI PRO KVM Extender Click to enlarge the picture
Contents of the user manual for the Adder ADDERLink X-DVI PRO KVM Extender
- Product category: KVM Extenders Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Extenders
 |
User manual for the Adder ADDERLink X-DVI PRO KVM Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|

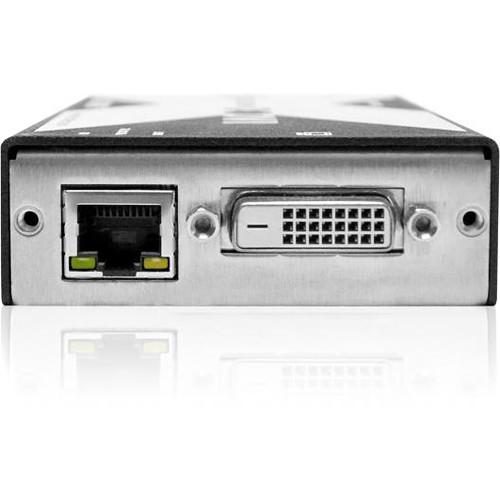

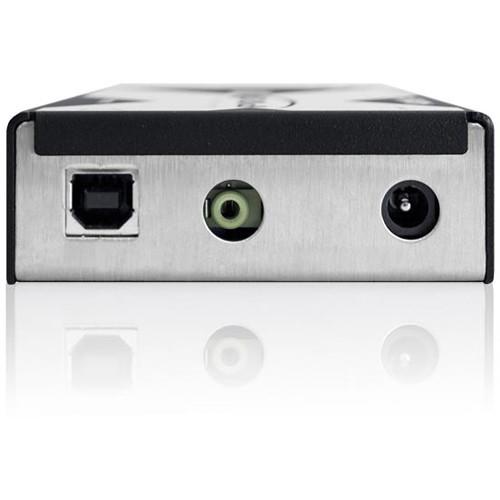

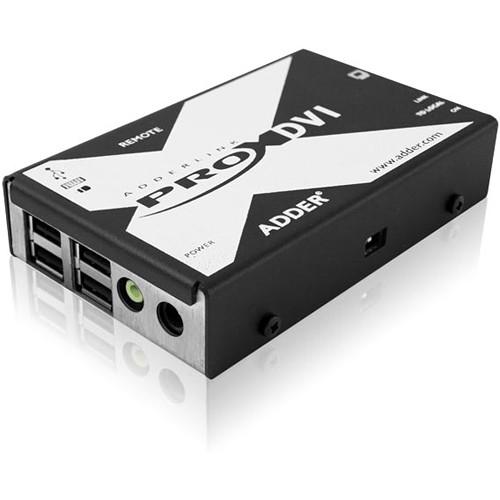

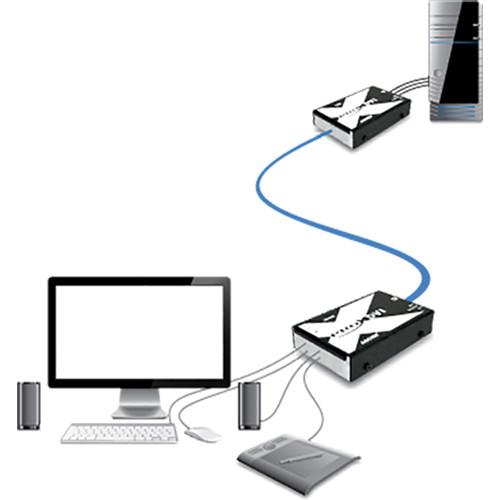

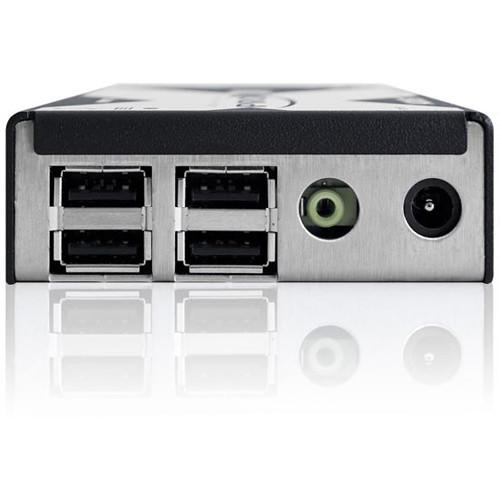

Product description The ADDERLink X-DVI PRO KVM Extender from Adder extends a system's DVI-D, USB, and audio connections up to 164' (50m) away, letting your computer stay cool, clean, and dust-free while you work in a less-than ideal environment. The X-DVI PRO comes with a transmitter unit, which plugs into your computer's DVI-D, audio, and USB ports, as well as receiver unit that offers four USB 2.0 ports, one 3.5mm audio jack, and one DVI-D port. Both units connect to each other via a CAT 7, 7a, 6a, or 5e cable. Video resolution and distance are based upon on the type of networking cable used. - Digital Video, Real-Time Control
- The X-DVI PRO extender uses an uncompressed system whereby every pixel of every frame is sent without loss. HDMI video and audio can be extended with the correct adapter cable, although HDCP and CEC are not supported.
- Single Cat X Cable
- Video, USB 2.0 (Low and Full Speed), and audio all pass along a single cable. Distance is dependent upon video resolution, the Cat X cable type, and the number of connection breaks for patch panels and wall plates. The maximums can be found below:
Cat 7: 1920 x 1200 resolution, up to 164' / 50m
Cat 6a: 1920 x 1200 resolution, up to 164' / 50m
Cat 5e: 1600 x 1200 resolution, up to 164' / 50m
Cat 7a: 1920 x 1200 resolution, up to 131.2' / 40m - USB 2.0
- USB 2.0 technology enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, and other devices. In addition, full-speed (12 Mb/s) isochronous devices, such as headsets, are supported.
- Power Efficiency
- The X-DVI PRO extender is designed to be power efficient. In fact, the transmitter unit can be powered solely from the host computer's USB connection.
- EDID Management
- The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
- Plug-and-Play
- ADDERLink X-DVI PRO extenders are delivered in a zero-config state, so you can plug them in and start working with them straight away. There's no need for drivers or software to be installed.
- Audio
- Stereo CD-quality sound (stereo channel 16-bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out. The device also supports 8 channels of HDMI audio simultaneously with analog audio.
In the Box Adder ADDERLink X-DVI PRO KVM Extender Power Adapter DVI-D to DVI-D Cable 6.6' (2m) USB Type-A to USB Type-B Cable 3.5mm Audio Cable 4 x Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink X-DVI PRO KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder X-DVIPRO-US Specs | | | Ports | Transmitter:
1 x DVI-D (Input)
1 x 3.5 mm Audio (Input)
1 x USB Type-B USB 2.0 (Input)
Receiver:
1 x DVI-D (Output)
1 x 3.5 mm Audio (Output)
4 x USB Type-A USB 2.0 | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 164' / 50 m | | Audio Channels Supported | 8-Channel Stereo (24-Bit) | | | | DC Input Power | 5 VDC at 2.5 A | | Power Consumption | 12.5 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.4 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 4.7 x 3.0 x 1.0" / 120.0 x 75.0 x 26.0 mm | | Weight | 0.7 lb / 317.5 g | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.3 x 9.7 x 5.7" |
