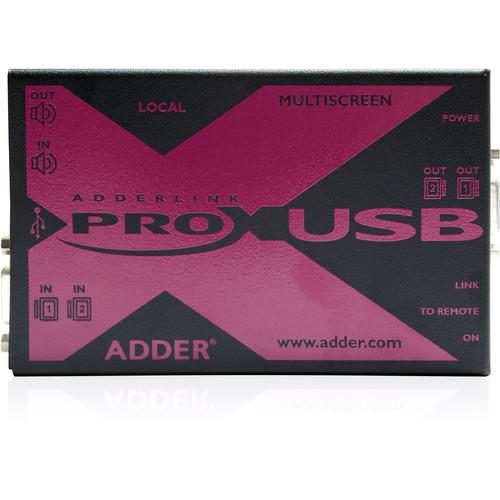

Product description The AdderLink X-USB PRO MS KVM Extender from Adder transmits audio, input, and video signals up to 984.3' away from a computer system, so you can remotely work at a different location. The X-USB Pro comes with a local module that connects to a computer's USB, audio, and two VGA ports, allowing the included remote module to support up to two VGA-enabled monitors, four USB devices, and a pair of speakers. The AdderLink X-USB PRO MS extender utilizes two optional CAT 5, 5e, 6, 7, or 7a networking cables to support 1920 x 1200 resolutions, stereo sound, as well as USB 2.0 speeds. In addition to the remote features, the local unit provides an extra set of video and audio interfaces, so you can work right next to the host computer system with a second set of monitors and speakers. - Video
- The AdderLink X-USB PRO MS delivers 1920 x 1200 resolutions via VGA up to 984.3' away. This is made possible by including a variable noise filter that overcomes issues introduced by increased gain as the length of the cable increases over 656.2'.
- Video Compensation
- A multi-pole compensation technique is used to enable sharp video quality at maximum distance over a single cable. Adjustments can be made for cable type and cable length along with color skew compensation and gain adjustment to help ensure clear images, all from the receiver's keyboard.
- Local-Feed-Through Port
- A local-feed-through port is provided for audio and video, so a local console setup can be used.
- Dual User Configuration
- Two X-USB PRO MS units can be linked to a single computer, so two users can access the system. When using two sets to access a single computer, the arbitration between users is handled by the USB sub-system of the computer. This allows both users to simultaneously control one computer by combining keyboard and mouse actions.
- Emulated 2 Page DDC EDID
- This extender supports full two page DDC EDID. Some high-performance video cards require this support to deliver optimal performance.
- USB Support
- The X-USB extends USB 1.1 and 2.0 signals, so you can have a complete computing experience remotely. The receiver unit has a built in a 4-port USB hub to support a keyboard, mouse, external hard drive, or other device plugged into your computer.
- Audio
- Audio transmission delivers CD-quality stereo audio for speakers.
- Rack Options
- Both transmitter and receiver units can be used stand-alone, or up to 8 units can be mounted into a 2U chassis.
In the Box Adder AdderLink X-USB PRO MS KVM Extender USB Type-A to Type-B Cable 2 x VGA Male-to-Male Cables 3.5mm Audio Cable 2 x Power Adapters with Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder AdderLink X-USB PRO MS KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder X-USBPRO-MS2-US Specs | | | Ports | Transmitter:
2 x HD15 VGA Female (Input)
1 x 3.5 mm Audio (Input)
1 x USB Type-B USB 2.0 (Input)
2 x HD15 VGA Female (Output)
1 x 3.5 mm Audio (Output)
2 x RJ45 Ethernet (Output)
Receiver:
4 x USB Type-A USB 2.0 (Output)
2 x HD15 VGA Female (Output)
1 x 3.5 mm Audio (Output)
2 x RJ45 Ethernet (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 984.3' / 300 m | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | | | DC Input Power | 5 VDC at 2.4 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 4.8 x 3.0 x 1.9" / 122.0 x 75.0 x 48.0 mm
6.4 x 3.0 x 1.9" / 162.0 x 75.0 x 48.0 mm (Remote) | | Weight | 1.1 lb / 0.5 kg
1.4 lb / 0.6 kg (Remote) |
