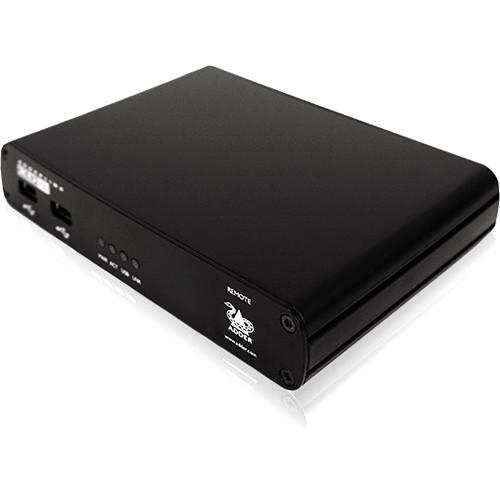

Product description Extend a system's video, audio, and USB connections up to 492' (150m) away with the ADDERLink XD150 KVM Extender from Adder. This system transfers these signals over a single networking cable, helping you reduce cable clutter over a long distance. It supports resolutions of up to 1920 x 1200 over a DVI port and offers four USB 2.0 ports for your keyboard and mouse as well as printers, storage, and other devices. Speakers and headphones are also supported with an onboard 3.5mm audio jack. For power, two external adapters are included, and each unit features a power-locking design, which helps prevent disconnects. In addition, the units come with RS232 ports, which can be used to connect other compatible adapters and peripherals. - Digital Video, Real-Time Control
- The video extension system is uncompressed, whereby every pixel of every frame is sent without loss and in real-time.
- Single CATx Cable
- Video, USB 2.0, audio, and RS232 signals all pass along a single CATx extension cable.
- Up to 492' (150m) Extension Distance
- Distance is dependent on the monitor resolution, cable type, and number of connection breaks for patch panels and wall plates. See the table on the datasheet for details.
- USB 2.0
- The USB 2.0 link supports most common USB devices such as mice, keyboards, touchscreens, graphic tablets, jog shuttles, joysticks, and mass storage devices. Isochronous devices, such as web cams and headsets, can also be used.
- Plug and Play
- Installation is straightforward, and there is no need for extra drivers or software to be installed.
- Locking Power Connectors
- Locking 3-pin DC jacks connect to the included power adapters without worrying about accidental disconnects.
- CD Quality Analog Audio
- CD-quality audio (stereo channel 16-bit sampled at 44.1 kHz) is available to transfer stereo audio from local to remote for Line Out.
- Intelligent Operation
- The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer. A KVM switch mode is also provided for improved compatibility with KVM equipment. The whole system is flash upgradeable from the computer end for future compatibility.
- RS232
- RS232 can be passed between the units to a maximum baud rate 115K2 via the options port. Adder's RC4 remote key switch is also supported.
- 19" Rack Mounting Kit
- An easy-access rack mount kit is available separately for neat mounting of two units in 1RU of rack space.
- USB Hub
- The remote unit has a built-in 4-port USB hub to enable several USB devices to be connected.
In the Box Adder ADDERLink XD150 KVM Extender 2 x Power Adapters 6.6' (2m) USB Type-A to USB Type-B Cable DVI-D to DVI-D Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink XD150 KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

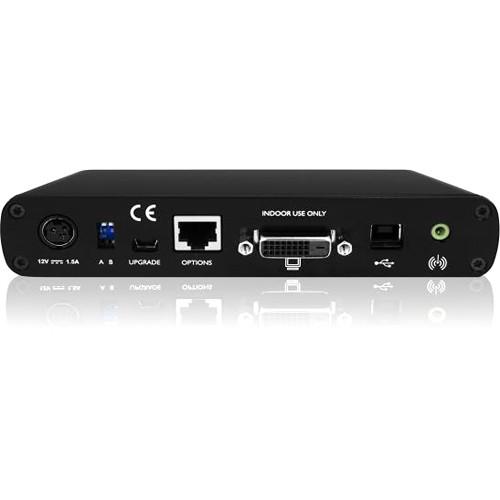

Technical parametersAdder XD150-US Specs | | | Ports | Receiver:
1 x DVI (Output)
1 x 3.5 mm Audio (Output)
1 x RJ45 RS232 (Output)
4 x USB Type-A USB 2.0 (Output)
Transmitter:
1 x DVI (Input)
1 x 3.5 mm Audio (Input)
1 x RS232 (Input)
1 x USB Type-B USB 2.0 (Input)
1 x Mini-USB (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 492.1' / 150 m | | | | DC Input Power | 12 VDC at 1.5 A | | Power Consumption | 18 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.4 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 6.7 x 1.2 x 4.7" / 169.0 x 31.0 x 120.0 mm | | Weight | 1.3 lb / 0.6 kg |
